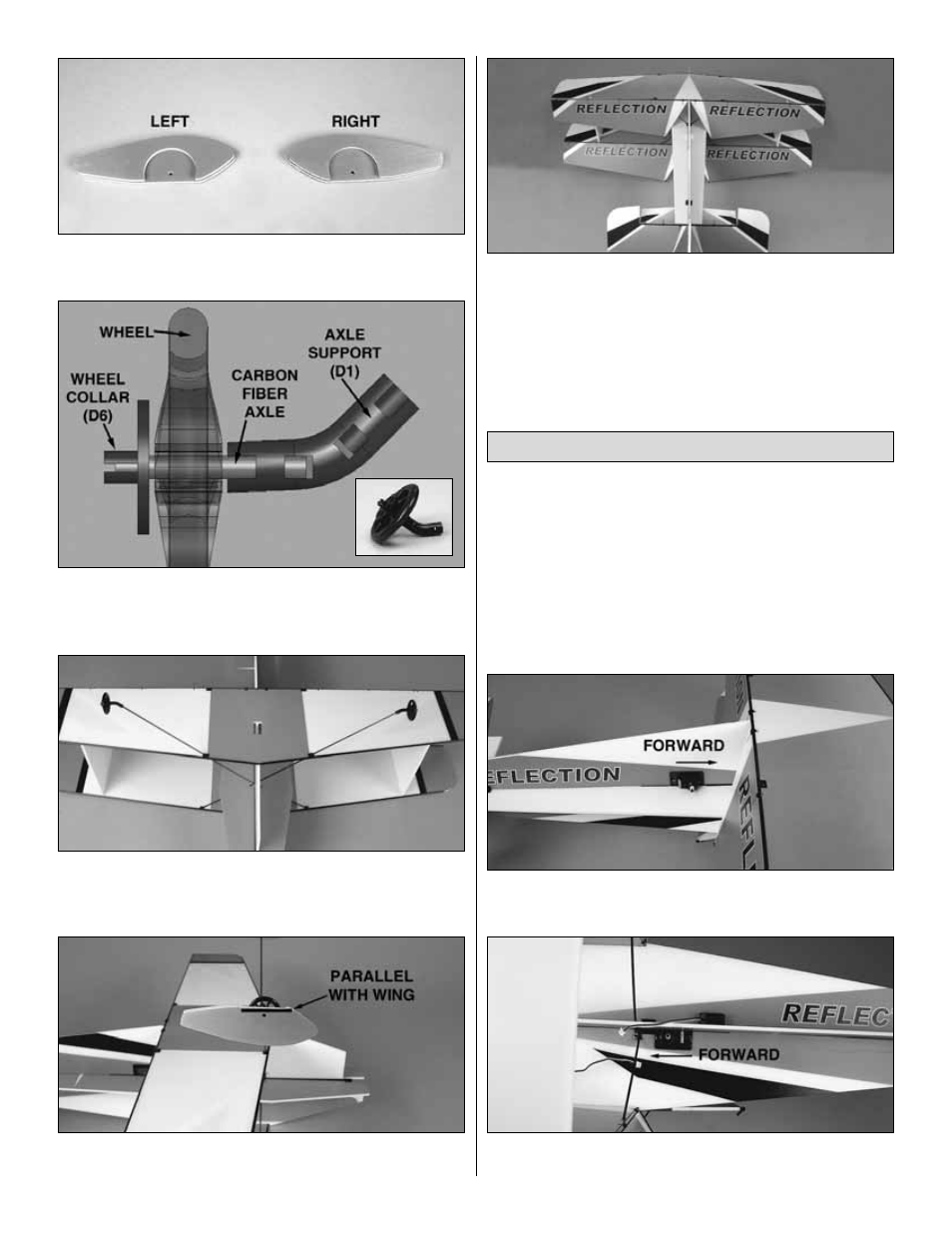

6. Glue the inner wheel pants to the outer wheel pants.
Make sure to make one left and one right wheel pant.
❏
7. Assemble the axle supports (D1), axles, wheels, and
wheel collars (D6) to make two landing gear assemblies.
Secure the wheel collar and axle support with a drop of glue.
❏
8. Slide the landing gear assemblies onto the landing
gear legs. Align the wheels with the centerline, and secure
the axle supports with a drop of glue.
❏
9. Glue the wheel pants to the wheel collars, keeping the
bottom of the wheel pants aligned with the bottom of the wing.
❏
10. Snap the ailerons onto the wing TE.
❏
1. Remove the stock servo arms from all three of the servos.
❏
2. Refer to the parts layout diagram in the front of the
manual and select the correct spline size for the servos you
will be using. There are three sizes to choose from:
Servo Arm A Hitec HS-55, Hitec HS-50, Futaba 3108M
Servo Arm B Futaba S3103, Airtronics 94091
Servo Arm C JR 241
❏
3. Glue the rudder servo into the rear servo mount in the
right side of the fuselage. The output shaft should be forward.
❏
4. Glue the elevator servo into the front servo mount in the
left side of the fuselage. The output shaft should be forward.
Radio Setup
13
