5
IMPORTANT BUILDING NOTES
•

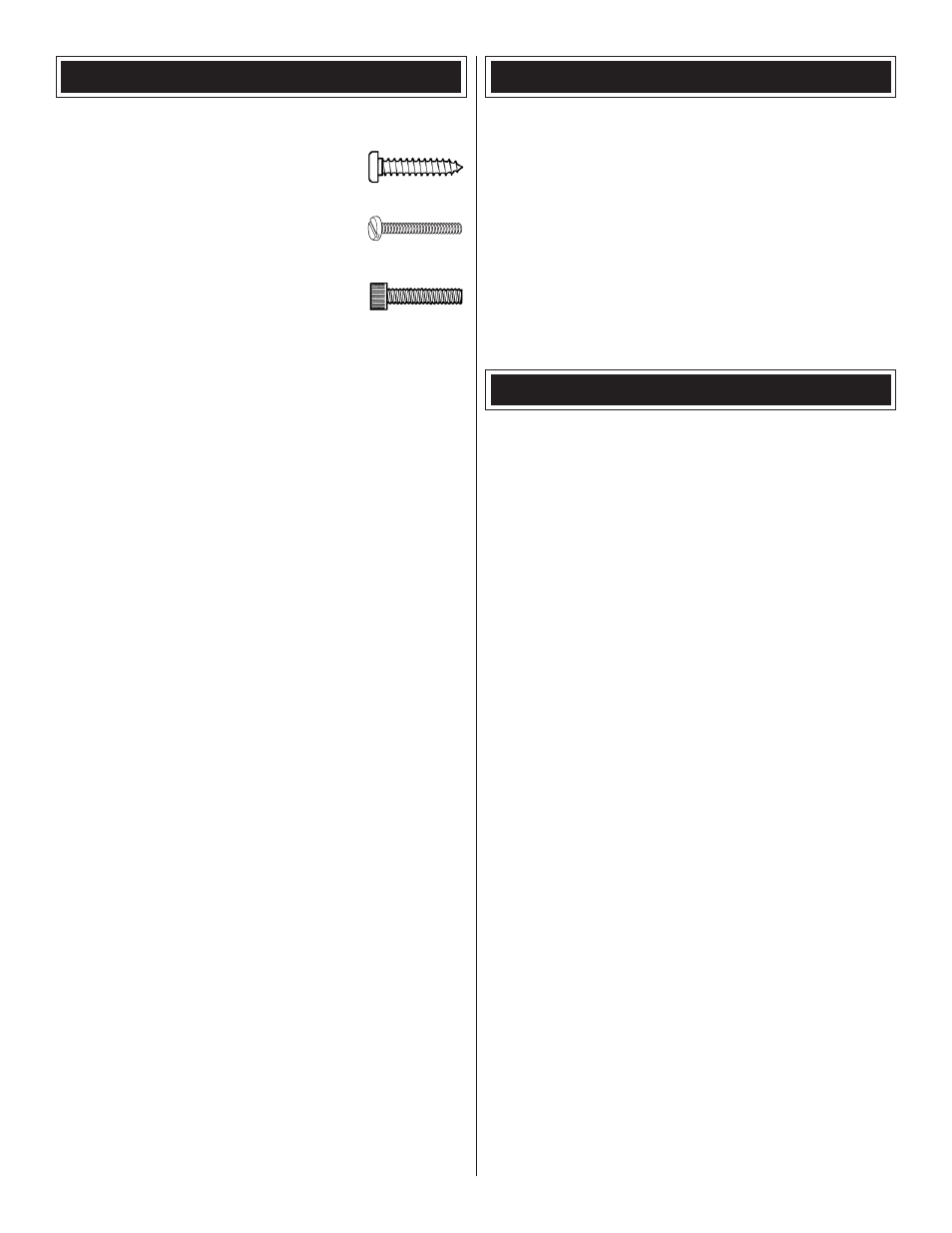

There are several types of screws used in this kit:
Self-tapping or sheet metal screws
are designated by a number and a
length . For example, #6 x 3/4" [19mm] .
Machine screws are designated by a
number, threads per inch, and a length .
For example, 4-40 x 3/4" [19mm] .
Socket Head Cap Screws (SHCS) are
designated by a number, threads per
inch, and a length . For example, 4-40 x
3/4" [19mm]
•
When you see the term test fit in the instructions, it means
that you should first position the part on the assembly
without using any glue . Then, slightly modify or custom
fit the part as necessary for the best fit .
•
Whenever the term glue is written you should rely upon
your experience to decide what type of glue to use . When
a specific type of adhesive works best for that step, the
instructions will make a recommendation .
•
Whenever just epoxy is specified you may use either
30-minute (or 45-minute) epoxy or 6-minute epoxy . When
30-minute epoxy is specified it is highly recommended that
you use only 30-minute (or 45-minute) epoxy, because you
will need the working time and/or the additional strength .
•
Photos and sketches are placed before the step they
refer to . Frequently you can study photos in following steps
to get another view of the same parts .
•
The Great Planes Giant Matt Chapman Eagle 580 is
factory-covered with Top Flite MonoKote film . Should
repairs ever be required, MonoKote can be patched with
additional MonoKote purchased separately . MonoKote is
packaged in six-foot rolls, but some hobby shops also sell
it by the foot . If only a small piece of MonoKote is needed
for a minor patch, perhaps a fellow modeler would give
you some . MonoKote is applied with a model airplane
covering iron, but in an emergency a regular iron could
be used . A roll of MonoKote includes full instructions for
application . Following are the colors used on this model
and order numbers for six foot rolls .
Cub Yellow TOPQ0220
Sapphire Blue TOPQ0227
Missile Red TOPQ0201
Orange TOPQ0202
Black TOPQ0208
•
The stabilizer and wing incidences and engine thrust
angles have been factory-built into this model . However,
some technically-minded modelers may wish to check
these measurements anyway . To view this information
visit the web site at www .greatplanes .com and click on
“Technical Data .” Due to manufacturing tolerances which
will have little or no effect on the way your model will fly,
please expect slight deviations between your model and
the published values .
KIT INSPECTION
Before starting to build, take an inventory of this kit to make
sure it is complete and inspect the parts to make sure they
are of acceptable quality . If any parts are missing or are not of
acceptable quality, or if you need assistance with assembly,
contact
Product Support . When reporting defective or
missing parts, use the part names exactly as they are written
in the Kit Contents list .
Great Planes Product Support (217) 398-8970, ext . 5
3002 N Apollo Drive, Suite 1 Fax: (217) 398-7721
Champaign, IL 61822
E-mail: airsupport@greatplanes .com
ORDERING REPLACEMENT PARTS
Replacement parts for the Great Planes Giant Matt Chapman
Eagle 580 ARF are available using the order numbers in
the
Replacement Parts List that follows . The fastest, most
economical service can be provided by your hobby dealer or
mail-order company .
To locate a hobby dealer, visit the Great Planes web site
at www .greatplanes .com . Choose “Where to Buy” from the
menu on the left side of the page . Follow the instructions
provided on the page to locate a U .S ., Canadian or
International dealer .
Parts may also be ordered directly from Hobby Services by
calling (217) 398-0007, or via facsimile at (217) 398-7721,
but full retail prices and shipping and handling charges will
apply . Illinois and Nevada residents will also be charged
sales tax . If ordering via fax, include a Visa® or MasterCard®
number and expiration date for payment .
Mail parts orders Hobby Services
and payments by 3002 N Apollo Drive, Suite 1
personal check to: Champaign IL 61822
Be certain to specify the order number exactly as listed in the
Replacement Parts List . Payment by credit card or personal
check only; no C .O .D .
If additional assistance is required for any reason contact
Product Support by e-mail at productsupport@greatplanes .
com, or by telephone at (217) 398-8970 .
Giant Eagle 580 ARF Replacement Parts List
GPMA3355 Fuselage GPMA3362 Decals
GPMA3356 Wing Set GPMA3363 Wing Tube
GPMA3357 Hor . Stab . Set GPMA3364 Stabilizer Tubes
GPMA3358 Rudder
GPMA3365 Hatch/Canopy
GPMA3359 Cowl GPMA3367 Pilot
GPMA3360 Landing Gear GPMA3368 Fuel Tank
GPMA3361 Wheelpants
