Great Planes Matt Chapman Eagle 580 ARF 1/3 Scale - GPMA1286 - Manual (Page 12)

12

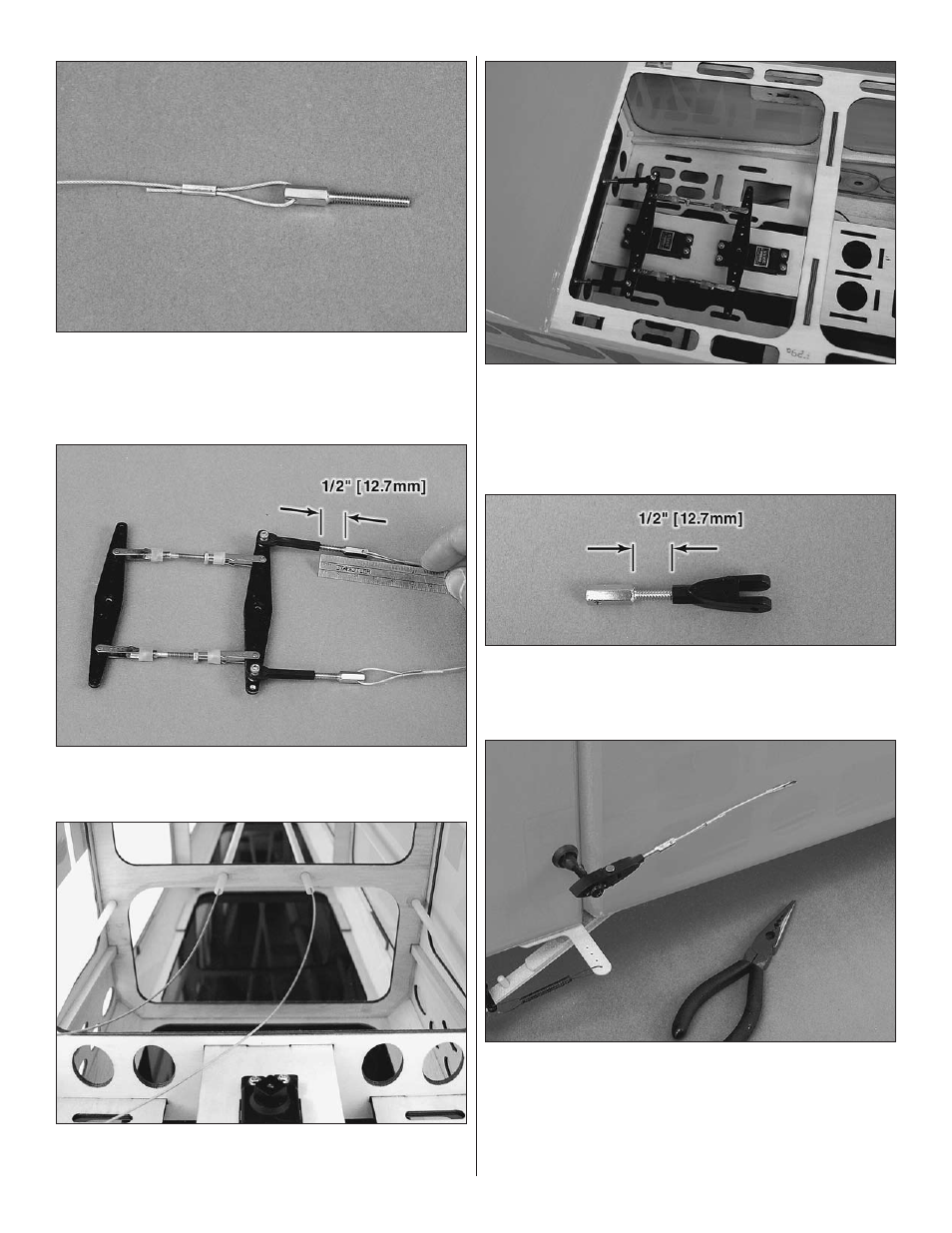

o 6 . Cut the supplied steel pull-pull cable in half . Swage a
threaded coupler to one side of each of the two cables . Note:
The swage must be crimped tightly! Inspect each swage for
cracks and to assure tightness .
o 7 . Thread the couplers into the nylon clevises so that at
least 1/2" [12 .7mm] of thread is still showing .
o 8 . Route the cables through the guide tubes .
o 9 . Turn on your radio and fit the servo arms to the rudder
servos . Make adjustments using your radio or a servo
synchronizer to balance the two servos . Make sure that you
have not twisted the cables and that they slide freely through
the tubes . Install the servo arm screws using threadlocker .
o 10 . Install a threaded coupler onto each standard
thread control horn pivot . Screw them in so that at least 1/2"
[12 .7mm] of thread is still showing .
o 11 . Temporarily fit the control horn pivots to the control
horns . Do not install the cotter pin until after you have
adjusted and tensioned both cables . With your radio still
on and your rudder servos centered, fit both cables to the
couplers and center the rudder . When you’re satisfied, swage
the cables to the couplers . Trim the excess cable .
