20

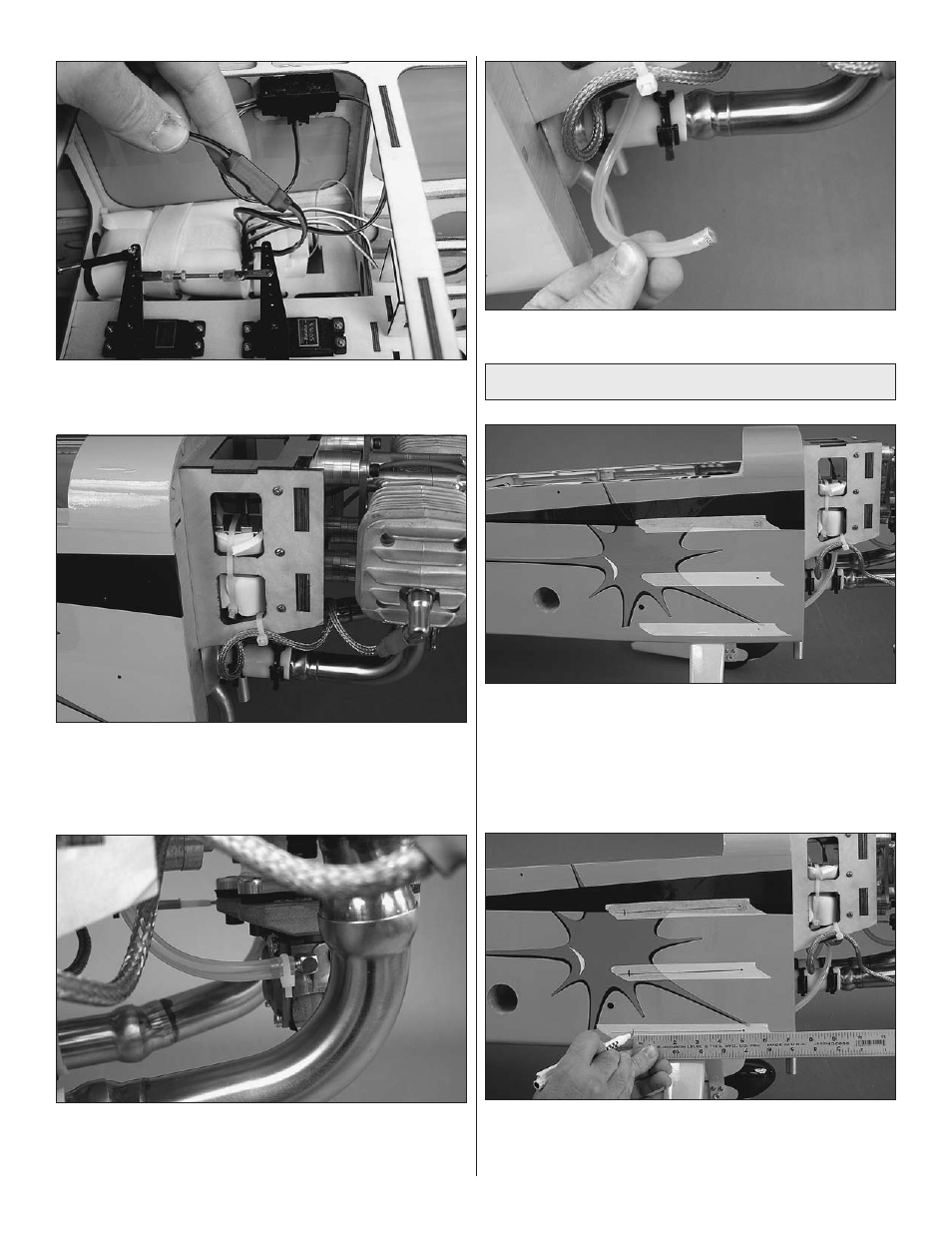

o 4 . Secure your battery leads with 3/8" [9 .5mm] heat
shrink tubing .
o 5 . Install your ignition module away from any radio
equipment . Secure the electrical connections with heat
shrink tubing . Make sure that the spark plug leads will not
chafe by supporting them with plastic cable ties .
o 6 . Route your vent and fill lines out the bottom of the fuse .
Connect the feed line to the carburetor and secure it with a
small cable tie .
o 7 . Install the fill line plug .
Mount the Cowl
o 1 . Apply a 6" [152mm] piece of masking tape over each
of the six pre-installed blind nuts for the cowl . Each piece
of tape should extend straight back and be parallel with the
top edge of the fuse . Use cardstock or a manila envelope
to make templates for your mufflers or cylinder head if
necessary . Tape the templates in place on the fuse .
o 2 . Draw a straight line from the center of the blind nut
hole back about 5" [127mm] . Make a mark at the hole and
5" [127mm] back .
