Great Planes Matt Chapman CAP 580 Giant ARF - GPMA1285 - Manual (Page 6)

6
9
2
1
3
7
8
6
4
12
13
11
10
5
1 Cowl
2 Fuselage
3 Canopy/Hatch
4 Aluminum Spinner
5 Main Gear
6 Wheels
7 Wheel Pants 8 Instrument Panel
9 Stab and Elevators
10 Stab Tubes
11 Rudder
12 Wings and Ailerons
13 Wing Tube

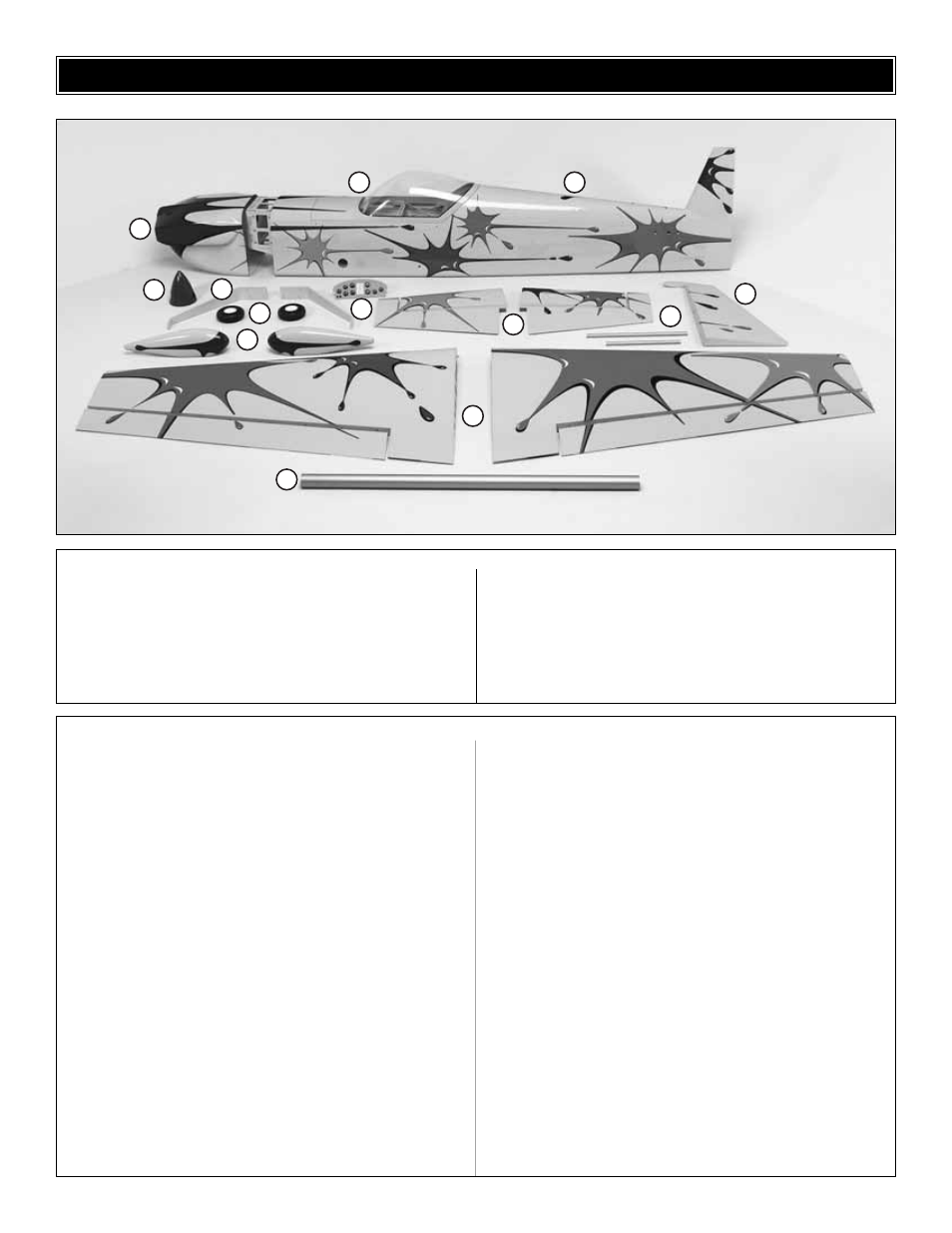

Kit Contents (Photographed)
Brass Quick Connect Body (2)
4-40 Threaded Steel Cevis (4)
Axles (2)
4-40 Blind Nut (8)
8-32 Blind Nut (18)
Nuts for Axles (2)
1/4-20 Blind Nuts (6)
4-40 Lock Nut (8)
Nylon Clevis (1)
Nylon Retainer (2)
36" Flexible Pushrod Tube (2)
36" Inner Flexible Pushrod Tube (2)
Retainers (5)
6/32 x 1/4" Socket Head Cap Screws (4)
#4 x 5/8" Wood Screw (8)
4-40 Set Screw (2)
8-32 x 3/4" Socket Head Cap Screws (18)
4-40 x 1/2" Socket Head Cap Screws (8)
4-40 x 3/4" Socket Head Cap Screws (2)
1/4" Flat Washers (4)
3/16" Wheel Collars (4)
2-56 x 4" Wire Threaded One End (4)
4-40 x 12" Fully Threaded Rod (1) #4 Lock Washer (14)
#4 Flat Washer (14)
#8 Lock Washer (18)
#8 Flat Washer (18)
1-1/2" Tailwheel (1)
1/4" x 2-1/2" Hex Bolt (4)
1/4" Lock Washer (4)
Antirotation Dowels for the Wing (4)
Engine Spacers, 6mm Thick, Aluminum (20)
Fuel Tank (1)
Pilot (1)
Pin Hinges (33)
Servo Tray (1)
Stab Tube Aft (1)
Stab Tube Front (1)
Decal Sheet (2)
Tail Gear Assembly (1)
Ball Link Set (8)
Control Horn Set (8)
Pushrods 2-1/2" (6)
Pushrods 4-1/2" (2)
Servo Arm Set (1)
Kit Contents (Not Photographed)
KIT CONTENTS
