Great Planes Matt Chapman CAP 580 Giant ARF - GPMA1285 - Manual (Page 16)

❏

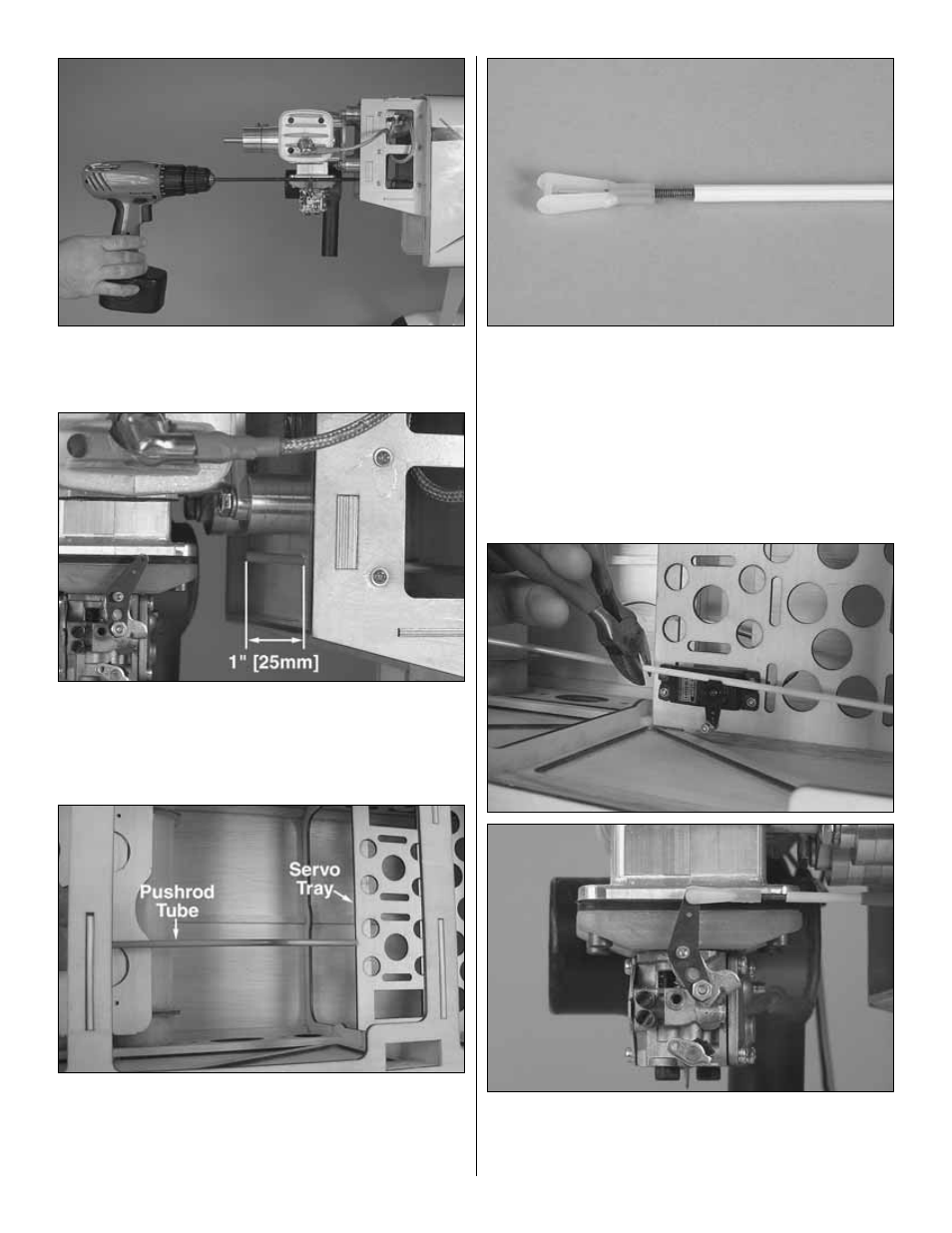

1. Drill a 3/16" [4.8mm] hole through the firewall and
second former aligned with the throttle arm on engine.
❏
2. Glue a grey 3/16" x 36" [4.8 x 914mm] plastic pushrod
tube to the holes in the firewall and second former,
leaving approximately 1" [25mm] protruding from the front of
the firewall.
❏
3. Cut the end of the pushrod tube even with the front of
the servo tray.
❏
4. Mount your throttle servo in the tray.
❏
5. Cut a 1" [25mm] threaded section from one of the
2-56 x 4" [102mm] pushrods. Attach the nylon clevis to the
white plastic pushrod using the threaded section.
❏
6. Slide the white plastic pushrod through the pushrod
tube and attach the clevis to the throttle arm. Cut the other
end flush with the servo end of the grey pushrod tube. Screw
a 2-56 x 4" [102mm] pushrod into the white pushrod tube.
16
