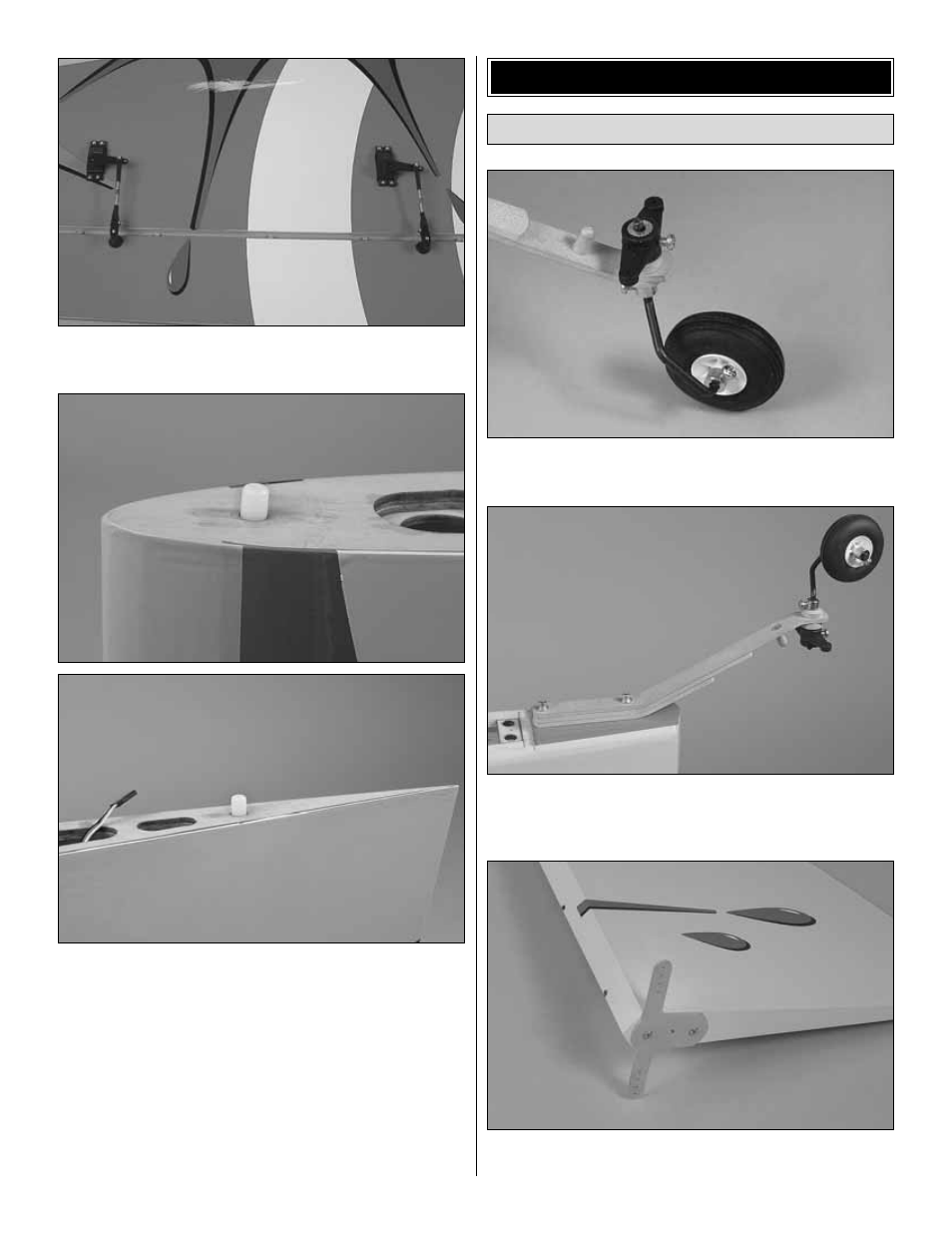

5. Mount the control horns and servo arms following
the same steps used with the stab.
❏ ❏
6. Glue the white nylon anti-rotation dowels in the
wing with epoxy.
❏
7. Repeat steps 1-6 for the other wing.
❏
1. Grind flat spots on the tail gear wire for the set screws.
Assemble the tail gear as shown in the photo with threadlocker.
❏
2. Remove the covering for the tail gear mounting bolts.
Attach the tail gear with threadlocker, 4-40 x 3/4" [19mm]
SHCS, #4 flat washer and #4 lock washer.
❏
3. Attach the tail gear steering arm to the bottom of the
rudder with two #4 x 5/8" wood screws.
Install the Tail Gear
ASSEMBLE THE FUSE
12
