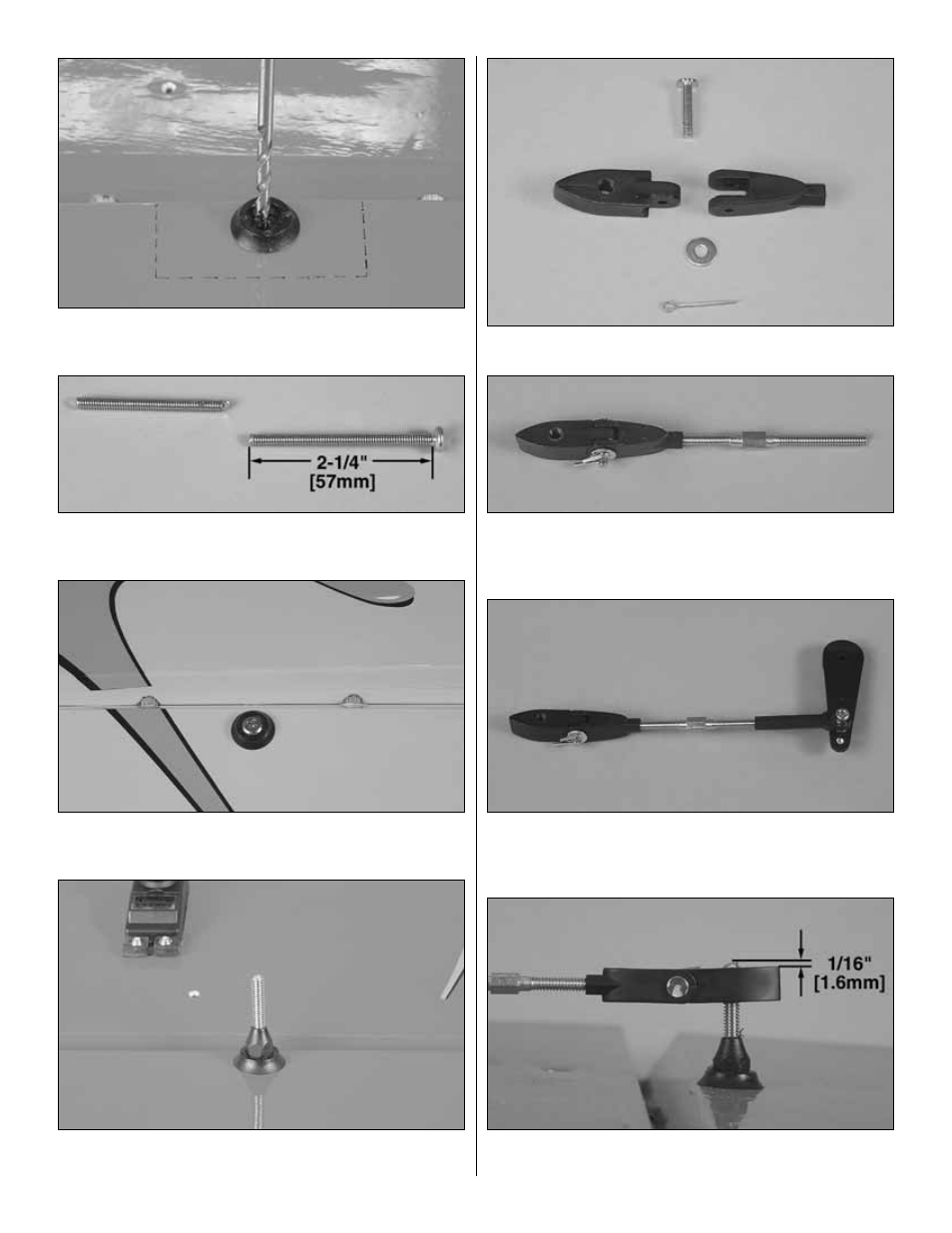

4. Drill a 9/64" [3.6 mm] hole through the elevator
centered on the pivot washer.
❏ ❏
5. Cut the 4" [100mm] control horn bolt to a length of
2-1/4" [57mm].
❏ ❏
6. Place a pivot washer on the control horn bolt. Screw
the control horn bolt through the top of the elevator.
❏ ❏
7. Screw the nylon nut and pivot washer onto the
control horn bolt.
❏ ❏
8. Assemble the control horn parts as shown.
❏ ❏
9. Screw the reverse threaded end of the 2-1/2"
[65mm] pushrod 15 full turns into the control horn. (To tighten,
turn counterclockwise.)
❏ ❏
10. Screw the “normal” threaded end of the pushrod
15 turns into the ball link that is connected to one of the
single-sided servo arms.
❏ ❏
11. Screw the control horn onto the control horn bolt,
leaving 1/16" [1.6mm] extending from the top of the control horn.
