Great Planes Escapade EP/GP ARF - GPMA1200 User Manual
Page 19
19

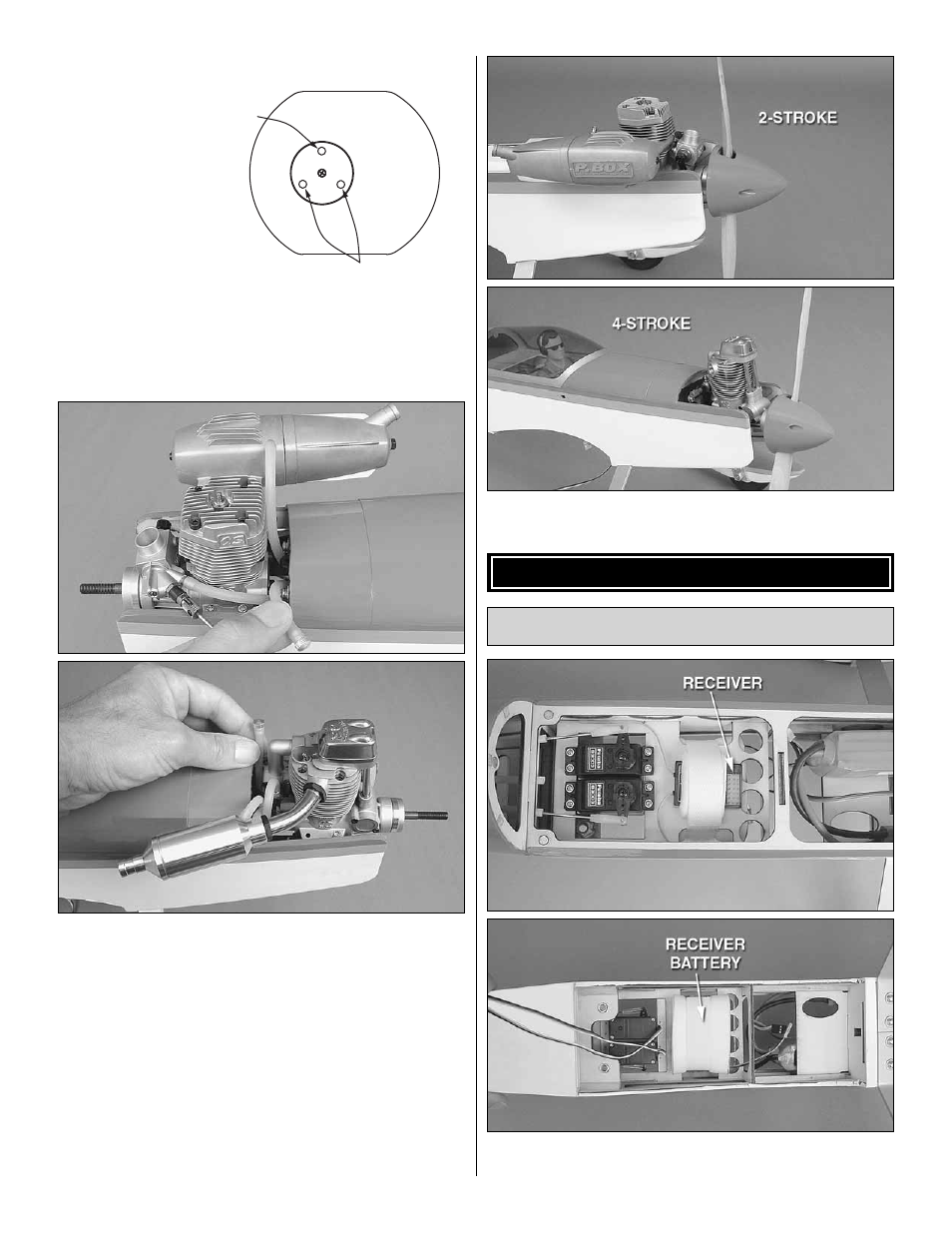

VENT/OVERFLOW
(CONNECT TO
FITTING ON MUFFLER)
ONE LINE IS FOR FUELING/DEFUELING
AND THE OTHER LINE GOES TO THE
CARBURETOR (IT DOESN’T MATTER
WHICH LINE GOES WHERE BECAUSE
THEY ARE BOTH THE SAME INSIDE
THE FUEL TANK).
❏
6. Mount the muffl er to your engine and connect the fuel
lines to the fuel tank as shown in the diagram. Note that the
O.S.
®
FL .70 has two fuel fi ttings on the muffl er. The fi tting
with the larger hole goes to the vent line on the fuel tank and
the other fi tting with the smaller hole goes to the crankcase
vent in the backplate of the engine. The line with the fuel line
plug goes to either of the “clunk” lines on the fuel tank that
will be used for fueling and defueling the tank.
❏
7. Mount a balanced propeller and the spinner included
with this kit.
FINAL ASSEMBLY
Final Radio Installation
❏
1. Wrap both the Rx battery and the receiver in 1/4" [6mm]
R/C foam rubber using tape to hold the halves together.
