5

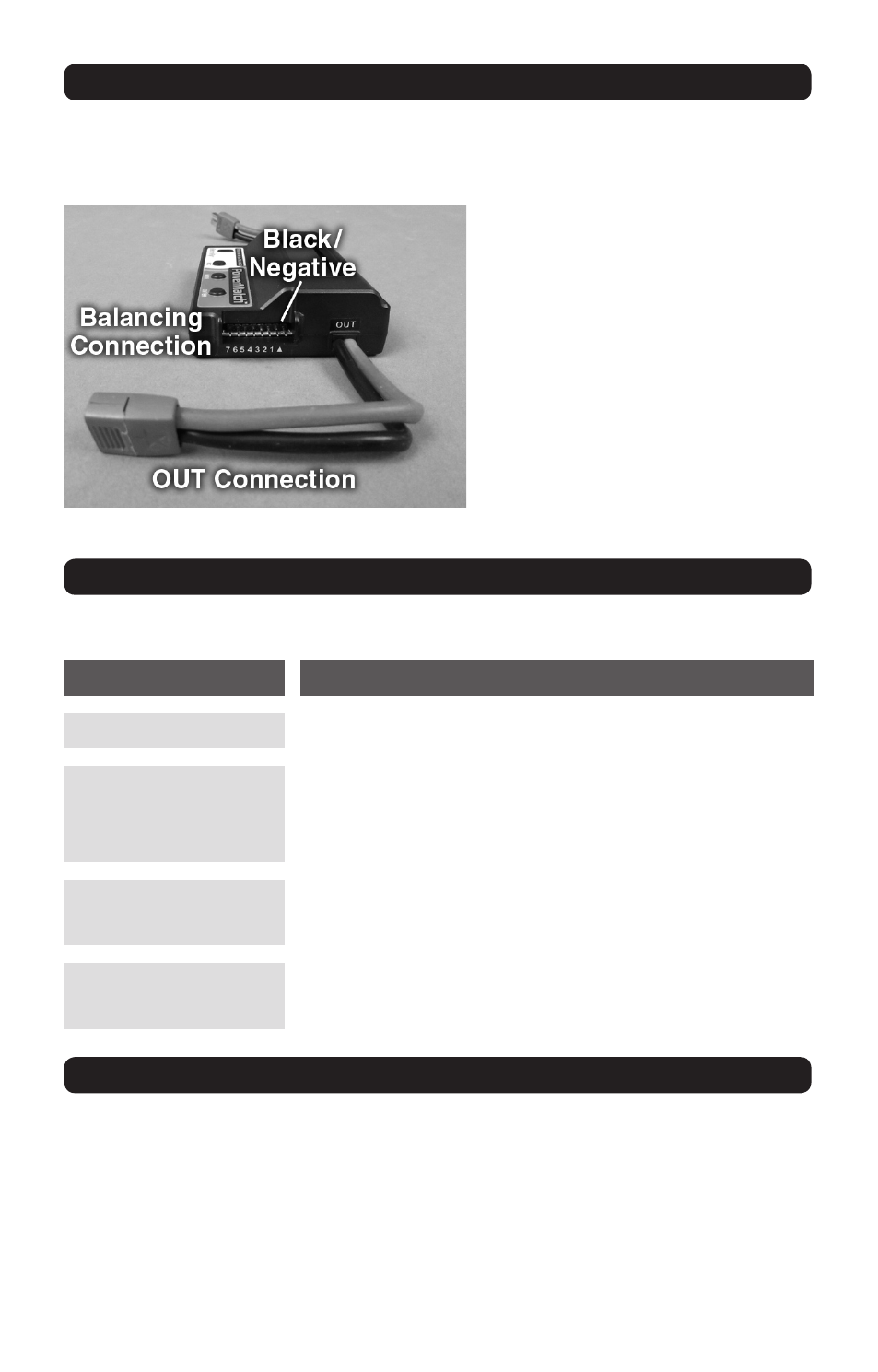

O U T P U T a n d B A L A N C I N G C O N N E C T I O N S
The OUT connection is located on the right side of the meter, and
includes a Star Plug female connector.
A balancing connection is
located on the right side of
the meter, capable of han-
dling 2S-7S lithium batter-
ies. Terminal spacings are
compatible with ElectriFly
style balancing plugs. An
adapter is included for con-
nection of FlightPower
® and
Thunder Power™ battery
balancing plugs.
M E N U S T R U C T U R E
The PowerMatch meter has four different operational modes:
BATTERY CHECKER Shows the present status of the battery.
CELL BALANCER
Determines how well cells in a lithium battery
are balanced, and balancing can be initiated
through this mode.
POWER CHECKER
For measuring and storing various types of
data measured under loaded conditions.
USER SETTING
For setting low voltage detection level
for lithium batteries.
MODE OPERATION
BATTERY CHECKER MODE – LiPo, LiFe, Li-Ion BATTERIES
This mode is used to measure the present status of a lithium
battery, showing the number of cells in the battery, static battery
voltage, capacity remaining, highest cell voltage, lowest cell
voltage, gap in voltage between the highest and lowest cell, and
individual cell voltages.
