For Customer Service, contact the place of purchase to arrange for replacement parts.

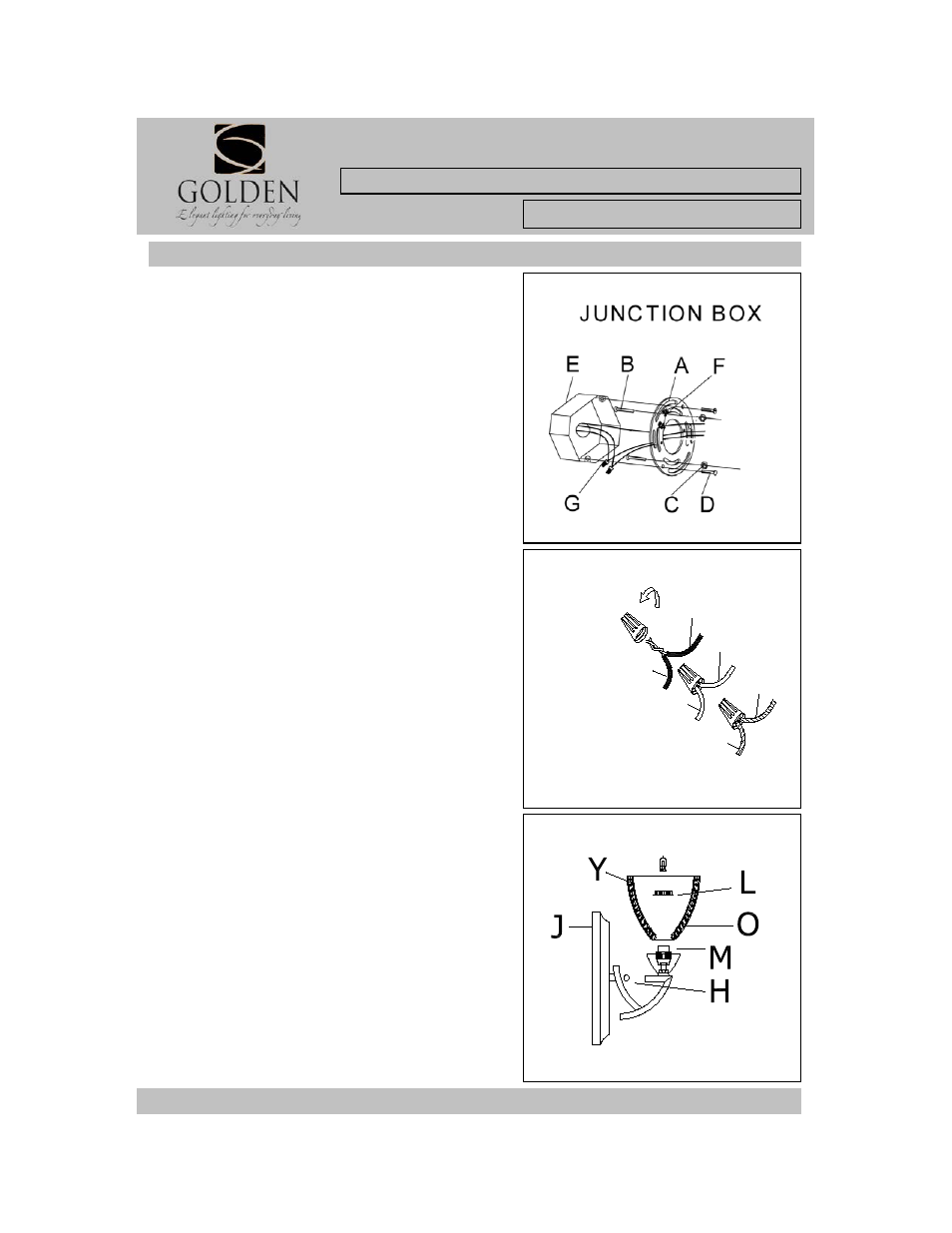

HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the
carton and the yellow bag that holes all your
parts. Check that all parts are included as
shown in the illustration and parts list.
2. Shut off power at the circuit breaker and
remove the old fixture from wall, including
the old mounting strap.
3. The Mounting Strap(A) contains several
pairs of threaded holes, find the pair of
holes that match the holes spacing in your
fixture Back Plate (K) and thread the two
Mounting Screws(B) half way into the Mounting
Strap(A).
4 Place the Mounting Strap (A) over the
Fig. 1
CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the
fixture lead wires by connecting BLACK to
BLACK (or SMOOTH) and WHITE to WHITE (or
RIBBED).
6. Attach the GROUND wire(GREEN or COPPER)
from the Junction Box and the fixture Ground
wire to the green Ground Screw on the
Mounting Bracket (A) or connect both wires
together using the correct size of wire
connectors.
NOTE:Twist the wires together in the same
direction you twist the wire connector onto
the wires.
Fig. 2
INSTALLATION INSTRUCTIONS
Fixture Name: Asteria 7509-BA1 PW
For Wall Mount Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
FINISHING THE INSTALLATION (Fig.3)
9. Place the fixture Back Plate (J), over the
Mounting screws(B), so they protrude through
the holes in the Back Plate (J).
10. Thread the Deco Nuts (H) onto the Mounting
Screws (B) and continue turning until the Back
Plate (J) is snug against the wall.
11. Install glass as per the fixture assembly
instructions
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE
FIXTURE.
Fig. 3
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3. Mounting Strap (A) contains several pairs of threaded
holes. Find the pair of holes that matches the holes spacing
in fixture Back Plate (K) and thread the Mounting Screws (B)
half way into Mounting Strap (A).
4. Place Mounting Strap (A) over Junction Box (E) so that
Mounting Screws (B) are vertical or horizontal, as required
by fixture type.
5. Attach Mounting Strap (A) to Junction Box (E) by using
two mounting screws (D). Tighten the screws securely.
CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
6. Attach the GROUND wire (GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green
Ground Screw on Mounting Bracket (A) or connect both
wires together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
7. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION (Fig. 3)
9. Place fixture Back Plate (J), over Mounting Screws (B), so
they protrude through the holes in Back Plate (J).
10. Thread Deco Nuts (H) onto Mounting Screws (B) and
continue turning until Back Plate (J) is snug against the wall.
11. Install glass as per the fixture assembly instructions
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE
FIXTURE.
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
