Golden Lighting 7509-BA1 PW User Manual
Parts & assembly sheet, Parts list
Mounting strap
Mounting Screw
Mounting screw
1ea 3"X4"
2ea 8/32"X28mm
2ea 8/32X1"
Wire connnector
Hex Nut
Deco nut
(round
nut)
3ea P3 Orange
2ea 8/32"X3.5mm
2ea 9X9.5mm
Green Ground
screw
Bulb
1ea 8/32"X10mm
1ea G9*40W
Part Needed
Quantity
Part Needed
Quantity
Reason why
( missing, scratched, broken glass, bent, bad finish)
Comments

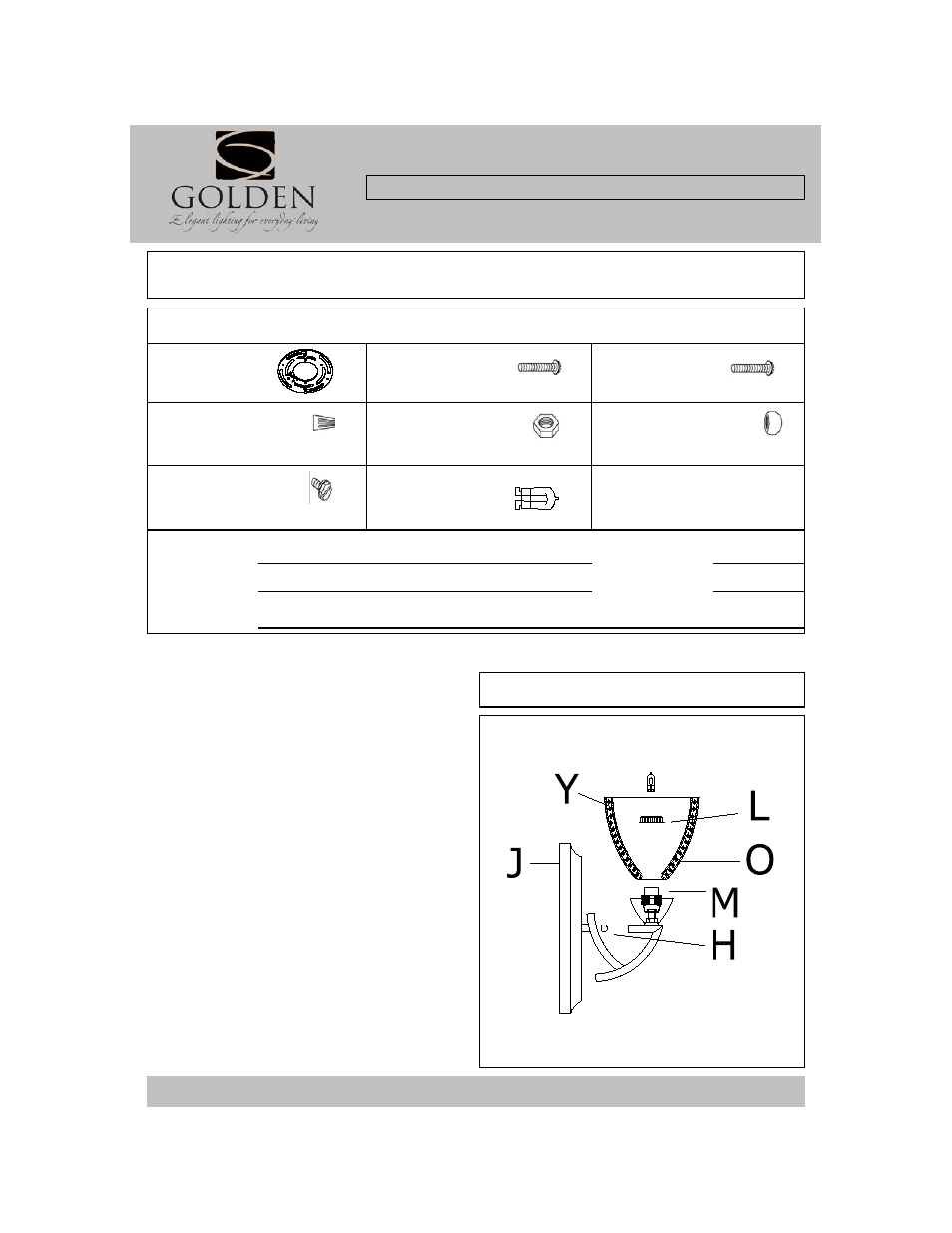

PARTS & ASSEMBLY SHEET
Fixture Name: Asteria 7509-BA1 PW
This fixture assembled PO:__________ Date: ________
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.
1.Pour Crystals (Y) into the groove of Glass Shade
(O). Then, gently slide Glass Shade (O) over the
socket and secure Glass Shade (O) by threading
Socket Ring (L) over the socket.
2. Install the provided light bulb in accordance with
the fixture's specifications. Bulb note: Use a tissue or
paper towel to hold the bulb and push down into the
socket. Oils or dirt can cause the bulb life to shorten.
Rubbing alcohol is recommended to clean the bulbs if
dirty.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
NOTE: I
NSTALL THE GLASS ASSEMBLY AFTER
THE FIXTURE IS HUNG.
For Customer Service, contact the place of purchase to arrange for replacement parts.
PARTS LIST
Fig. 4
Company Name:_______________________Co. Account #:_____________
below to be filled out by retailer
F
IXTURE
A
SSEMBLY
I
NSTRUCTIONS
Read and review installation instruction sheet before
assembling the fixture.
7509-BA1 PW
