Fig. 3
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig. 1
Fig. 2

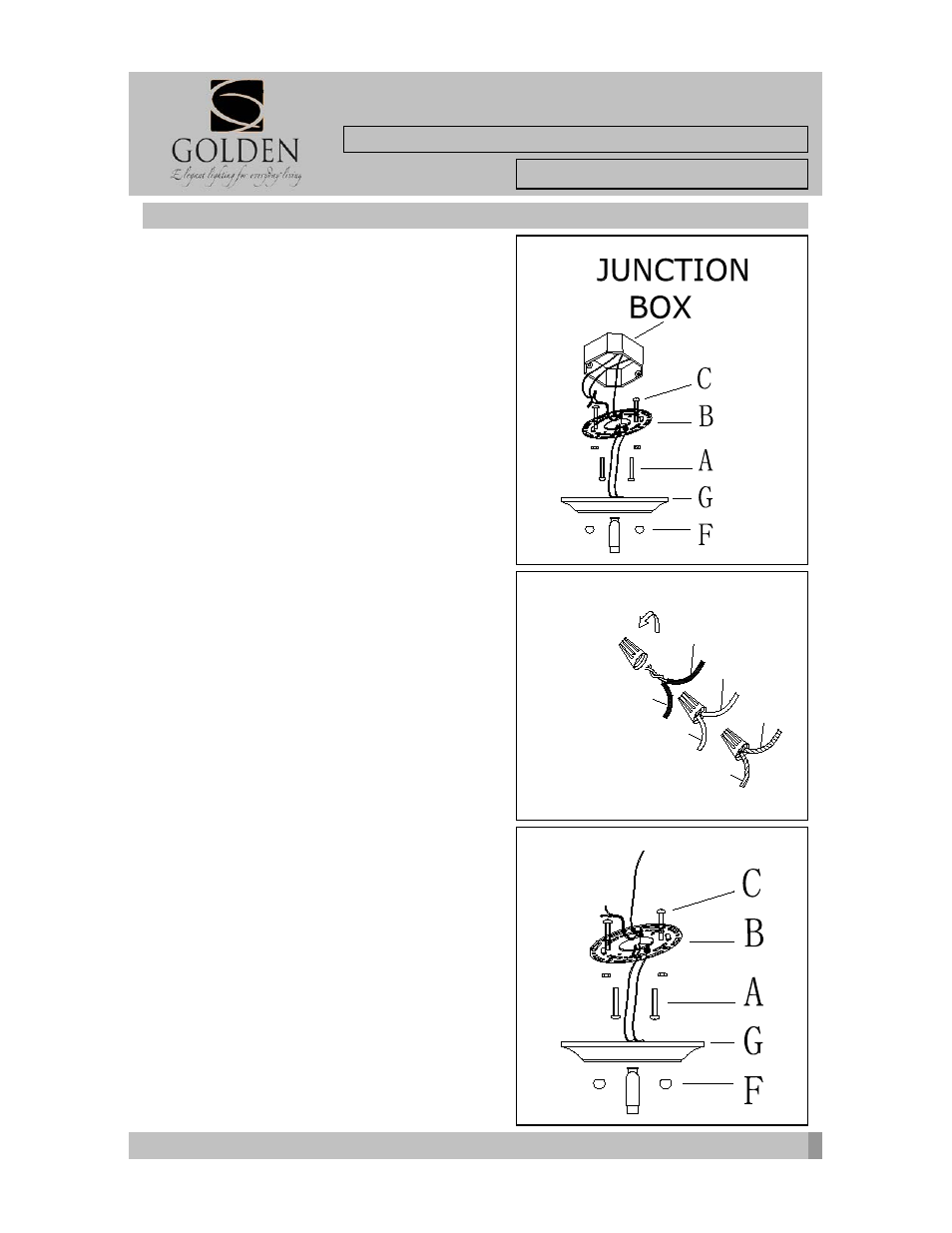

INSTALLATION INSTRUCTIONS
Fixture Name: Asteria 7509-M1L PW
For Pendant Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and
the yellow bag that holds all your parts. Check that all
parts are included as shown in the illustration and parts
list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3. Mounting Strap (A) contains several pairs of threaded
holes, find the pair of holes that matches the holes
spacing in your fixture Canopy (G) and thread Mounting
Screws (B) into the Mounting Strap (A). Secure with Hex
nuts (C). These will have their threaded ends protrude
through the two holes in the fixture canopy.
4. Place Mounting Strap (A) over the Junction Box (E) so
the Mounting Screws (B) are vertical or horizontal, as
required by fixture type.
5. Attach Mounting Strap (A) to Junction Box (E) by using
the two Mounting Screws (B). Tighten the screws
securely.
CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the fixture lead wires
by connecting BLACK to BLACK (or SMOOTH) and
WHITE to WHITE (or RIBBED).
6. Attach the GROUND wire (GREEN or COPPER) from
the junction box and the fixture Ground wire to the green
Ground Screw on the Mounting Bracket (A) or connect
both wires together using the correct size of wire
connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
7. Tuck these wire connections neatly into the junction
box.
FINISHING THE INSTALLATION (Fig. 3)
9. Place Canopy (G), over Mounting screws (B), so they
protrude through the holes in Canopy (G).
10. Thread Deco Nuts (F) onto Mounting Screws (B) and
continue turning until Canopy (G) is snug against the
ceiling.
11. Install glass shades as per the fixture assembly
instructions.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND TEST
THE FIXTURE.
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
