Golden Lighting 7509-M1L PW User Manual
Parts & assembly sheet, Parts list

1ea ∅5-1/2"*H1"
2ea 8#32-IP*1"
3ea P3 Orange
2ea 5/32-IP*1-3/5"
2ea 5/32-IP*H3mm
3ea ∅11.7*H12"
1ea ∅11.7*H6"
1ea G9*40W
2ea 5/32-IP*H10mm
Part Needed
Quantity
Part Needed
Quantity
Reason why
( missing, scratched, broken glass, bent, bad finish)
Comments
For Customer Service, contact the place of purchase to arrange for replacement parts.

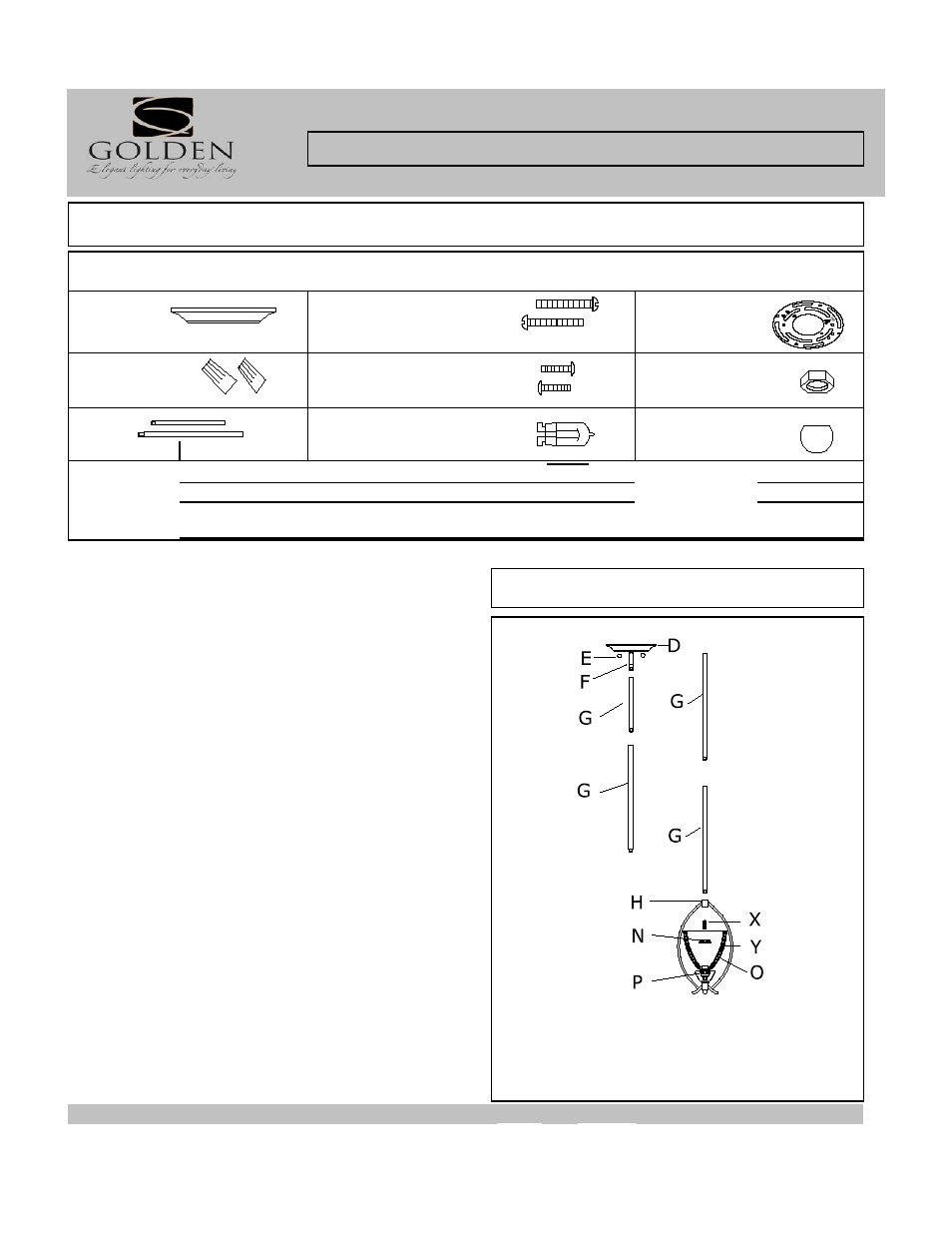

PARTS LIST
Fig 1
Read and review installation instruction sheet before assembling the
fixture.
7509-M1L PW
1. By measuring, determine the correct number of rods needed for proper
hanging height.
* This fixture includes 4 rods (6", 12", 12", 12")
2. To shorten the fixture; slide the excess rods off the wires. To lengthen
add additional rods. The 12" rods are optional.
3. Pull the fixture’s wires through Rods (G) until taut and thread the rods
together. Then thread rods to the Fixture Coupler (H) at top of fixture and the
swivel joint on Canopy (F)
4.Pour Crystals (Y) into the groove of Glass Shades (O) then place Glass
Shades (O) over the threaded Sockets (P),secure Glass Shades (O) by
threading on
Socket Rings (N) until tight.
5. Install the light bulb in accordance with the fixture's specification.
Bulb note: Use a tissue or paper towel to hold the bulb and push down into
the socket. Oils or dirt can cause the bulb life to shorten. Rubbing alcohol is
recommended to clean the bulbs if dirty.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
NOTE: INSTALL THE GLASS ASSEMBLY AFTER THE FIXTURE IS HUNG.
Rod
Bulb
Deco sut
Canopy
Mounting screws
Mounting strap
FIXTURE ASSEMBLY INSTRUCTIONS
1ea ∅4"*H2mm
Wire connectors
Mounting screws
Hex sut
PARTS & ASSEMBLY SHEET
Fixture Name: Asteria 7509-M1L PW
This fixture assembled PO:__________ Date: ________
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
