Golden Lighting 8355 RBZ User Manual

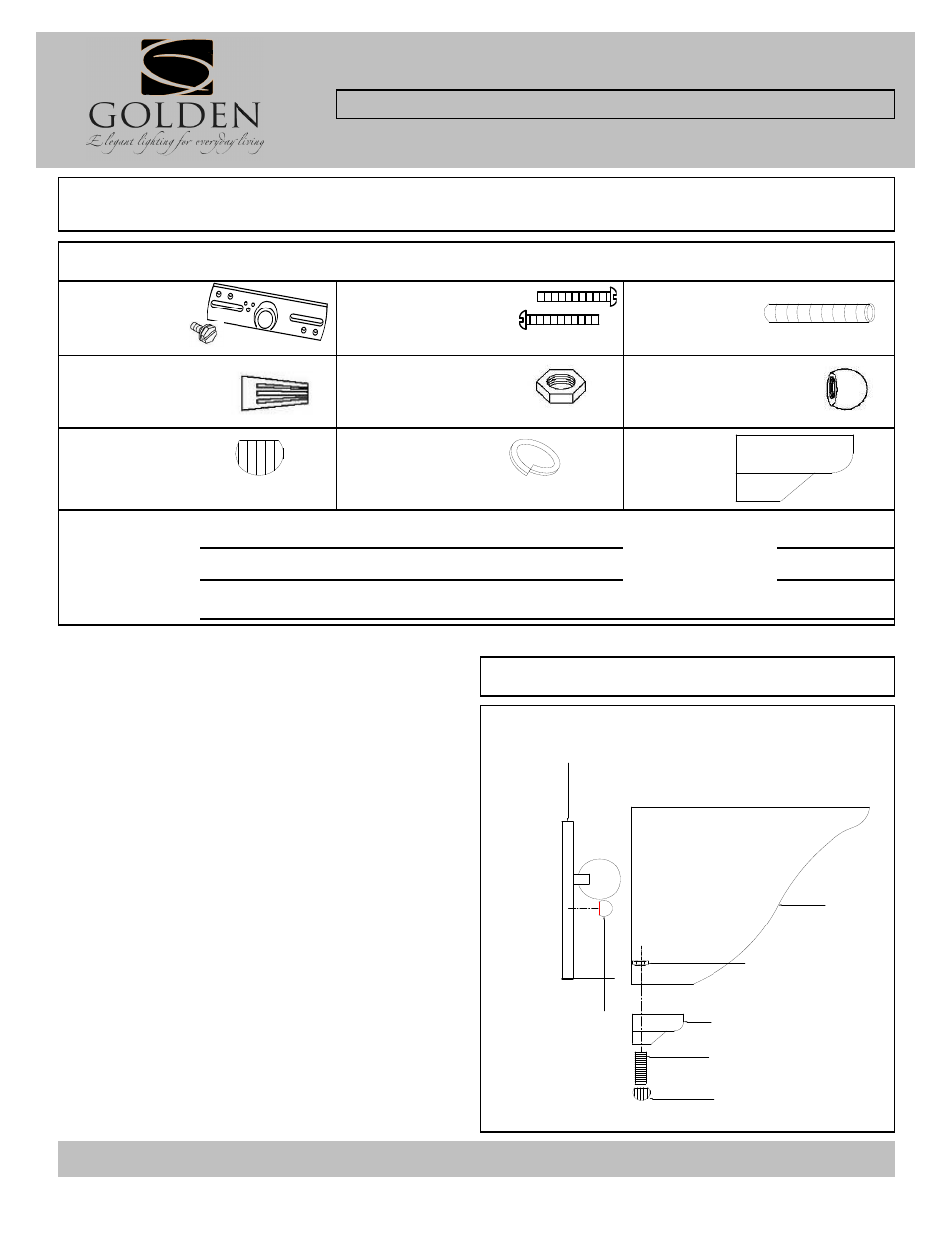

Parts & assembly sheet, Parts list

Mounting strap

w/ ground screw

Threaded rod

1ea 3/4"X4"

2ea 3/8"*H45mm

Wire connnector

Hex nut

Deco nut

(round nut)

3ea P3 Orange

2ea @3/8X3mm

1ea 3/8"*H9mm

Finial

Sping washer

Bottom cap

1ea Ø13*H9mm

1ea Ø15*H3mm

1ea 38*H28mm

Part Needed

Quantity

Part Needed

Quantity

Reason why

( missing, scratched, broken glass, bent, bad finish)

Comments

PARTS & ASSEMBLY SHEET

This fixture assembled PO:__________ Date: ________

Fixture Name: Multi-Family 8355 RBZ

Notice:

Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or

damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.

PARTS LIST

Company Name:_______________________Co. Account #:_____________
below to be filled out by retailer

For Customer Service, contact the place of purchase to arrange for replacement parts.

NOTE: I

NSTALL THE GLASS ASSEMBLY AFTER

THE FIXTURE IS HUNG.

1. Attach the finial (N) to Threaded rod (L) and slide through
Bottom Cap (K)

2. Place the Glass Shade (M) flush with the Back plate (J) just
under the "L" shaped lip.

3. Slide Bottom cap assembly (K+L+N) into hole at the bottom
of Glass shade (M), with the threaded rod going through the
hole in bottom of fixture back plate and tighten with Hex nut
(O).

*If the glass does not sit flush with the wall remove the glass,
gently press the lip up bit to increase glass tension and
reinstall the glass.

4. Install the light bulb in accordance with the fixture's
specifications.

(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)

Fig. 1

Junction box screws

2ea #8-32N*18mm

8355 RBZ

Read and review installation instruction sheet before
assembling the fixture.

IXTURE

SSEMBLY

NSTRUCTIONS

8355 PartsInstallation-20101005m.xls
