For Wall Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name:
Multi-Family 8355 RBZ
For Customer Service, contact the place of purchase to arrange for replacement parts.

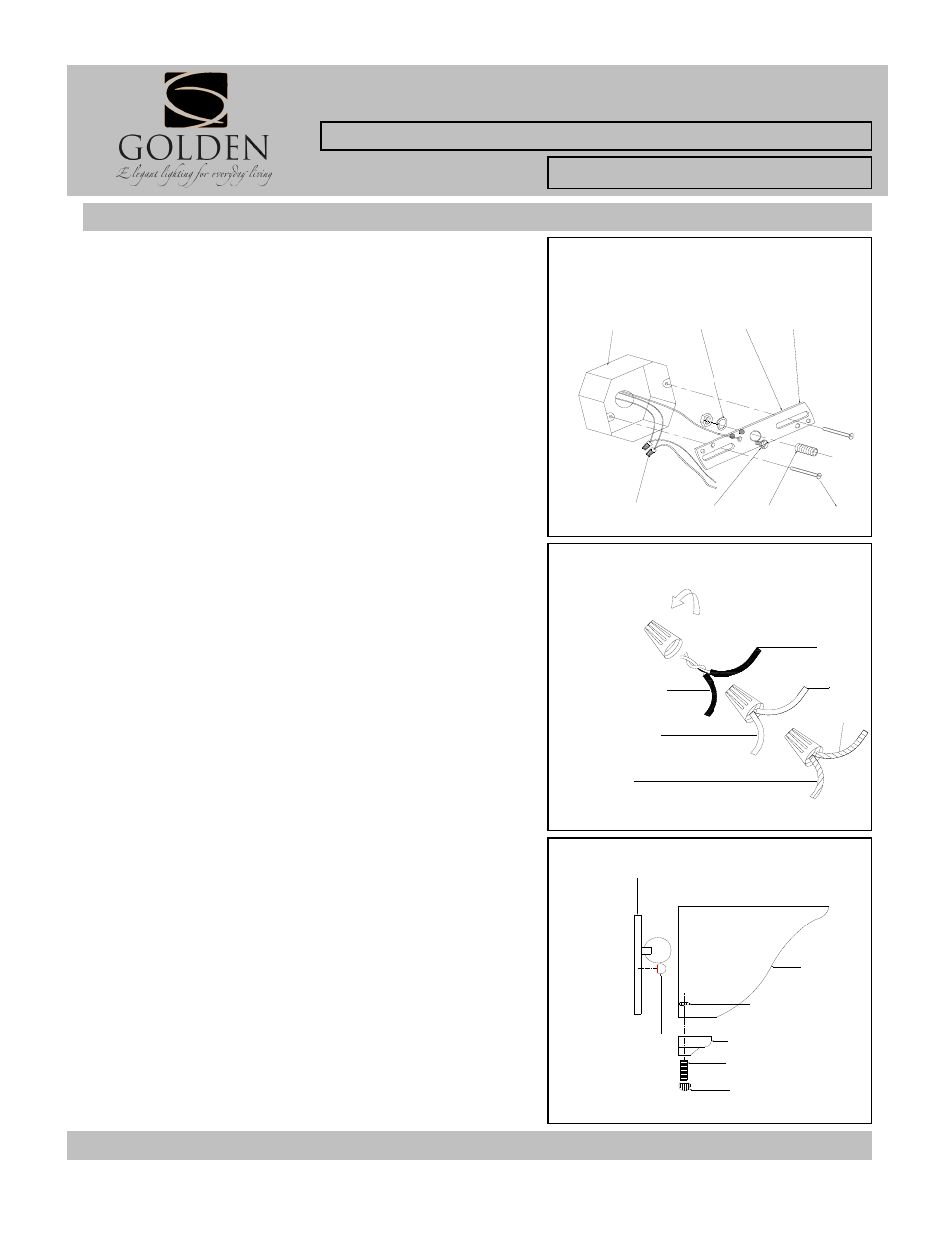

Fig. 3
Fig. 1
Fig. 2
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the yellow bag
that holes all your parts. Check that all parts are included as shown in the
illustration and parts list.
2. Shut off power at the circuit breaker and remove the old fixture from
wall, including the old mounting strap.
3. Take Threaded Rod (D) from parts bag and thread into center screw
hole on Mounting Strap (A), tighten with Hex Nut (B) and Spring Washer
(C).
4. Attach the Mounting Strap (A) to the Junction Box (I) using the two
Mounting Screws (E). Tighten the screws securely.
CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
6. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (A) or connect both wires
together using the correct size of wire connectors.
NOTE:Twist the wires together in the same direction you twist the
wire connector onto the wires.
7. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION (Fig. 3)
8. Place the fixture Back Plate (J) over the Threaded Rod (D), so
it protrudes through the hole in the Back Plate (J).
9. Thread the Deco Nut (H) onto the Threaded Rod (D) and
continue turning until the Back Plate (J) is snug against the wall.
10. Install glass as per the fixture assembly instructions.
YOUR INSTALLATION IS NOW COMPLETE. RETURN POWER
TO THE JUNCTION BOX AND TEST THE FIXTURE.
