CONNECTING THE WIRES (Fig. 2)
6. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
NOTE: Twist the wires together in the same direction you
twist the wire connector (M) onto the wires.
7. Attach the GROUND wire (GREEN or COPPER) from the
junction box and the fixture ground wire to the green Ground
Screw (F) on the Mounting Bracket (C). Or, connect both
wires together using a wire connector.
8. Tuck these wire connections neatly into the junction box.
Fig. 2
FINISHING THE INSTALLATION (Fig. 3)
9. After tucking these wire connections neatly into the
Junction Box, place the fixture Back Plate (H) over the two
Mounting Screws (B).
10. Secure the Back Plate (H) against the wall by threading
two Deco Nuts (P) over the two Mounting Screws (B) until
tight as shown on Fig.1.
11. Install the light bulb and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE
FIXTURE.
Fig. 3
For Customer Service, contact the place of purchase to arrange for replacement parts.

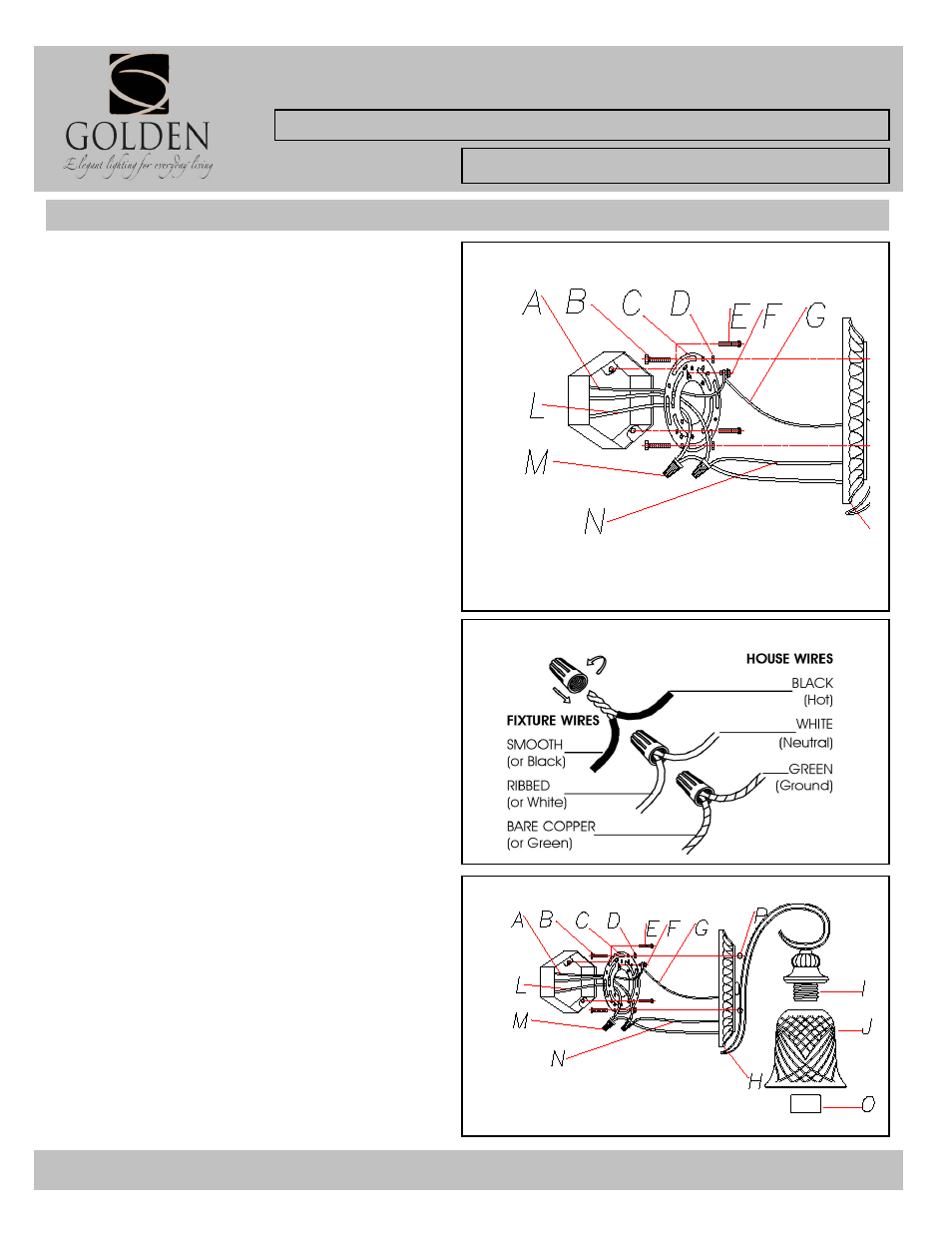

INSTALLATION INSTRUCTIONS
Fixture Name: Alston Place 8118-1W BUS
For Wall Mount Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3. The Mounting Strap (C) contains several pairs of threaded
holes. Find the pair of holes that matches the holes spacing
in your fixture Back Plate (H). Thread the two Mounting
Screws (B) halfway into the Mounting Strap (C) and secure
with Hex Nut (D).
4. Place the Mounting Strap (C) over the Junction Box so the
Mounting Screws (B) are horizontal or vertical as required by
the fixture.
5. Attach the Mounting Strap (C) to the Junction Box using
the two mounting screws (E). Tighten securely with
screwdriver.
Fig. 1
