WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
INSTALLATION INSTRUCTIONS
Fixture Name: Torbellino 8106-BP3 CDB
For Chandelier Light Fixture
13. Raise Canopy (G) to the ceiling and secure in place by
tightening the Canopy loop collar(H) into the Canopy Loop(F)
14. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX
AND TEST THE FIXTURE.
For Customer Service, contact the place of purchase to arrange for replacement parts.
7. Unscrew the Canopy loop collar (H) from the Canopy loop. Take
the canopy and pass over the Canopy loop. approximatly one half of
the canopy loop exterior threads should be exposed. Adjust until
desired height is reached. *the Canopy loop collar should fit snugly
on the Canopy loop after the canopy is installed. Remove Canopy
and Canopy lock collar.
8. Assemble the fixture and have an assistant or secure support
hold the weight of the fixture while you complete the wiring
connections.
9. Thread the fixture wires and ground wire of the assembled fixture
through the canopy loop and nipple and into the outlet box.

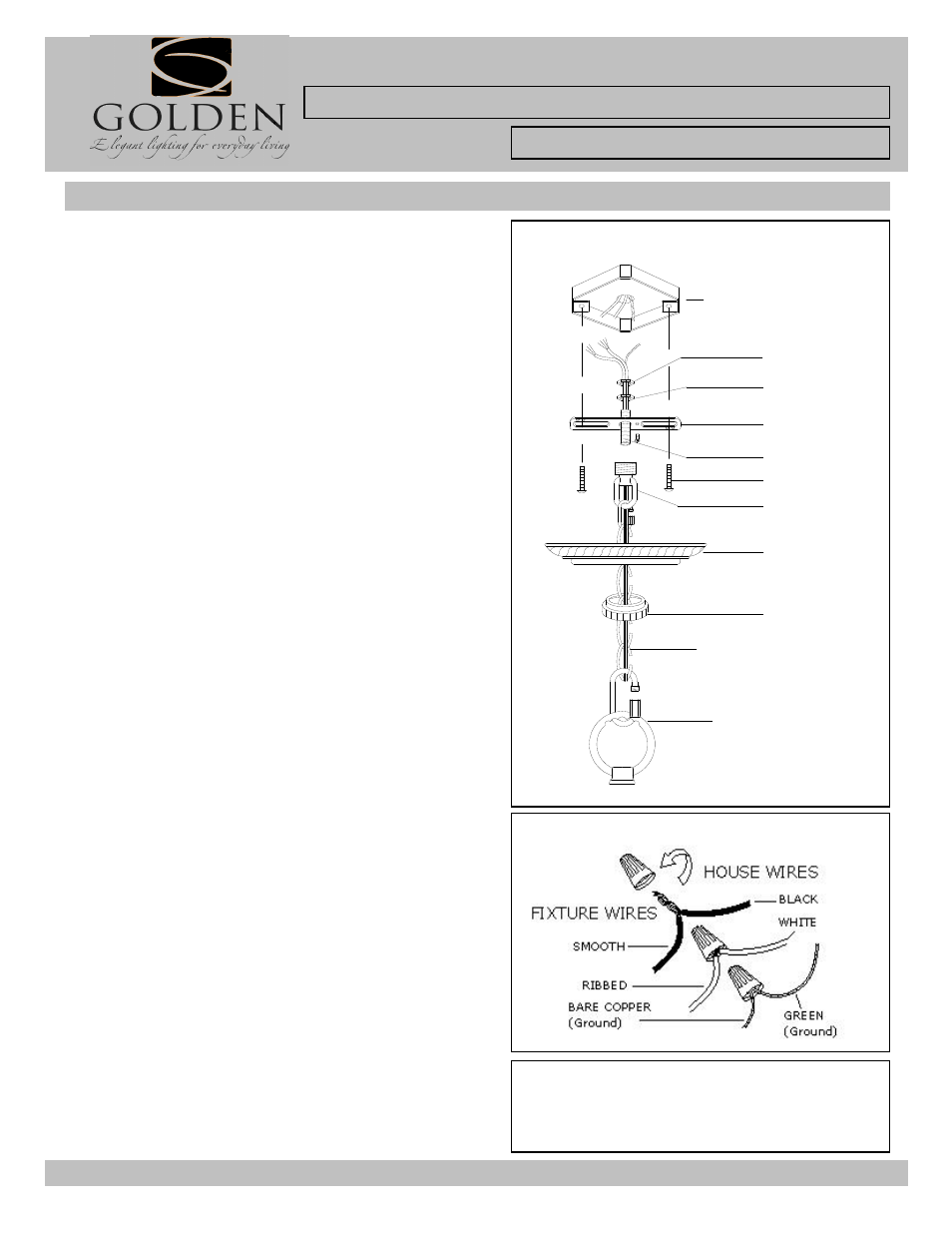

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the yellow
bag that holds all parts. Check that all parts are included as shown
in the illustration and parts list.
2. Shut off the power at the circuit breaker and remove old fixture
from ceiling, including the old mounting strap.
3. Thread Nipple(C) into Canopy Loop (F) until snug.
4. Thread other end of the Nipple (C) with Canopy Loop attached
into Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C) protruding through
Mounting Strap (D) and thread Hex Nuts (A) onto Nipple until tight.
6. Take this mounting strap assembly and mount to ceiling junction
box with junction box Screws (E). Tighten screw securely with screw
driver.
Fig. 1
CONNECTING THE WIRES (Fig 2)
10. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to WHITE
(or RIBBED).
11. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (D) or connect both wires together
using the correct size of wire connectors.
- NOTE: Twist the wires together in the same direction you twist
the wire connector onto the wires.
12. Tuck these wire connections neatly into the Junction Box.
Fig. 2
G
CHAIN
J
H
F
E
D
JUNCTION BOX
(CEILING)
A
C
B
