Fixture Name: Torbellino 8106-BP3 CDB

PARTS & ASSEMBLY SHEET

For Customer Service, contact the place of purchase to arrange for replacement parts.

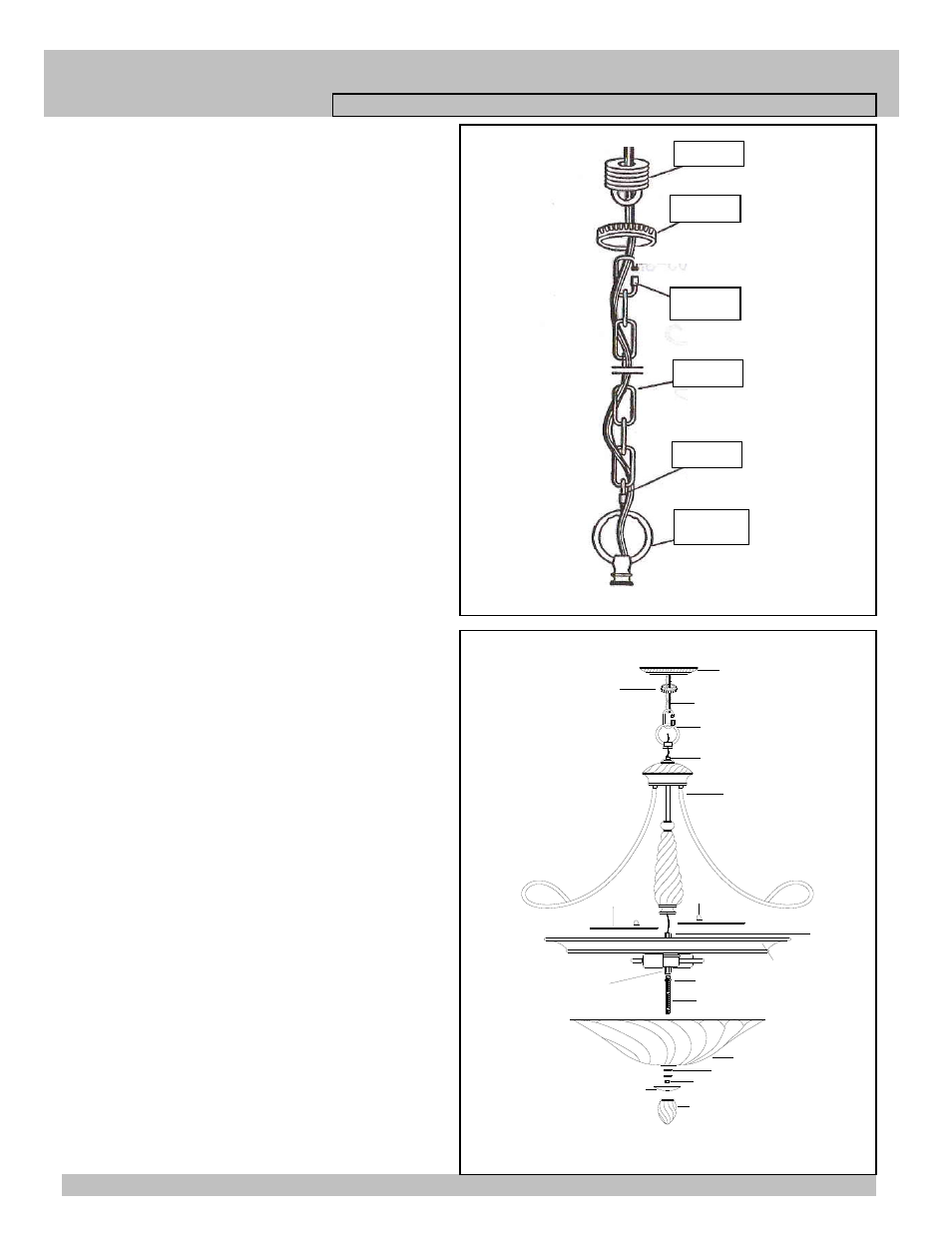

4. By measuring determine correct number of links needed

for proper hanging height. Use a pair of pliers to open one

link of the Chain (C2) then remove the excess Chain (C2)

and discard it.

5. Use one chain connector(E2) to attach one end of the

chain to the Top loop (D2) and close the chain connector.

6. Feed the fixture wires through the Chain (every three

links) and pull the wires until taut.

7. Slip Canopy loop collar (B2) over the chain, then do the

same with the canopy (F2).

8. When ready to complete the installation Use the other

chain connector and attach the other end of the chain to the

canopy loop (A2) and close the chain connector.

9. Make sure the weight of the chandelier is supported by

the chain-not the electrical wire.

You may now install the fixture.

Fig 2

NOTE: Complete these remaining steps after the fixture is

hung.

10. Thread the Nipple (S) into the Coupling (R), and then

thread the Hex Nut (T) onto Nipple (S) until tight.

11. Install the light bulbs in accordance with the fixture’s

specifications.

12. Place Glass Shade (N) over the Metal Ring (S). The

Nipple (S) shall protrude through the bottom hole of the

Glass Shade (U).

13. While holding the Glass Shade slide the Rubber

Washer (V) onto the Nipple(S).

14. Slide Bottom Cap (X) over Nipple (S) and thread the

Finial (Y) until tight.

15. Attach each half of the Diffuser (N) on the circular plate

of the Metal ring (S) using the Deco nuts (P) and rubber

washers attached. Place one rubber washer on each sied of

the Diffuser glass (N) to protect from breakage.

Fig 3

(DO NOT EXCEED THE MAXIMUM WATTAGE RATING)

CHAIN
