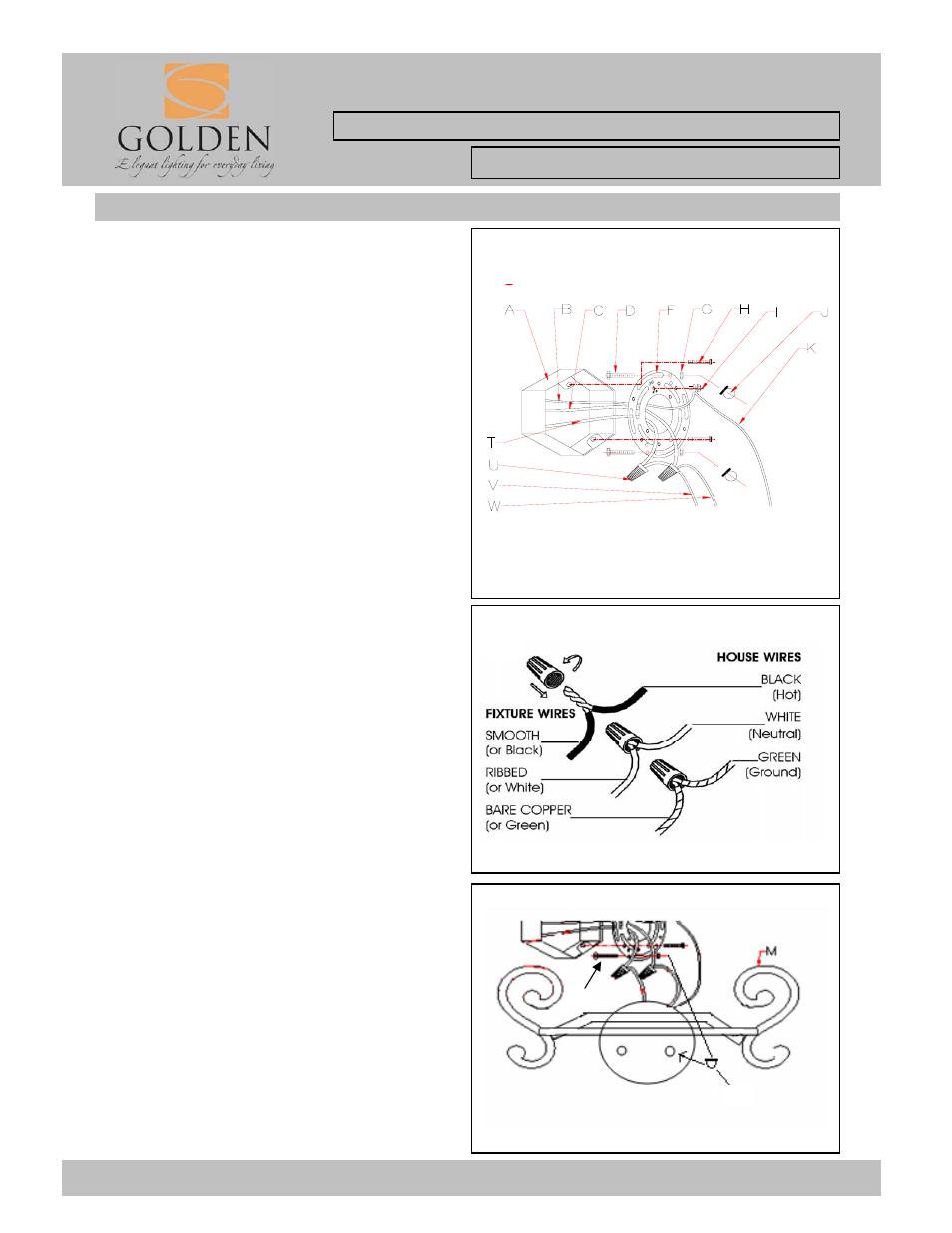

Fig. 3
Fig. 1
Fig. 2
For Customer Service, contact the place of purchase to arrange for replacement parts.
HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and
the yellow bag that holes all your parts. Check that all
parts are included as shown in the illustration and parts
list.
2. Shut off power at the circuit breaker and remove the
old fixture from wall, including the old mounting strap.
3. The Mounting Strap(F) contains several pairs of
threaded holes, find the pair of holes that match the
holes spacing in your fixture Back Plate(M) and thread
the two Fixture Mounting Screws(D) half way into the
Mounting Strap(F) and secure with Hex Nut (G).
4. Place the Mounting Strap(F)over the Junction Box
(A)so the Fixture Mounting Screws(D) are vertical or
horizontal, as required by fixture type.
CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead
wires by connecting BLACK to BLACK (or SMOOTH)
and WHITE to WHITE (or RIBBED).
7. Attach the GROUND wire(GREEN or COPPER)
from the Junction Box and the fixture Ground wire to
the green Ground Screw (I) on the Mounting Bracket
(F) or connect both wires together using the correct
size of wire connectors. -
NOTE:Twist the wires together in the same direction
you twist the wire connector (L) onto the wires.
8. Tuck these wire connections neatly into the Junction
Box.
FINISHING THE INSTALLATION (Fig.3)
9. After tucking these wire connections neatly into the
Junction Box and place the fixture Back Plate(M) over
the two Mounting Screws(D) and secure the Back
Plate(M) against the wall by threading two Deco Nuts(J)
over the two Mounting Screws(D) until tight as shown
on Fig.3.
10. Install the light bulbs and glass shade as per the
fixture assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
5. Attach the Mounting Strap(F) to the Junction Box
using the two Mounting screws(H)and tighten securely
with screw driver.
For Wall Mount Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: Heartwood 8063-WSC BUS
