Parts & assembly sheet – Golden Lighting 8063-M1L BUS User Manual
Page 2

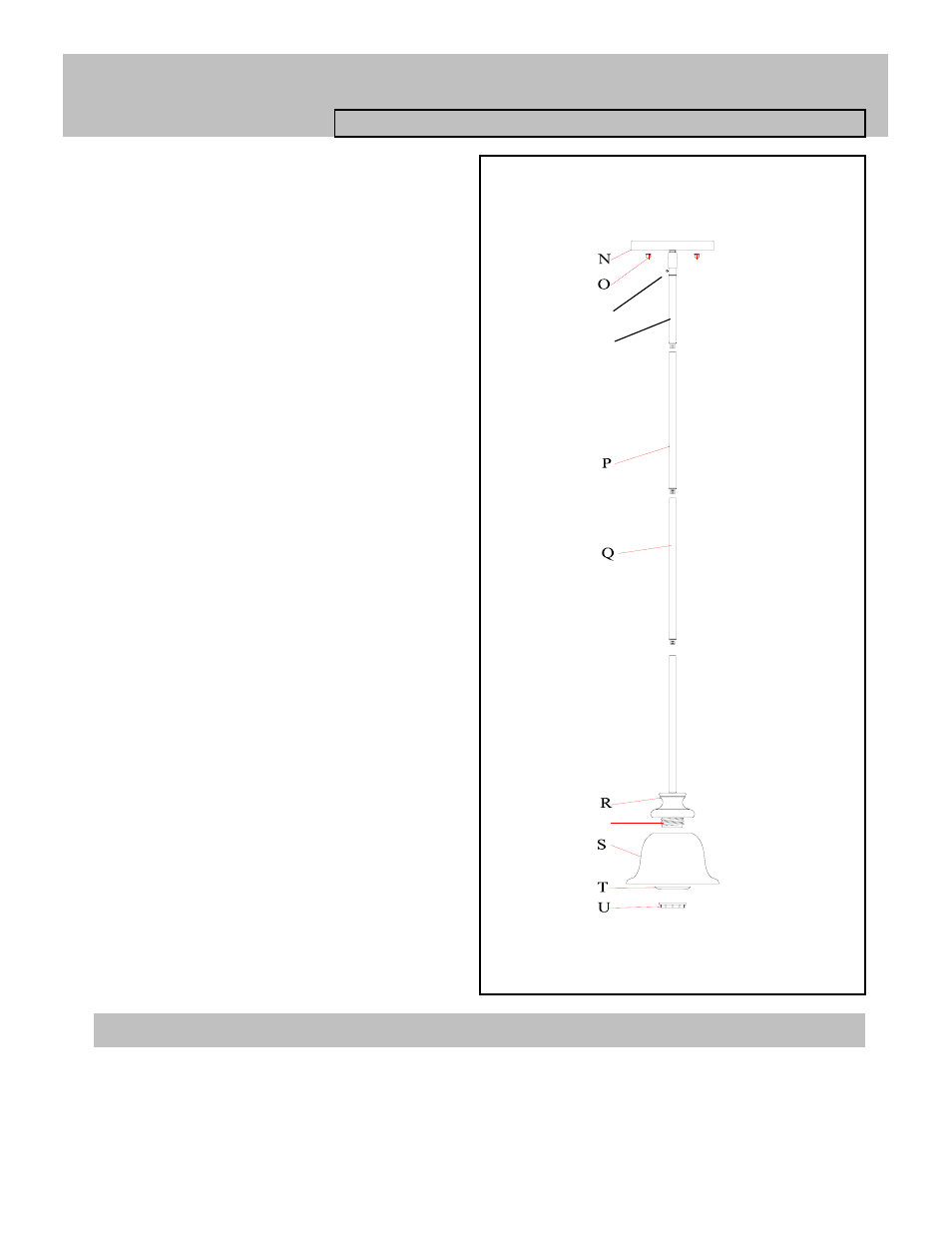

Fig 2
For Customer Service, contact the place of purchase to arrange for replacement parts.
PARTS & ASSEMBLY SHEET
Fixture Name: Heartwood 8063-M1L BUS
4. Pull the fixture’s wire through the Rods until taut.
5. Thread Rod
（Q）into Frame（R）until tight.
6. Thread Rod
（P）into Rod（Q) until tight. repeat for
any additional rods.
7. Thread 6" Rod
（W）into Rod（P）until tight.
8. Loosen the Set screw ( X ) just until the rod will fit in
the swivel coupler. Thread the 6" Rod
（W）into the
canopy ( N ) and tighten the Set screw( X )
* You may now install the fixture.
9. Place the glass shade (S) over the threaded socket
(V) and place the Socket Washer (T) onto the threaded
socket (V) and secure both by threading the Socket ring
(U) until tight.
10. Install the light bulb in accordance with the fixture’s
specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING!)
V
W
X
