PARTS & ASSEMBLY SHEET
Fixture Name: Heartwood 8063-9 BUS
Note: Complete these remaining steps after the
fixture is hung.
9. Place the Bottom Assembly (R) onto the Fixture
Base(Q)with the threaded rod protruding through the
hole, secure the Bottom Assembly(R) to the base by
threading the Hex Nut(S) onto the threaded rod until
tight.
10.Place the Bottom Cap (T) onto the Hex
Nut(S),and secure by threading the Finial(U) until
tight.
11. Place the Glass Shade(O) over the Threaded
Socket(P), secure the Glass Shade(O) by threading
by the Socket Ring(N) until tight.
12. Install the light bulbs in accordance with the
fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
Fig 3
For Customer Service, contact the place of purchase to arrange for replacement parts.
F IXTURE A SSEMBLY I NSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture.
8063-9 BUS

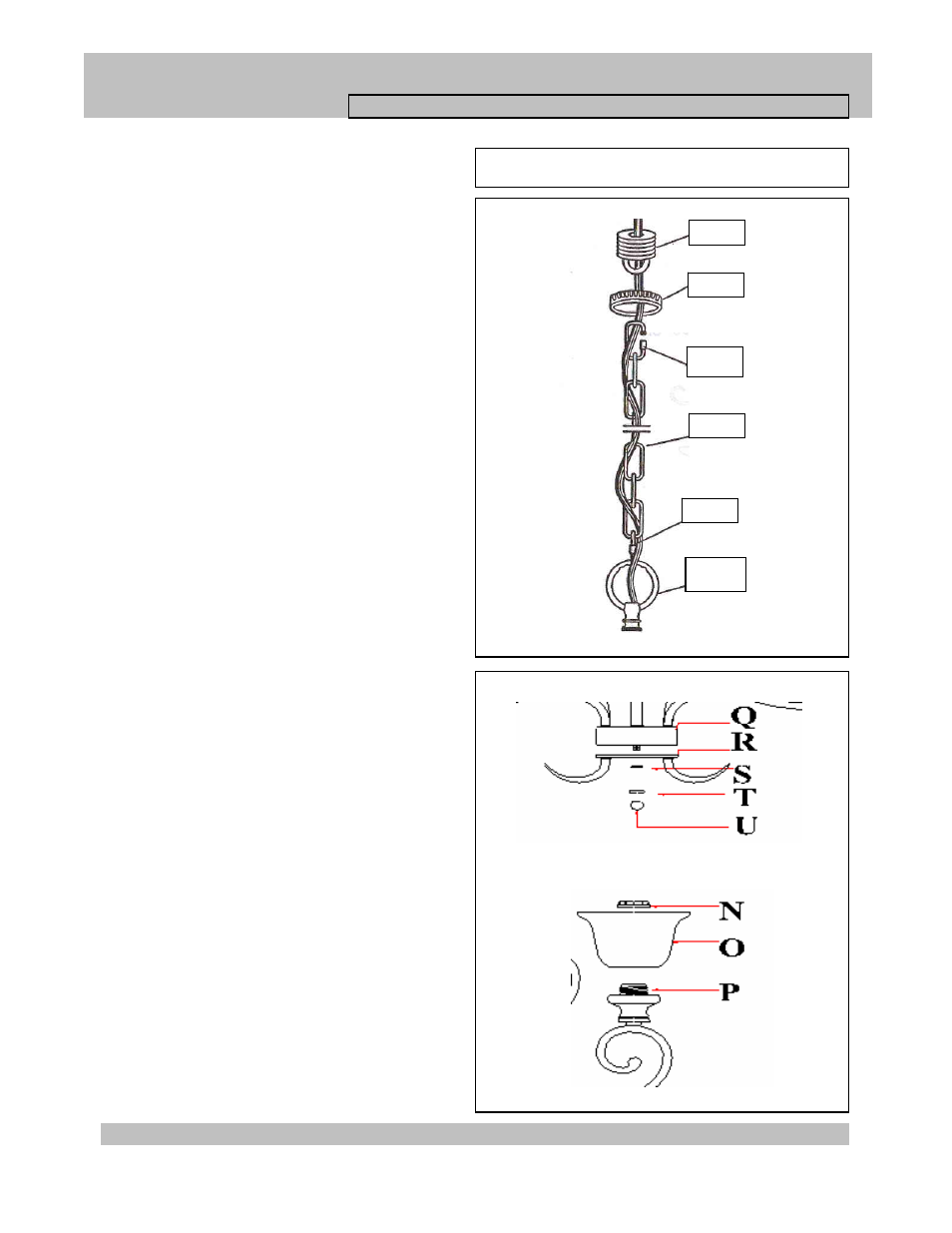

ASSEMBLING THE FIXTURE (Fig.2)
3. By measuring determine correct number of links
needed for proper hanging height. Use a pair of
pliers to open one link of the Chain (C2) then remove
the excess Chain (C2) and discard it.
4. Use one chain connector(E2) to attach one end of
the chain to the Top loop (D2) and close the chain
connector.
5. Feed the fixture wires through the Chain (every
three links) and pull the wires until taut.
6. Slip Canopy loop collar (B2) over the chain, then
do the same with the canopy (F2).
7. When ready to complete the installation Use the
other chain connector and attach the other end of
the chain to the canopy loop (A2) and close the
chain connector.
8. Feed the fixture wires through canopy loop (F)
and nipple(C) and pull until taut.
Fig 2
B2
A2
C2
E2
D2
E2
