Fixture Name: Mirabella 7644-SF GA
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig 2
PARTS & ASSEMBLY SHEET
C
D

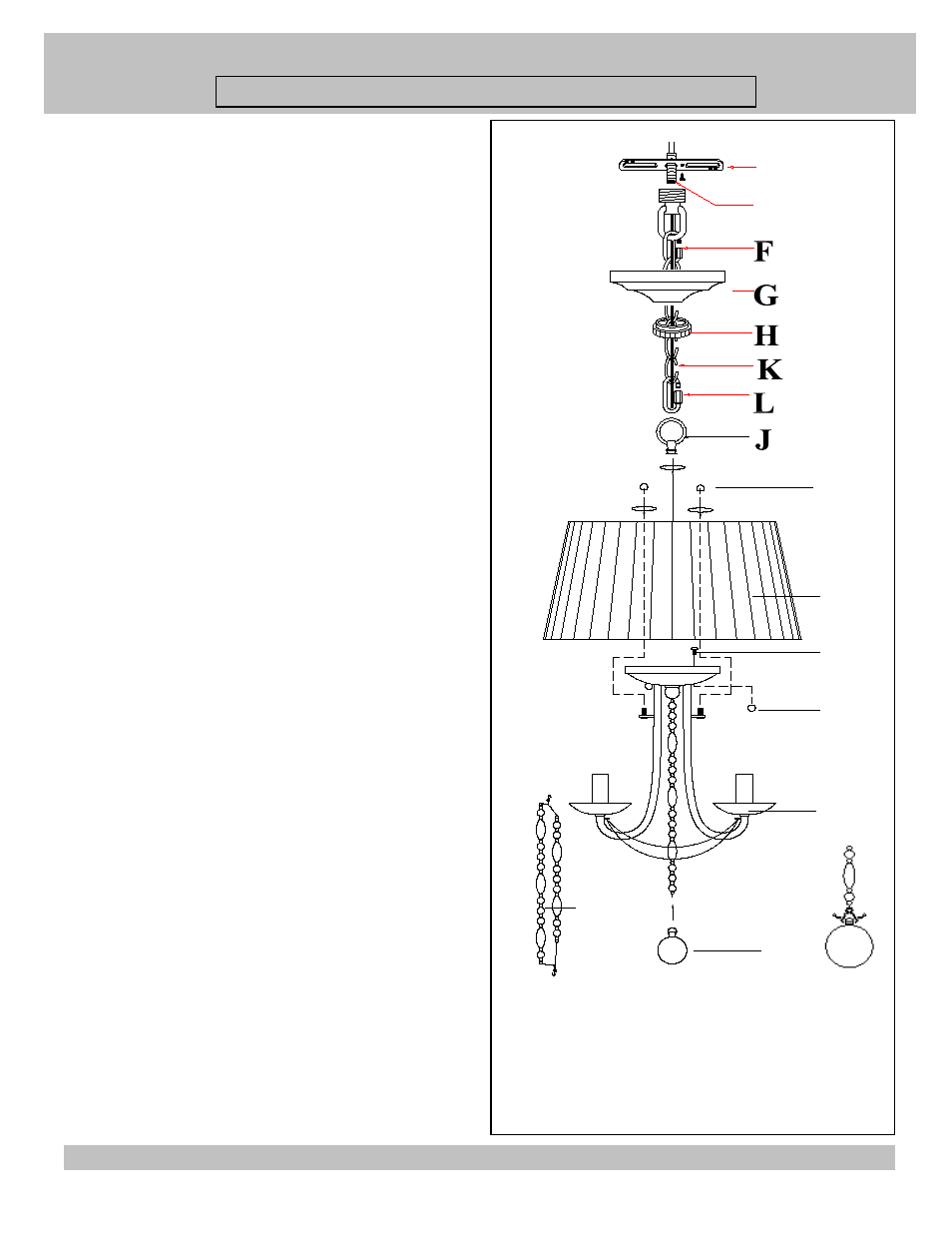

ASSEMBLING THE FIXTURE as Chain hung (Fig. 2)
1. Remove the Circular strap from top of Fixture and
replace the long mounting screws with two short screws
to hold the Deco nuts (E) in place on the fixture
Bottomop cap (M).
2. Feed the fixture wires through the Top loop (J) and
pull the wires until taut.
3. Then screw the Top Loop (J) to the threaded center
column of Frame (M) until tight.
4. Place shade (N) over the nipple of the Frame (M)
and secure Deco Nut (E).
5. By measuring determine correct number of links
needed for proper hanging height. Use a pair of pliers
to open one link of the Chain (K) then remove the
excess Chain (K) and discard it.
6. Use one chain connector (L) to attach one end of the
chain to the Top loop (J) and close the chain connector.
7. Feed the fixture wires through the Chain (every three
links) and pull the wires until taut.
8. Slip Canopy loop collar (H) over the chain, then do
the same with the canopy (G).
9. When ready to complete the installation Use the
other chain connector and attach the other end of the
chain to the canopy loop (F) and close the chain
connector.
10. Make sure the weight of the chandelier will be
supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the
fixture is hung.
11. Pull the straight edges of the hook that sits at the
end of decorative chain (N) outward until it opens,
insert crystal ball (Q) into the opening and then close
the hook by pressing the edges together over the
loop at the top of the crystal as shown in the
diagram.
12. Install the light bulbs (not provided) in
accordance with the fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING )
b
b
a a
M
N
E
O
E
P
Q
