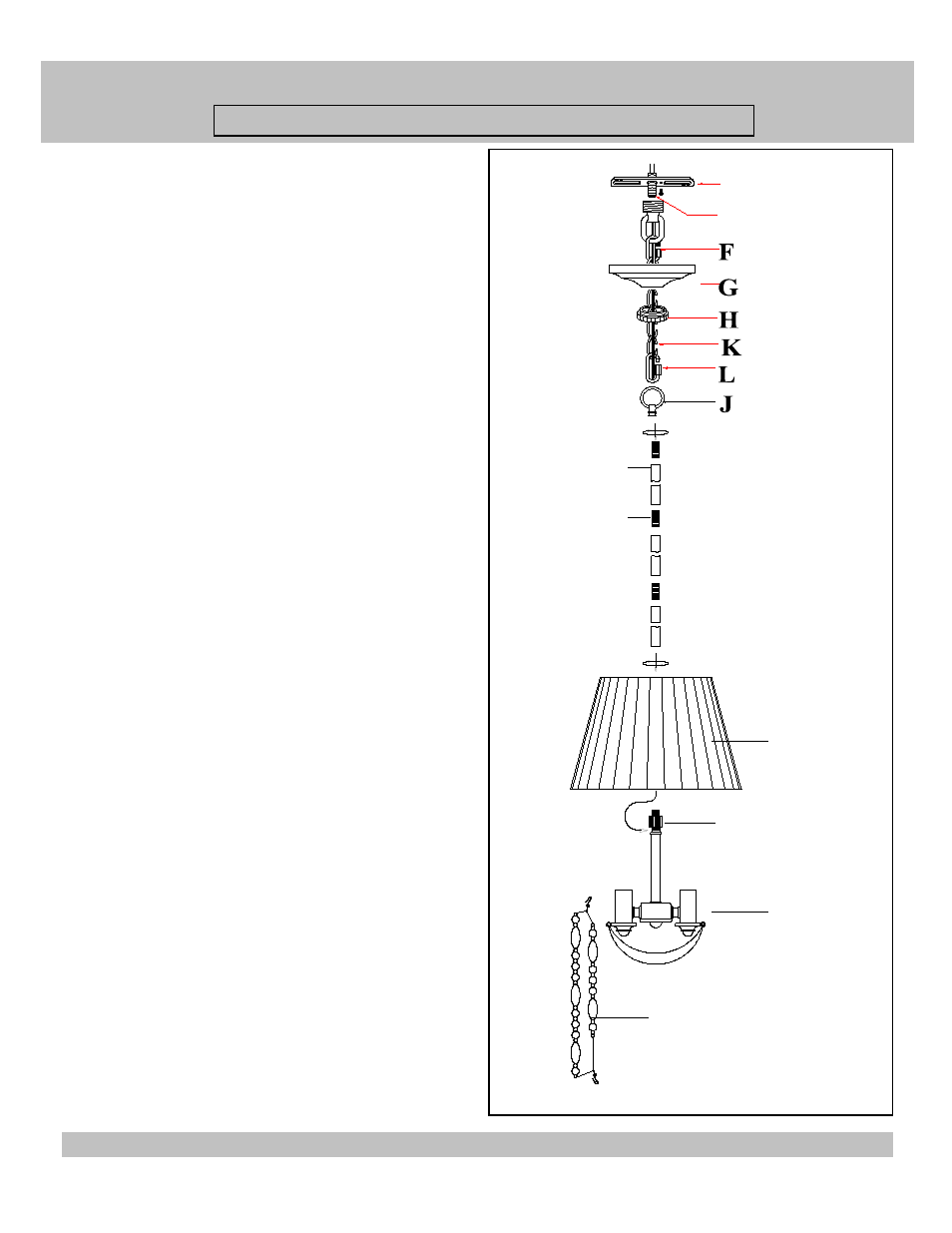

Fig. 2
PARTS & ASSEMBLY SHEET
Fixture Name: Mirabella 7644-M1LGA
C
D
COUPING
b b a
a
Q
N
M
O
P
ASSEMBLING THE FIXTURE (Fig.2)
4. Pull the fixture’s wire through the Rods until taut.
5. Install the Shade (N) onto the nipple at the top of
Frame (M) and secure with the coupler on Frame (M) until
tight.
6. Thread Rod (O) into Frame (M) until tight.
7. Thread additionsl Rods (O) together using the nipple (P)
between rods until tight. repeat for any additional rods.
8. Feed the fixture wires through the Top loop (J) and pull
the wires until taut. Then screw the Top loop (J) to the rod
on the top of fixture until tight.
9. Use a chain connector (J) to attach one end of the chain
to the Top Loop (L). Close the chain connector. Feed the
fixture wires through the Chain (every three links) and pull
the wires until taut.
10. Slip Canopy loop collar (H) over the chain, then do the
same with the canopy (G).
11. When ready to complete the installation Use the other
chain connector and attach the other end of the chain to
the canopy loop (F) and close the chain connector.
12. Make sure the weight of the chandelier will be
supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the fixture is
hung.
13. Install the light bulbs (not provided) in accordance with
the fixture's specifications.
14. Attach hooks at both ends of the Decorative Chain (Q)
to Frame (M) as shown in the diagram.
(CRYSET-7644-M1L 1ea included)
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
COUPLER
