Golden Lighting 7644-M1L GA User Manual

Parts & assembly sheet, Parts list

background image

7644-M1L GA PartsInstallation_20111108m.xls

Canopy

Wire Connectors

Top Loop

1ea @5-5/8"X1-5/8"

3ea P4 Orange

1ea @3/8 x 50mm

Chain

Junction Box

Screw

Spring Washer

1ea 1ft x3.8mm

2ea 8/32" x 1"

1ea @15 x 2mm

Chain Connector

Nipple

2ea @3X38mm

1ea @3/8 x 40mm x 5mm

1ea @3/8 x 65mm

Mounting Strap

w/ ground screw

Hex Nut

Rod

1ea 3/4"X4"

2ea @3/8 x 3mm

3ea @1/2" x 12"

Part Needed

Quantity

Part Needed

Quantity

Reason why

( missing, scratched, broken glass, bent, bad finish)

Comments

Fig. 1

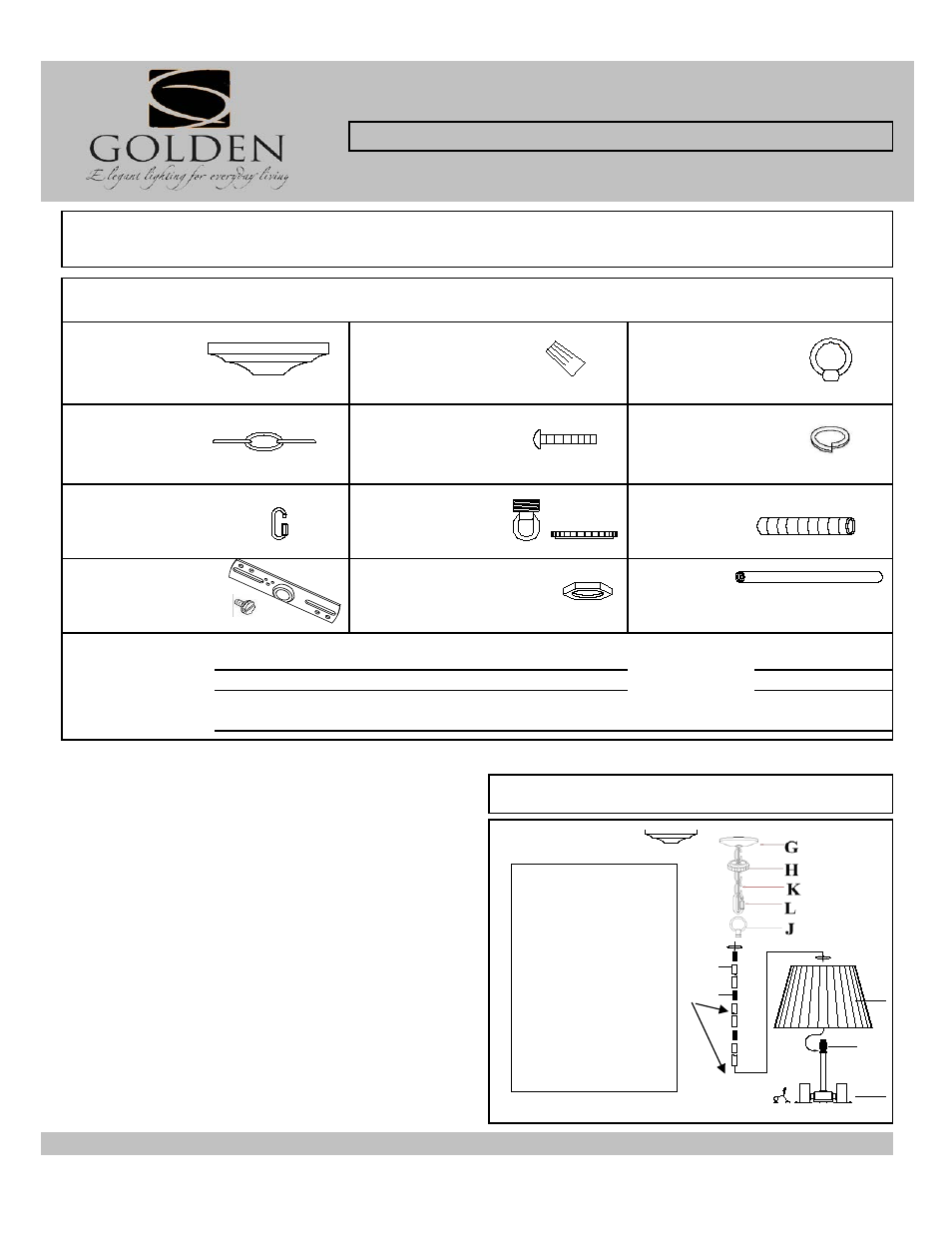

PARTS & ASSEMBLY SHEET

7644-M1LGA

Read and review installation instruction sheet before

assembling the fixture.

F

IXTURE

A

SSEMBLY

I

NSTRUCTIONS

This fixture assembled PO:__________ Date: ________

Fixture Name: Mirabella 7644-M1L GA

Canopy Loop

with Collar

Notice:

Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or

damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.

PARTS LIST

Company Name:_______________________Co. Account #:_____________

to be filled out by retailer

ASSEMBLING THE FIXTURE (Fig.1)
1. By measuring determine correct number of rods and
chain needed for proper hanging height. There are 1 ft
of chain and 2 optional 12" rods included.

2. To shorten the fixture slide the excess 12" rods off
the wire.

3. To lengthen the fixture thread the additional rods
onto the wire or substitute longer chain for the 1 foot
length included.

For Customer Service, contact the place of purchase to arrange for replacement parts.

These two Rods may
be removed
or
additional Rods may
be added.
ROD-12 GA*
additional chain may
be added.
CHAIN-GA *
*available for purchase
separately

O

P

COU
