Golden Lighting 6068-M1L GMT User Manual
Parts & assembly sheet, Parts list

6068 Series Instructions_20111103m.xls
1ea ∅5"*H3/4"
2ea 8#32-IP*1"
3ea P3 Orange
2ea 5/32-IP*1-3/5"
2ea 5/32-IP*H3mm
3ea ∅11.7*H12"
1ea ∅11.7*H6"
2ea 5/32-IP*H10mm
Part Needed
Quantity
Part Needed
Quantity
Reason why
( missing, scratched, broken glass, bent, bad finish)
Comments
For Customer Service, contact the place of purchase to arrange for replacement parts.
Read and review installation instruction sheet before
assembling the fixture.
6068-M1L GMT
1. By measuring determine correct number of rods
needed for proper hanging height.
* This fixture includes 4 rods (6", 12", 12", 12")
2. To shorten the fixture; slide the excess rods off the
wires. To lengthen add additional rods. The 12" rods are
optional.
3. Pull the fixture’s wires through the rods (G) until taut
and thread the rods together. Then thread to the fixture
coupler (H) at top of fixture and the swivel joint on
Canopy. (F)
4. Place the Glass Shade (J) over the Socket (I).
5. Install the light bulb in accordance with the fixture's
specification.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
Fig 1
NOTE: I
NSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
Rod
Rod
Deco sut
F
IXTURE
A
SSEMBLY
I
NSTRUCTIONS
Canopy
Mounting screws
Mounting strap
Wire connectors
Mounting screws
Hex sut
1ea ∅4"*H2mm
This fixture assembled PO:__________ Date: ________

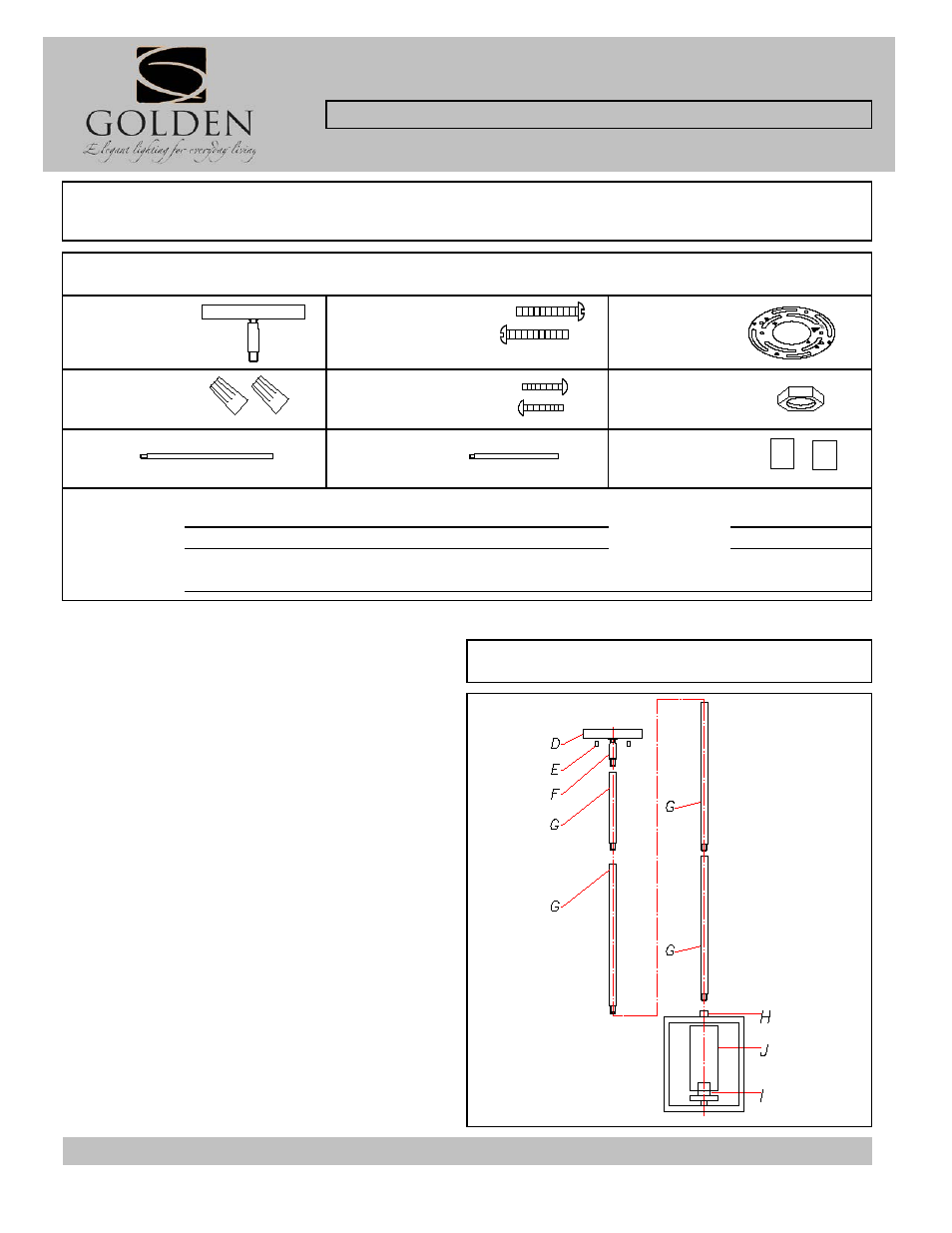

PARTS & ASSEMBLY SHEET
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing
or damaged, please note onthis sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
Fixture Name: Marco 6068-M1L GMT
