For Mini Pendant Light Fixture
INSTALLATION INSTRUCTIONS
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fixture Name: Multi-Family 4120 PW/RBZ, 4230 RBZ
For Customer Service, contact the place of purchase to arrange for replacement parts.

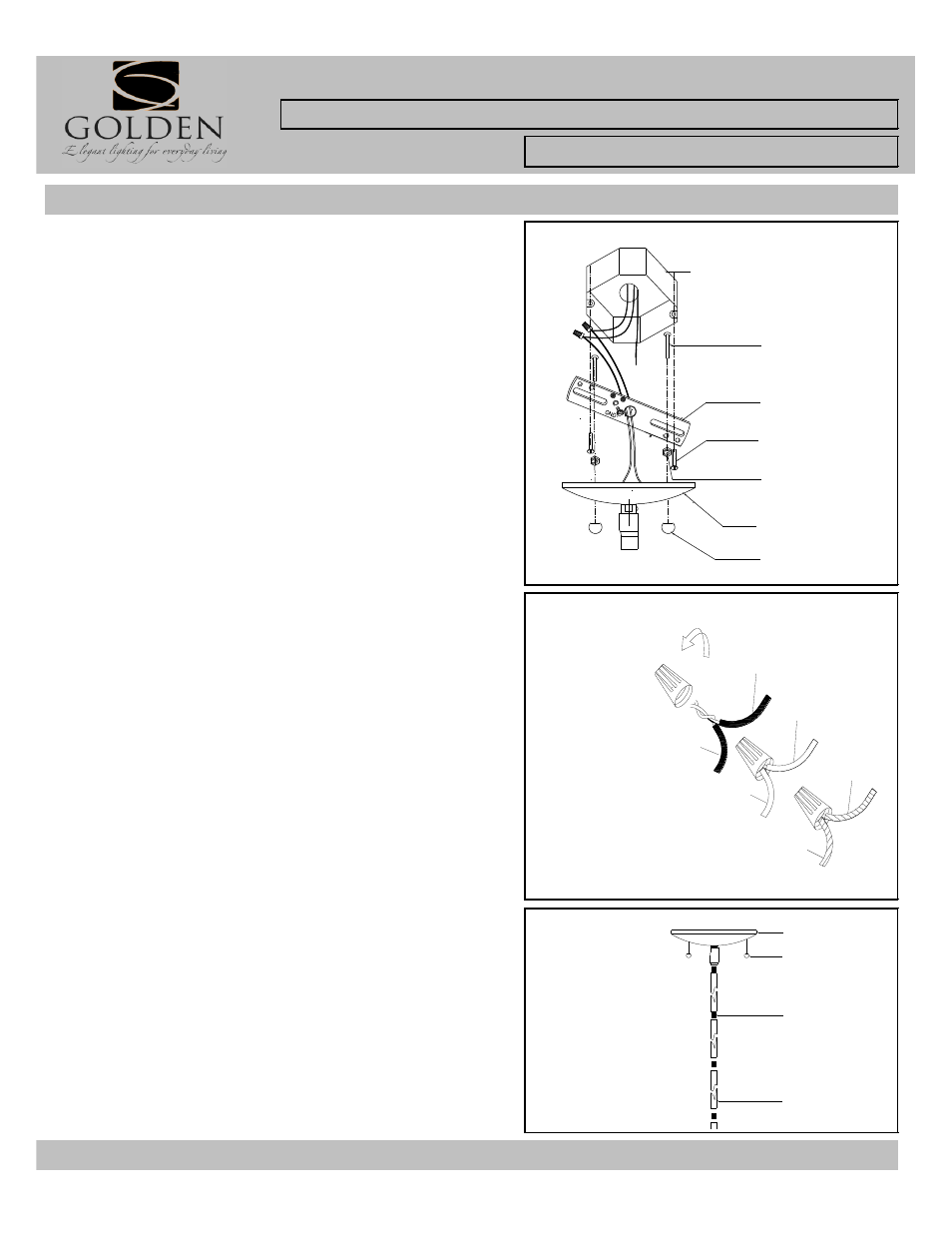

Fig. 2
Fig. 3
Fig. 1
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
E
F
B
JUNCTION BOX
(CEILING)
C
D
A
E
F
G
H
I
J
L
K
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and
the yellow bag that holds all your parts. Check that all
parts are included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the
old fixture from ceiling, including the old mounting strap.
3. Thread two Mounting Screws (A) half way into the
Mounting Strap (B).
4. Attach Mounting Strap (B) to the Junction Box by using
the two Junction Box Screws (C). Tighten the screws
securing with screw driver!!
CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the fixture lead wires
by connecting BLACK to BLACK (or SMOOTH) and
WHITE to WHITE ( or RIBBED) .
6. Attach GROUND wire (GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the
Green Ground Screw on the Mounting Strap (D) or
connect both wires together using the correct size of
wire connectors.
NOTE: Twist the wires together in the same direction
you twist the wire connector onto the wires.
7. Tuck these wire connections neatly into the ceiling
Junction Box.
FINISHING THE INSTALLATION (Fig. 3)
8. Place the fixture's Canopy (F) over the
Mounting Strap (B) and over the Mounting Screws (A),
adjust the fixture Canopy (E) and secure the fixture
against ceiling by threading the Decorative Nuts (F)
until tight.
9. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE. RETURN
POWER TO THE JUNCTION BOX AND TEST THE FIXTURE
