Mounting
Strap
1ea Green Screw 1ea Finial 1ea
Wire
Connectors
3ea
Nipple
(125mm)
1ea Small Hex Nut 2ea
Mounting
Screws
4ea Washer 2ea Big Hex Nut 3ea
Ball Nut 2ea Bottom Cap 1ea
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments
4002-FM RSB
Read and review installation instruction sheet
before assembling the fixture.
F IXTURE A SSEMBLY I NSTRUCTIONS
For Customer Service, contact the place of purchase to arrange for replacement parts.
NOTE: I NSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
1. Thread the Nipple (B) into the Ceiling Pan (A) and
secure with a Large Hex nut.
2.Place the Glass Shade (C) over the Ceiling Pan
(A) allowing the Nipple (B) to protrude through the
bottom hole in the glass and secure with Washer and
Large Hex nut.
3. Place the Scrolled Cage (D) over Nipple (B) and
secure with washer and Large Hex nut.
4. Slide Bottom Cap (E) over Nipple (B) and thread
the Finial (F) until taut.
5. Install the bulbs as per specifications. (no bulbs
included in the package).
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)
Fig 4
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any
parts are missing or damaged, please note onthis sheet and contact the place of purchase to
arrange for replacement parts.

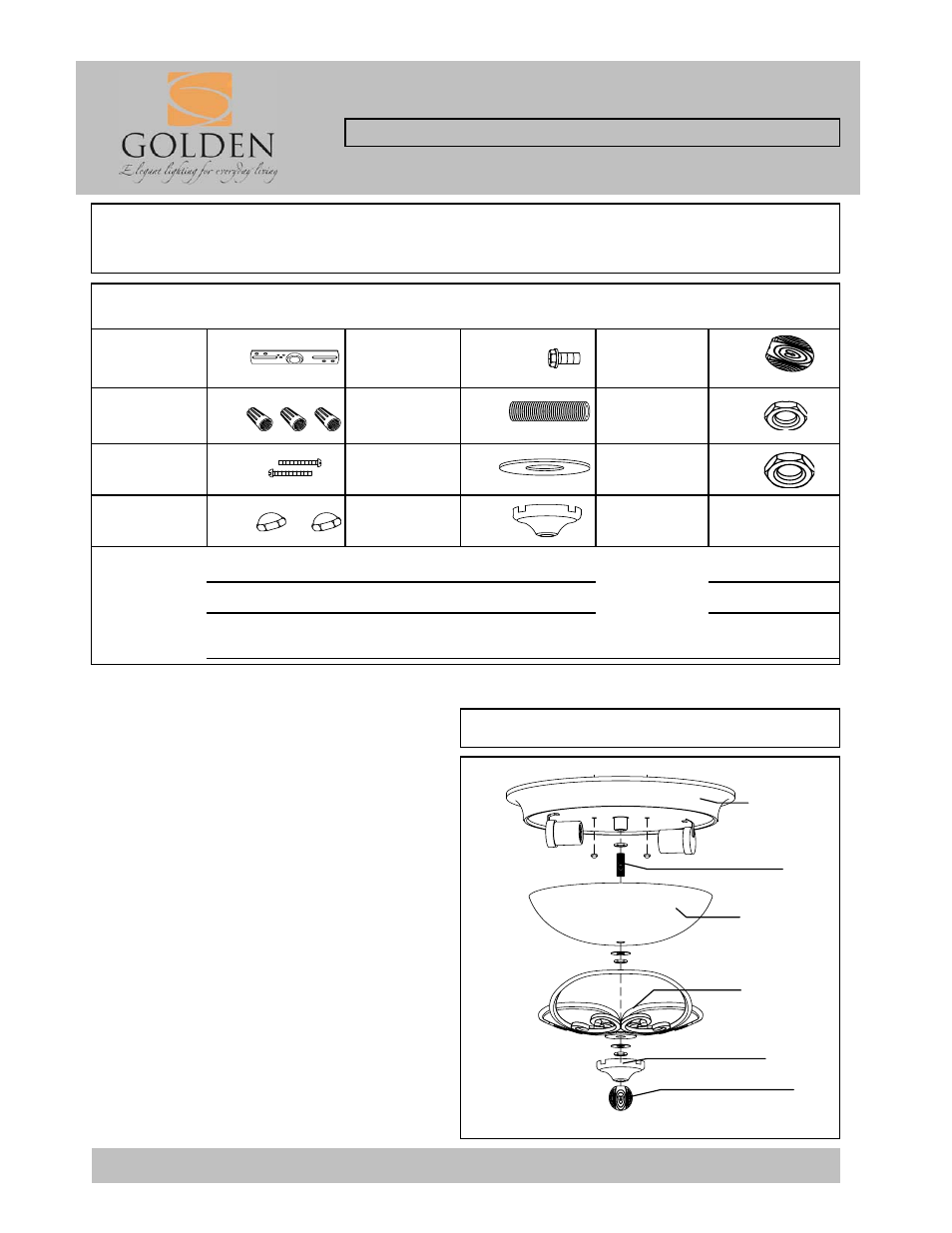

PARTS LIST
Company Name:_______________________Co. Account #:_________
below to be filled out by retailer
PARTS & ASSEMBLY SHEET
This fixture assembled PO:__________ Date: ________
Fixture Name: Loretto 4002-FM RSB
A
B
C
D
E
F
