Installation instructions

For Customer Service, contact the place of purchase to arrange for replacement parts.

Fig.3

Fig 1

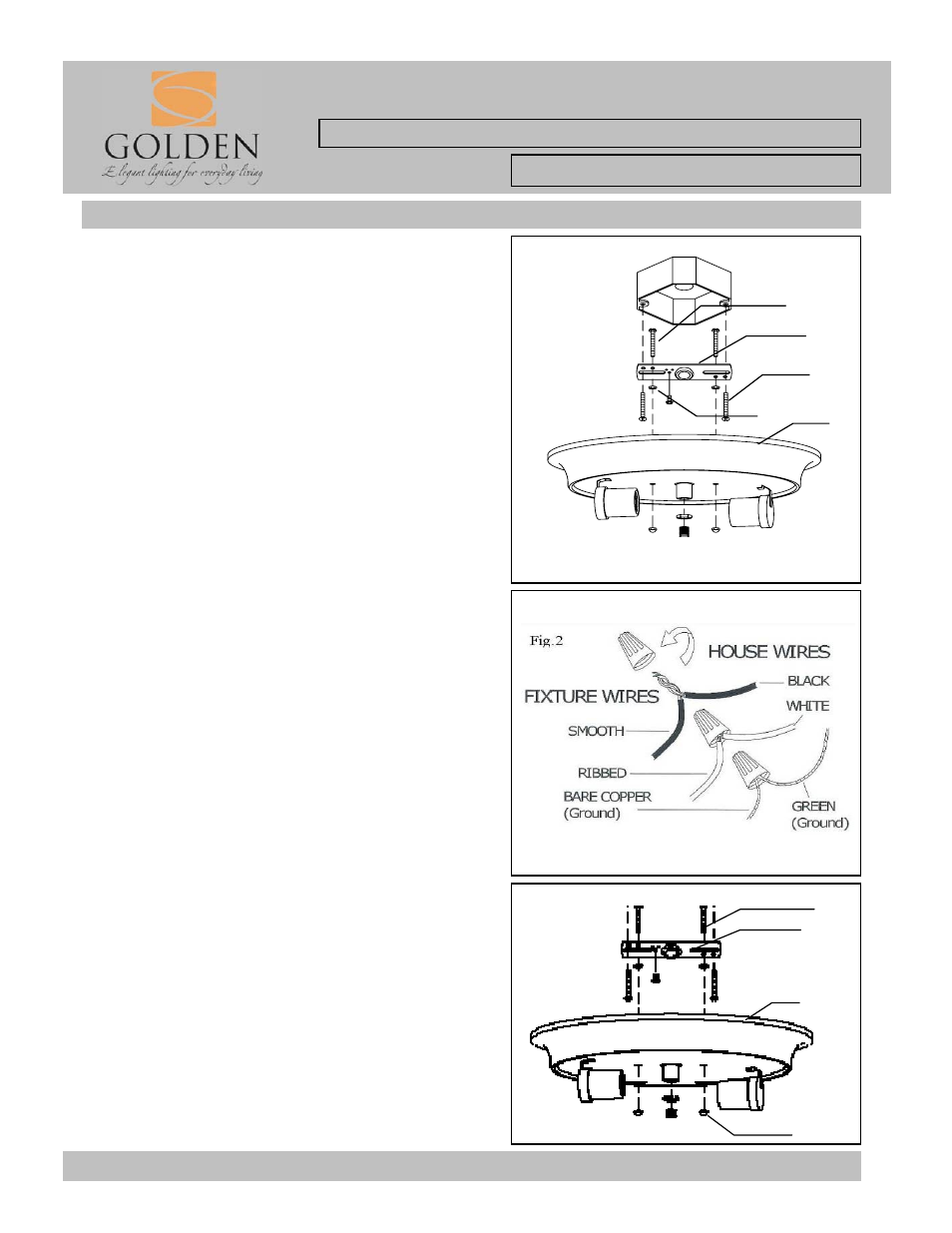

HANGING THE FIXTURE(Fig.1)

1.Carefully remove the new fixture from the carton and the

yellow bag that holes all your parts. Check that all parts

are included as shown in the illustration and parts list.

2. Shut off power at the circuit breaker and remove the old

fixture from ceiling, including the old mounting strap.

3. Thread the two Fixture Mounting Screws ( A ) into the

pre-drilled Holes in the Mounting Strap ( B ) spaced the

same distance apart as the holes in the Ceiling Pan (D ).

Secure in place with the Small Hex nuts ( E ).

4. Attached Mounting Strap ( B ) to the junction box using

the two Screws ( C ) from the Outlet Box. The side of the

mounting strap marked “GND” must face out.

5. While holding the Ceiling Pan (D) toward the ceiling,

Connect the electrical wires as follows.

CONNECTING THE WIRES (Fig 2)

6. Attach the power supply wires to the fixture lead wires

by connecting BLACK to BLACK (or SMOOTH) and

WHITE to WHITE (or RIBBED).

7. Attach the GROUND wire(GREEN or COPPER) from

the Junction Box and the fixture Ground wire to the green

Ground Screw on the Mounting Bracket (B) or connect

both wires together using the correct size of wire

connectors. -

NOTE:Twist the wires together in the same direction

you twist the wire connector onto the wires.

8. Tuck these wire connections neatly into the Junction

Box.

FINISHING THE INSTALLATION(Fig.3)

9. Finish mounting the Ceiling Pan (D) by placing it over

the Mounting Strap (B). Rotate the Pan until the Mounting

screws(A) protrude through the “Keyholes” located in the

bottom of Ceiling Pan (D). Secure the Ceiling Pan (D) by

screwing Ball Nuts (F) on the Mounting Screws until taut.

10. Install glass as per the fixture assembly instructions.

YOUR INSTALLATION IS NOW COMPLETE. RETURN

POWER TO THE JUNCTION BOX AND TEST THE

FIXTURE.

For Flush mount Fixture

INSTALLATION INSTRUCTIONS

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

Fixture Name: Loretto 4002-FM RSB
