For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig 3

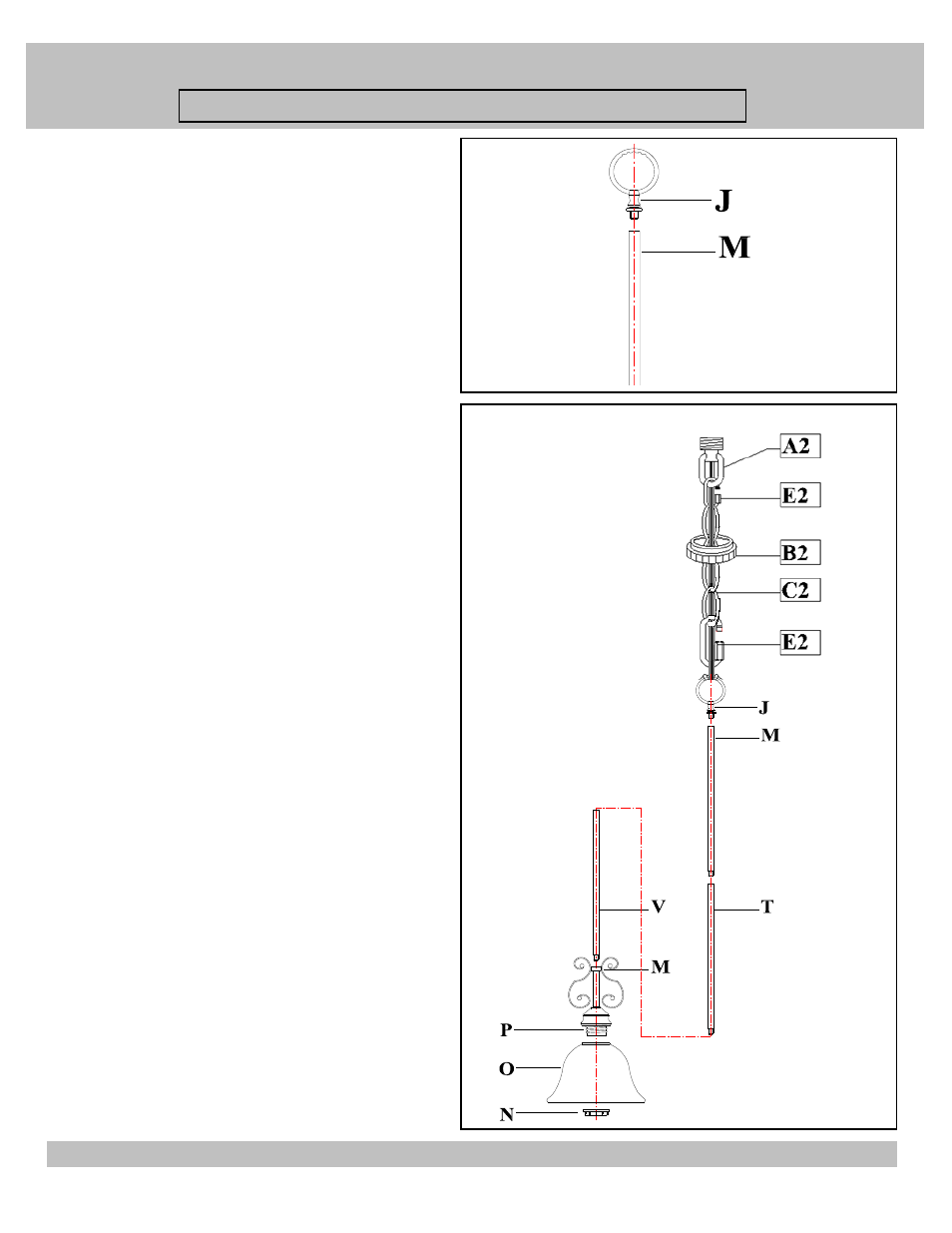

Fig 2 ASSEMBLING THE FIXTURE (Fig.2)
4. Feed the fixture wires through the Top loop (J) and rods
(M), pull the wires until taut.
5. Then screw the Top Loop (J) to the threaded center
column of Frame (M) until tight.
6. By measuring determine correct number of links needed
for proper hanging height. Use a pair of pliers to open one
link of the Chain (C2) then remove the excess Chain (C2)
and discard it.
7. Use one chain connector(E2) to attach one end of the
chain to the Top loop (J) and close the chain connector.
8. Feed the fixture wires through the Chain (every three
links) and pull the wires until taut.
9. Slip Canopy loop collar (B2) over the chain, then do the
same with the canopy (F2).
10. When ready to complete the installation Use the other
chain connector and attach the other end of the chain to the
canopy loop (A2) and close the chain connector.
11. Make sure the weight of the chandelier will be supported
by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the fixture is
hung.
12. Place the Glass Shades(O) over the Threaded
sockets(P),secure the Glass Shades (O) by
threading by the Socket Rings (N) until tight.
13. Install the light bulbs in accordance with the
fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
PARTS & ASSEMBLY SHEET
Fixture Name: Rockefeller 2488-M1L FI & 3711-M1L CB
24883711-PartsInstallation_20110105m.xls
