Golden Lighting 3711-17 CB - Manual

2488,3711-FM PartsInstallaton_20120313Rev.xls
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments
Nipple
1ea
1/8-IP*H160mm
Mounting Screws
2ea
5/32-IP*65
Metal washer &
plastic washer
2ea ∅1-1/2"*H2mm
Hex Nut
2ea
5/32-IP*H3mm
Mounting Strap
1ea W3-
7/8"*E1"*10mm
Deco Nut
1ea
1/8-27-IP*H32mm
Wire connectors
3ea
P3
Hex Nut
1ea
1/8-IP*H4mm
Bottom cap
1ea
∅2-1/4"*H36mm
Mounting Screws
2ea
8#32-IP*1"

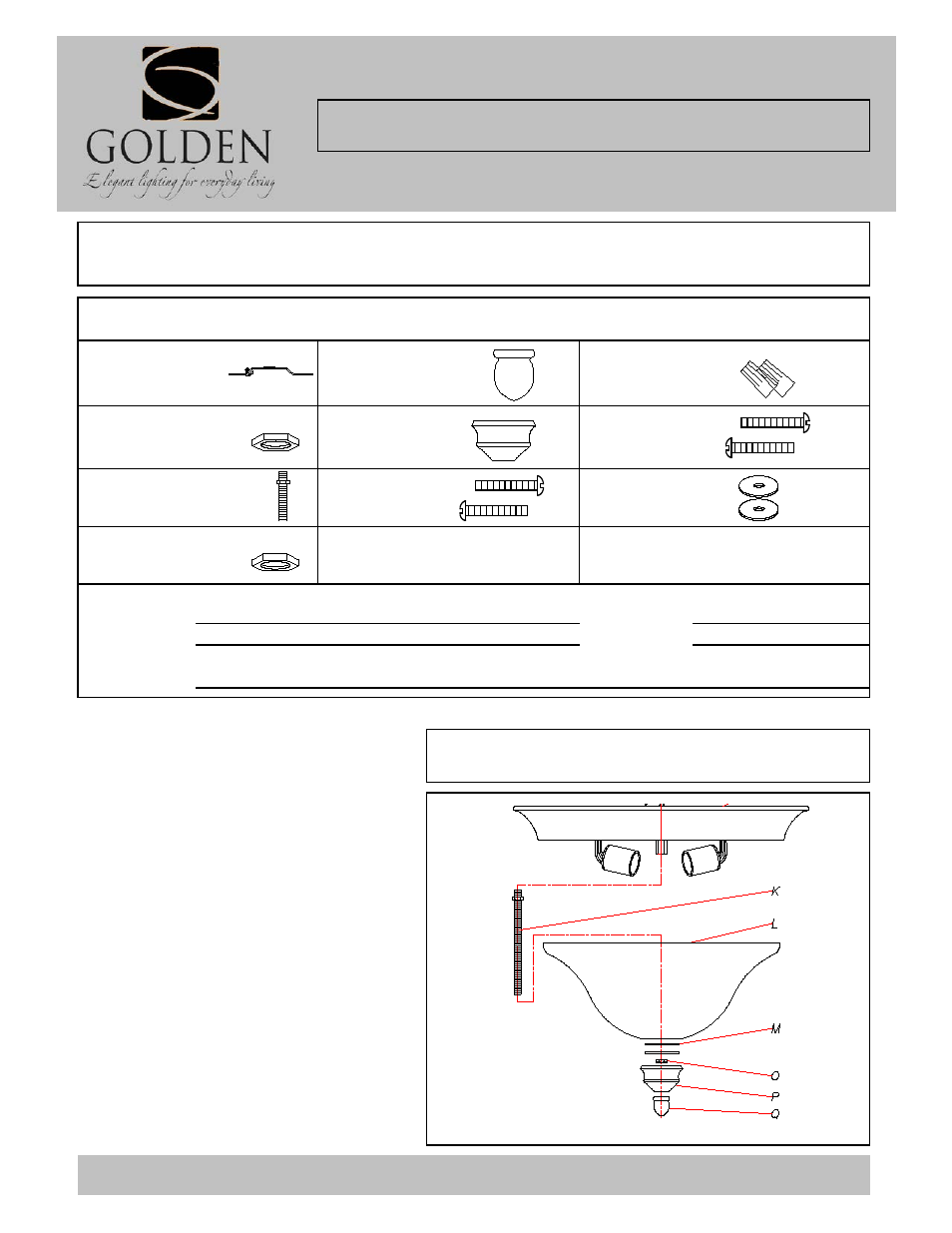

PARTS & ASSEMBLY SHEET
Fixture Name: Rockefeller 2488-17 FI & 3711-17 CB
This fixture assembled PO:__________ Date: ________
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are
missing or damaged, please note onthis sheet and contact the place of purchase to arrange for replacement
parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
to be filled out by retailer
For Customer Service, contact the place of purchase to arrange for replacement parts.
F IXTURE A SSEMBLY I NSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture.
2488-17 FI & 3711-17 CB
1. Thread the Nipple (K) into the Ceiling pan (J)
coupler and secure with Hex nut attached.
2. Install the light bulbs in accordance with the
fixture's specifications.
3. Place the Glass shade (L) over the Ceiling pan
(J) allowing the Nipple (K) to protrude through the
bottom hole in the glass. Place the Plastic washer
and Metal washer over the Nipple (K) tighten with
Hex Nut (I), slide Bottom cap (J) over Nipple (K)
and tighten with Finial (K).
(DO NOT EXCEED MAXIMUM WATTAGE RATING!)
Fig 1
NOTE: I NSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
