For Customer Service, contact the place of purchase to arrange for replacement parts.

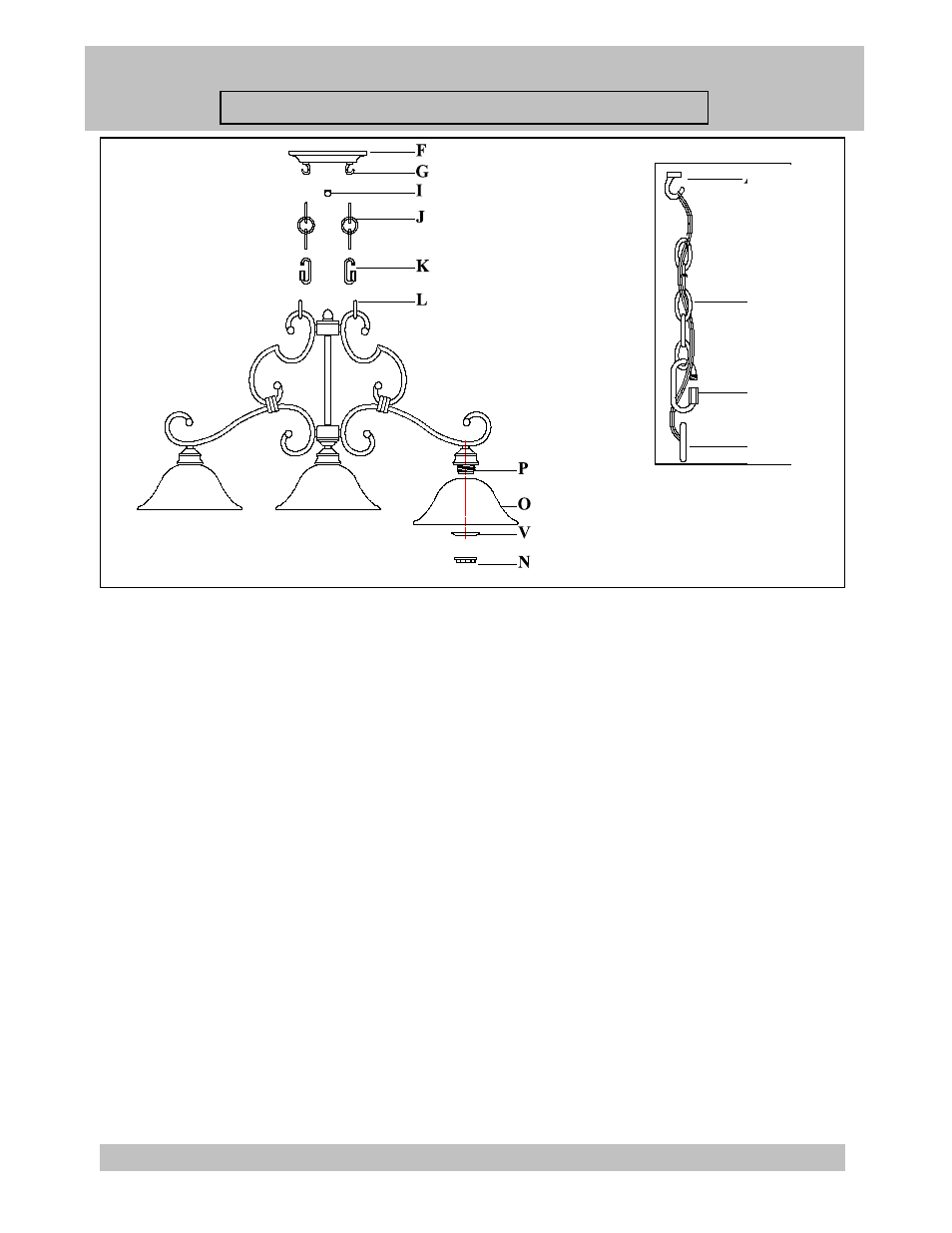

ASSEMBLING THE FIXTURE (Fig. 1)
1. By measuring determine correct number of links needed for proper hanging height. Use a pair of pliers to
open one link of the Chain (J) then remove the excess chain (J) and discard it.
2. Use Chain connector (K) to attach the Chain (J) to top loop of fixture Frame (L) and close the connector
as shown. Repeat for the second chain.
3. Lace the fixture’s wire through the chain links (J) (every three links) and pull until taut.
(the wires will run through just one side.)
4. Hook the top link of Chain (J) onto the Canopy loop (G).
5. Tread the fixtrue wires through the center hole in Canopy loop.
6. Make sure the weight of the chandelier will be supported by the chain-not the electrical wire.
* You may now install the fixture.
Note: Complete these remaining steps after the fixture is hung.
8. Place the Glass Shades (O) over the Threaded Sockets (P), secure the Glass Shades (O) by threading
by the Socket Rings (N) on until tight.
9. Install the light bulbs in accordance with the fixture's specifications.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
PARTS & ASSEMBLY SHEET
Fixture Name: Rockefeller 2488-10 FI & 3711-10 CB
G
J
K
L
