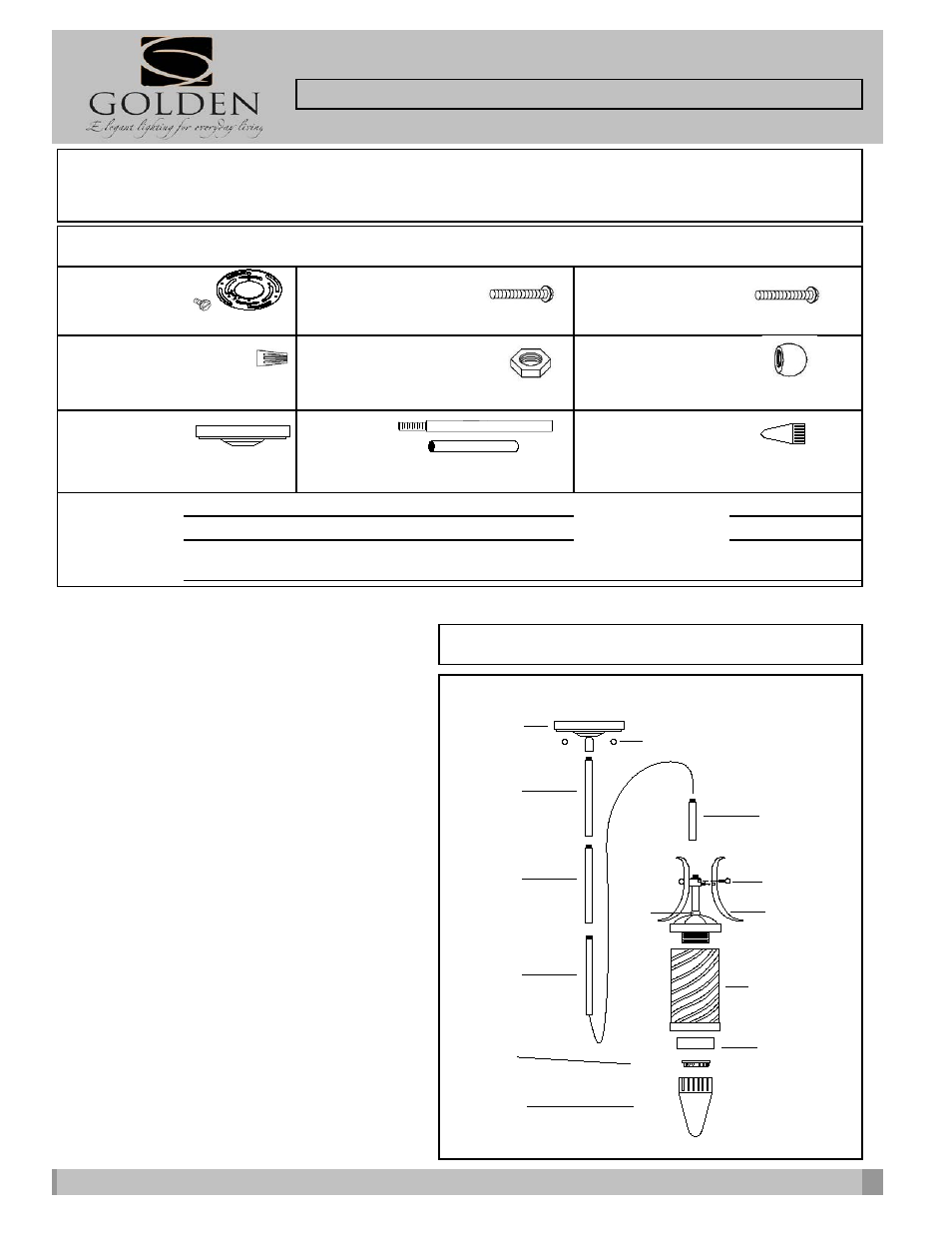

Golden Lighting 3082-M1L PW User Manual
Qy r, Parts & assembly sheet, Parts list

Mounting strap
Mounting Screw
Mounting screw
1ea 4"
2ea 8/32"X28mm
2ea 8/32X1"
Wire
connnector
Hex Nut
Deco nut
(round nut)
3ea P3 Orange
2ea 8/32"X3.5mm
2ea @10mm
Canopy
Rod
Socket Ring Tool
1ea D 5-1/8"*H1"
3ea 12.7mm* H12“
1ea 12.7mm* H6”
1ea D50mm*H110mm
Part Needed
Quantity
Part Needed
Quantity
Reason why
( missing, scratched, broken glass, bent, bad finish)
Comments
For Customer Service, contact the place of purchase to arrange for replacements.
F
IXTURE
A
SSEMBLY
I
NSTRUCTIONS
Read and review installation instruction sheet
before assembling the fixture.
3082-M1L PW
1. By measuring determine correct number of rods
needed for proper hanging height.
* This fixture includes 4 rods (6", 12", 12", 12")
2. To shorten the fixture, slide the excess rods off the
wires. To lengthen, add additional rods.
3. Pull the fixture’s wires through Rods (H,I,J,K) until
taut and thread the rods together. Then thread the
rods onto Fixture Body (L), and the swivel joint on
Canopy (G).
4. Slide Glass Shade (M) over the socket of Fixture
Body (L).Then put Socket Ring (Q) into the Socket
Ring Tool (Y). Secure the glass and metal Socket
Cover (P) by threading Socket Ring (Q) unitl tight.
5. Attach Decorative Arms ( R) to the fixture base by
inserting and tightening Thumb Screws (O).
6. Install the light bulb in accordance with the fixture's
specification.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING)
Fig. 1
NOTE: I
NSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
Notice:
Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing
or damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________Co. Account #:_____________
below to be filled out by retailer
PARTS & ASSEMBLY SHEET
Fixture Name: Wynn 3082-M1L PW
This fixture assembled PO:__________ Date: ________
