For Customer Service, contact the place of purchase to arrange for replacement parts.
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

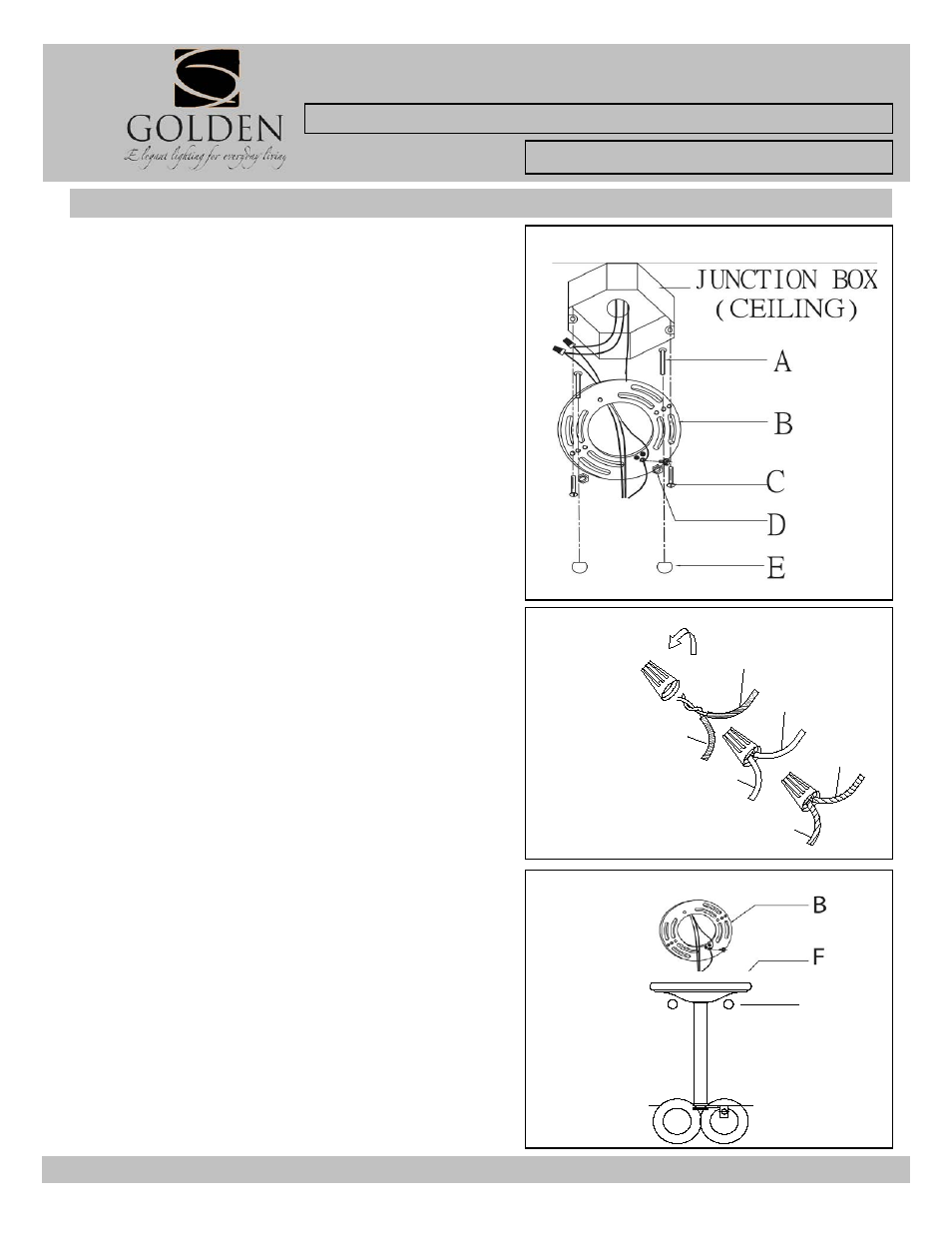

Fig. 1
Fig. 2
INSTALLATION INSTRUCTIONS
Fixture Name: Madera 1821-SF BI
For Semi Flush / Convertible Light Fixture
Fig. 3
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
E
HANGING THE FIXTURE as Semi Flush (Fig. 1)
1. Carefully remove the new fixture from the carton
and the yellow bag that holds all your parts. Check
that all parts are included as shown in the illustration
and parts list.
2. Shut off power at the circuit breaker and remove
the old fixture from wall, including the old mounting
strap.
3. The Mounting Strap (B) contains several pairs of
threaded holes. Find the pair of holes that matches
the holes spacing in your Canopy (F) and thread the
two Mounting Screws (A) into the Mounting Strap (B).
Secure in place with Hex nuts (D).
4. Place the Mounting Strap (B) over the junction box
so the Mounting Screws (A) will have their threaded
ends protrude through the two holes in the canopy
(F).
5. Attach the Mounting Strap (B) to the junction box
by using the two Mounting Screws (C). Tighten the
screws securely.
CONNECTING THE WIRES (Fig. 2)
6. Take the black wire from the ceiling junction box
and the smooth wire leg from the fixture and twist
bare ends together. Twist wire connector onto end of
wires until snug.
7. Repeat same process with white junction box wire
and ribbed wire of fixture.
NOTE: Twist wires together in the same direction
you twist the wire connector onto wires.
8. If your junction box has a grounding wire (green or
bare copper), attach this wire and the bare copper
wire from the fixture together as in step 7. If junction
box has no ground wire, attach the bare copper fixture
wire to the junction box with a screw.
9. Tuck these wire connections neatly into the
junction box.
FINISHING THE INSTALLATION (Fig. 3)
10. Place the fixture’s Canopy (F) over the Mounting
Strap (B) and over the Mounting Screws (A). Adjust
the fixture canopy until the Mounting Screws (A)
protrude out from the canopy. Secure the fixture
against the ceiling by threading the Decorative Nuts
(E) on until tight.
11. Install the light bulbs and glass shade according
to the fixture assembly sheet
