For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig. 2
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX
AND TEST THE FIXTURE.
INSTALLATION INSTRUCTIONS
Fixture Name:
Madera 1821-M1L BI
For Pendant Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

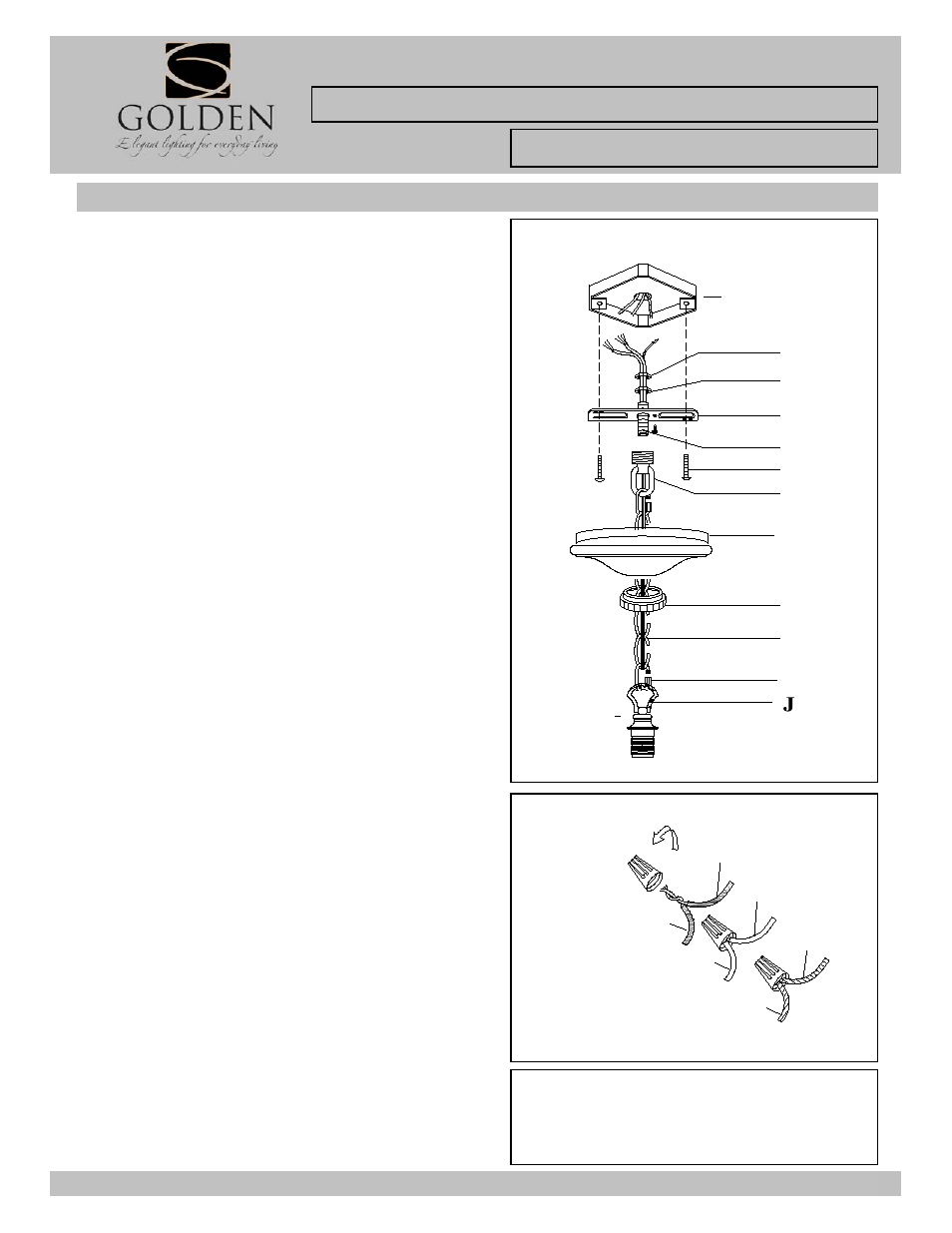

Fig. 1
L
B
C
A
JUNCTION BOX
(CEILING)
D
E
F
H
J
CHAIN
G
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and
the yellow bag that holds all parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off the power at the circuit breaker and remove old
fixture from ceiling, including the old mounting strap.
3. Thread Nipple(C) into Canopy Loop (F) until snug.
4. Thread other end of the Nipple (C) with Canopy Loop
attached into Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C)
protruding through Mounting Strap (D) and thread Hex
Nuts (A) onto Nipple until tight.
6. Take this mounting strap assembly and mount to
ceiling junction box with junction box Screws (E). Tighten
screw securely with screw driver.
7. Unscrew the Canopy loop collar (H ) from the Canopy
loop. Take the canopy and pass over the Canopy loop.
approximatly one half of the canopy loop exterior threads
should be exposed. Adjust until desired height is reached.
*the Canopy loop collar should fit snugly on the Canopy
loop after the canopy is installed. Remove Canopy and
Canopy lock collar.
8. Assemble the fixture and have an assistant or secure
support hold the weight of the fixture while you complete
the wiring connections.
9. Thread the fixture wires and ground wire of the
assembled fixture through the canopy loop and nipple and
into the outlet box.
CONNECTING THE WIRES (Fig. 2)
10. Attach the power supply wires to the fixture lead
wires by connecting BLACK to BLACK (or SMOOTH) and
WHITE to WHITE (or RIBBED).
11. Attach the GROUND wire(GREEN or COPPER) from
the Junction Box and the fixture Ground wire to the green
Ground Screw on the Mounting Bracket (D) or connect
both wires together using the correct size of wire
connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
12. Tuck these wire connections neatly into the Junction
Box.
13. Raise Canopy (G) to the ceiling and secure in place
by tightening the Canopy loop collar (H) into the Canopy
Loop (F).
