INSTALLATION INSTRUCTIONS
Fixture Name: Olympia 1648-5/9/M3/M1L BUS
For Pendant Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
Fig. 1
Fig. 2
Fig. 3

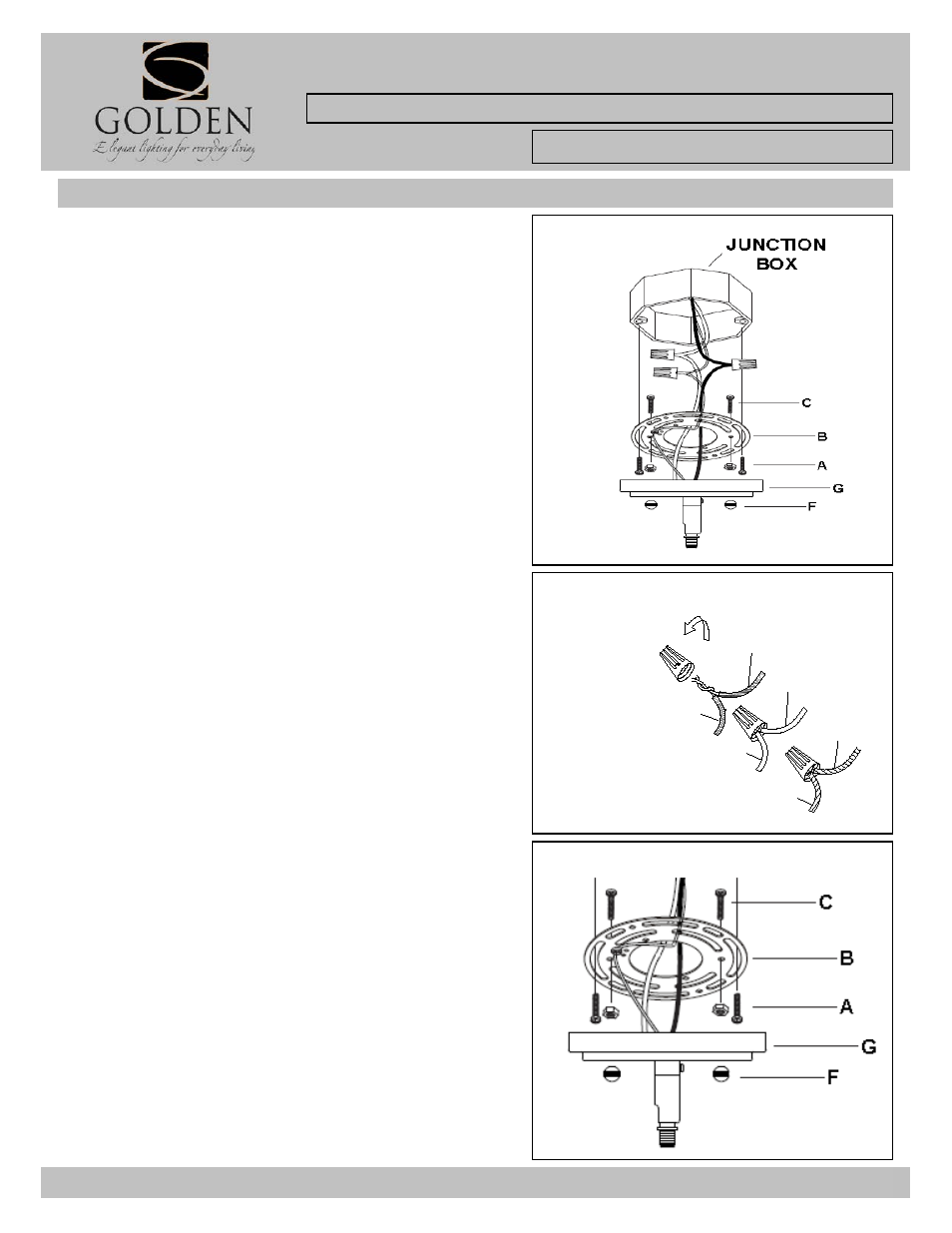

HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holes all your parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off power at the circuit breaker and remove the old
fixture from wall, including the old mounting strap.
3. The Mounting Strap (A) contains several pairs of threaded
holes, find the pair of holes that match the holes spacing in
your fixture Canopy (G) and thread the two Mounting Screws
(B) into the Mounting Strap (A). Secure with Hex nuts (C).
These will have their threaded ends protrude through the two
holes in the fixture canopy.
4. Place the Mounting Strap (A) over the Junction Box (E) so
the Mounting Screws (B) are vertical or horizontal, as required
by fixture type.
5. Attach the Mounting Strap (A) to the Junction Box (E) by
using the two Mounting screws (D). Tighten the screws securly.
CONNECTING THE WIRES (Fig. 2)
5. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
6. Attach the GROUND wire(GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (A) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you twist
the wire connector onto the wires.
7. Tuck these wire connections neatly into the Junction Box.
FINISHING THE INSTALLATION (Fig. 3)
9. Place the fixture Canopy (G), over the Mounting screws (B),
so they protrude through the holes in the Canopy (G).
10. Thread the Deco Nuts (F) onto the Mounting Screws (B)
and continue turning until the Canopy (G) is snug against the
ceiling.
11. Install glass shades as per the fixture assembly
instructions.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND TEST THE
FIXTURE.
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
