5.2 Handheld Microphone
The handheld microphone operates on UHF band frequencies with PLL synthesized control. 64 (AS-HH5) or 700
(AS-HH7) preprogrammed selectable UHF frequencies are provided to avoid interference. The AS-HH5 is equipped
with a uni-directional dynamic cartridge. The AS-HH7 is equipped with a uni-directional electret condenser cartridge.
Power is supplied by two 1.5V AA size batteries.

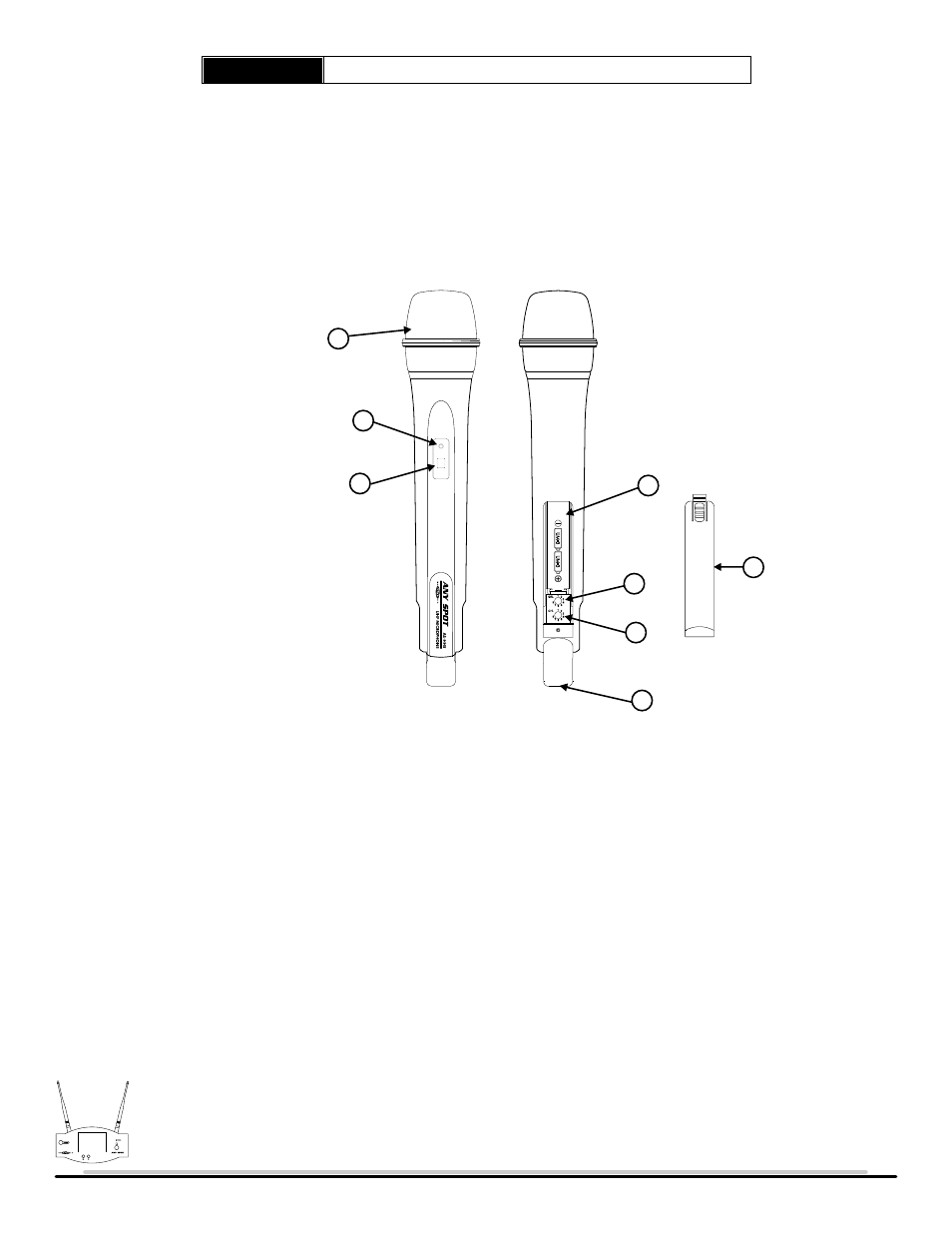

1. Grille: Protects the microphone cartridge and helps reduce breath sounds and wind noise.
2. Low Battery LED: LED indicates battery status. Switching the power to "ON” causes the LED to flash once
and then go out indicating that the batteries have sufficient power. If the LED stays on, it indicates that the batteries
have insufficient power and should be changed soon. If the status LED fails to flash, the batteries are either
dead or not positioned correctly, and you should correct the positioning or charge or replace the batteries
3. On/off Switch: Turns transmitter power on and off.
4. Battery Compartment: Insert two AA batteries into the compartment and make sure that the polarity of the
batteries is correct.
5. Group Selector: Changes transmitter group setting. (for 8 selectable frequency groups)
6. Channel Selector: Changes transmitter channel setting. (for 8 selectable frequency channels within each
frequency group)
7. Battery Cover: Slide the battery cover down to expose the battery compartment and the Group/Channel selectors.
8. Charging Input: If rechargeable batteries are used, they can be charged by using the supplied DC-plug
cable to connect the mic's charging input to the DC out on the receiver. Charging can take up to 10 hours.
