PRODUCT DESCRIPTION ANY SPOT
ANT B ANT A AUDIO OUTPUT
LINE
8V/80mA
DC OUT
BALANCED
UNBALANCED
DC OUT
8V/80mA
SQUELCH
12V 1A
DC ONLY
MIC
DC OUT
POWER
CHANNEL
CHANNEL
UHF RECEIVER AF RF
VOLUME
MHz FREQ VOL
AS –M700R 700 Channel, Diversity, 1/2
Rack, Detachable Antenna
AS-M700R
ANY SP T O
TRUE DIVERSITY
DC OUT
MIN MAX
G A L A X Y A U D I O
ANY SPOT UHF RECEIVER
POWER
HEADPHONE
VOLUME
CHANNEL VOLUME
RF AF
1 2 3 4 5 6 7
12 13 14 15 16 17 12
8 9 10 11

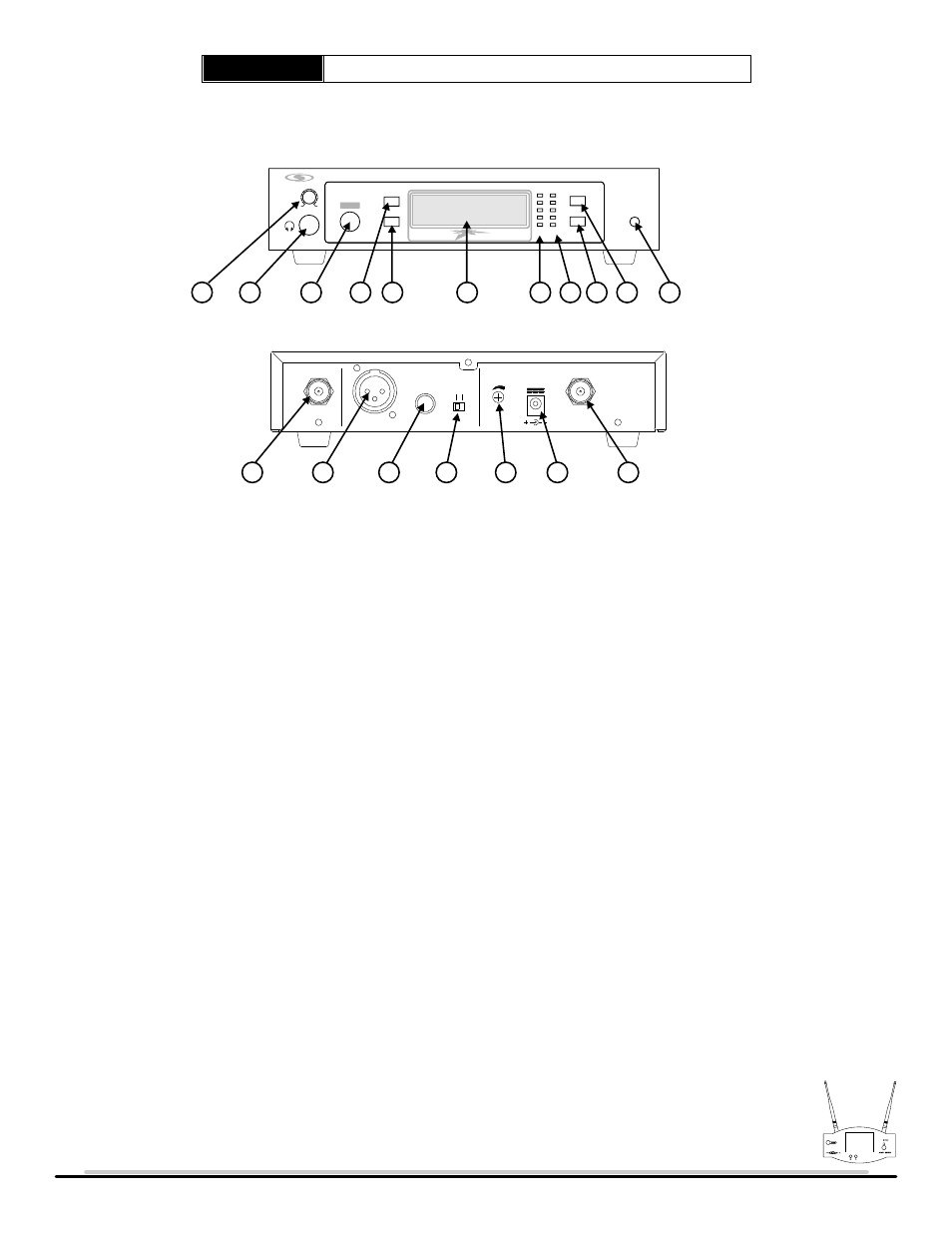

1. Headphone Monitor Volume Control: Rotate this knob to control headphone volume level.
2. Headphone Output Connector: Plug headphone into this ¼” (6.3mm) connector to monitor receiver audio.
3. Power: Switches the receiver on and off.
4. Channel Button: Press this button to adjust the channel upward.
5. Channel Button: Press this button to adjust the channel downward.
6. Programmable Display: Displays channel number, frequency, and volume level.
7. RF Level Indicators: Five LED's glow to indicate RF signal strength. The more LED's that glow, the stronger the received
signal. If none of these LED's glow, no signal is being received.
8. AF Level Indicators: Five LED's glow to indicate the audio signal strength being received from the transmitter. Green indicates
normal operation. RED indicates approaching overload condition.
9. Volume Button:
10. Volume Button:
11. DC Out: Using the supplied charger cable, the DC output supplies charging current to a transmitter equipped with
rechargeable batteries. Charging can take up to 10 hours. During charging the BATT indicator of the transmitter pulses constantly.
12. Antenna Input Connector: TNC-type connectors provide connection to the supplied antennas or to coaxial cable used
with an antenna divider, antenna boosters, or remote antennas.
13. Balanced Output: 3-pin XLR connector provides balanced mic level or line level output.
14. Unbalanced Output: ¼” (6.3mm) phone jack provides unbalanced mic level or line level output.
15. Mic/Line Switch: Selects the output range of the XLR balanced connector or the ¼” (6.3mm) unbalanced phone jack.
It can be set for microphone (-20dB) or line-level (0dB).
16. Squelch: This control helps suppress noise to keep it from entering the system. The higher the squelch control is set ,
the lower the sensitivity of the receiver and the smaller the service area of the system. Set the squelch to minimum before turning the
receiver on.
17. DC IN: Input connector for the supplied AC power adapter.
Press this button to decrease the receiver output level from within the range selected by the mic/line
switch. (15)
Press this button to increase the receiver output level from within the range selected by the mic/line
switch. (15)
