PRODUCT DESCRIPTION
ANY SPOT

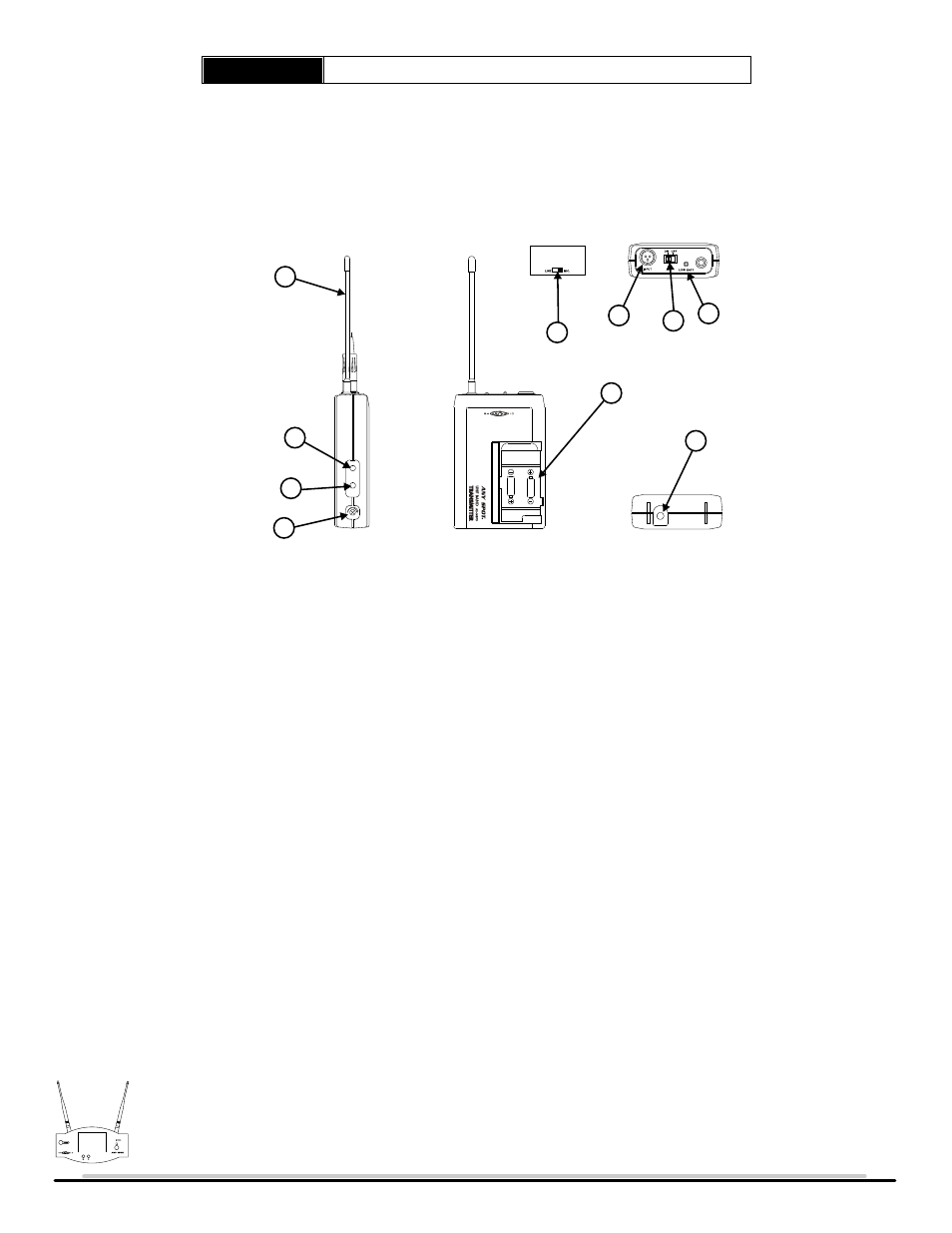

5.3 Bodypack Transmitter
AS-MBP5
The bodypack transmitter operates on UHF band frequencies with PLL synthesized control. 64 preprogrammed
selectable UHF frequencies are provided to avoid interference. Power is supplied by two 1.5V AA size batteries.
1. Mini XLR connector: Input connection for a microphone or instrument cable.
2. On/Off Switch: Turns transmitter power on and off.
3. Low Battery LED: LED indicates battery status. Switching the power to "ON” causes the LED to flash
once and then go out indicating that the batteries have sufficient power. If the LED stays on, it indicates
that the batteries have insufficient power and should be changed soon. If the status LED fails to flash,
the batteries are either dead or not positioned correctly, and you should correct the positioning or replace
or charge the batteries.
4. Mic/Line Selector: The switch sets the audio input either to microphone level or line level.
5. Antenna: Permanently connected, helical antenna.
6. Group Selector: Changes transmitter group setting. (for 8 selectable frequency groups)
7. Channel Selector: Changes transmitter channel setting. (for 8 selectable frequency channels within
each frequency group)
8. Gain: The rotary control adjusts the sensitivity of the transmitter to the level of the connected
lapel/headset microphone or instrument.
9.
10.
Battery Compartment: Insert two 1.5v AA dry or rechargeable batteries into the compartment
and make sure that the batteries are positioned for correct polarity.
Charging Input: If rechargeable batteries are used they can be charged by using the supplied DC-plug
cable to connect the charging input to the DC out on the receiver. Charging can take up to 10 hours.
8
WIRELESS MICROPHONE
UHF
GROUP
CHANNEL
GAIN
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
A
A
B
A
T
T
E
R
Y
A
A
B
A
T
T
E
R
Y
CHARGING
INPUT
1
2
3
4
5
6
7
8
9
10
