BASIC CONNECTIONS
6. Basic Connections
ANY SPOT

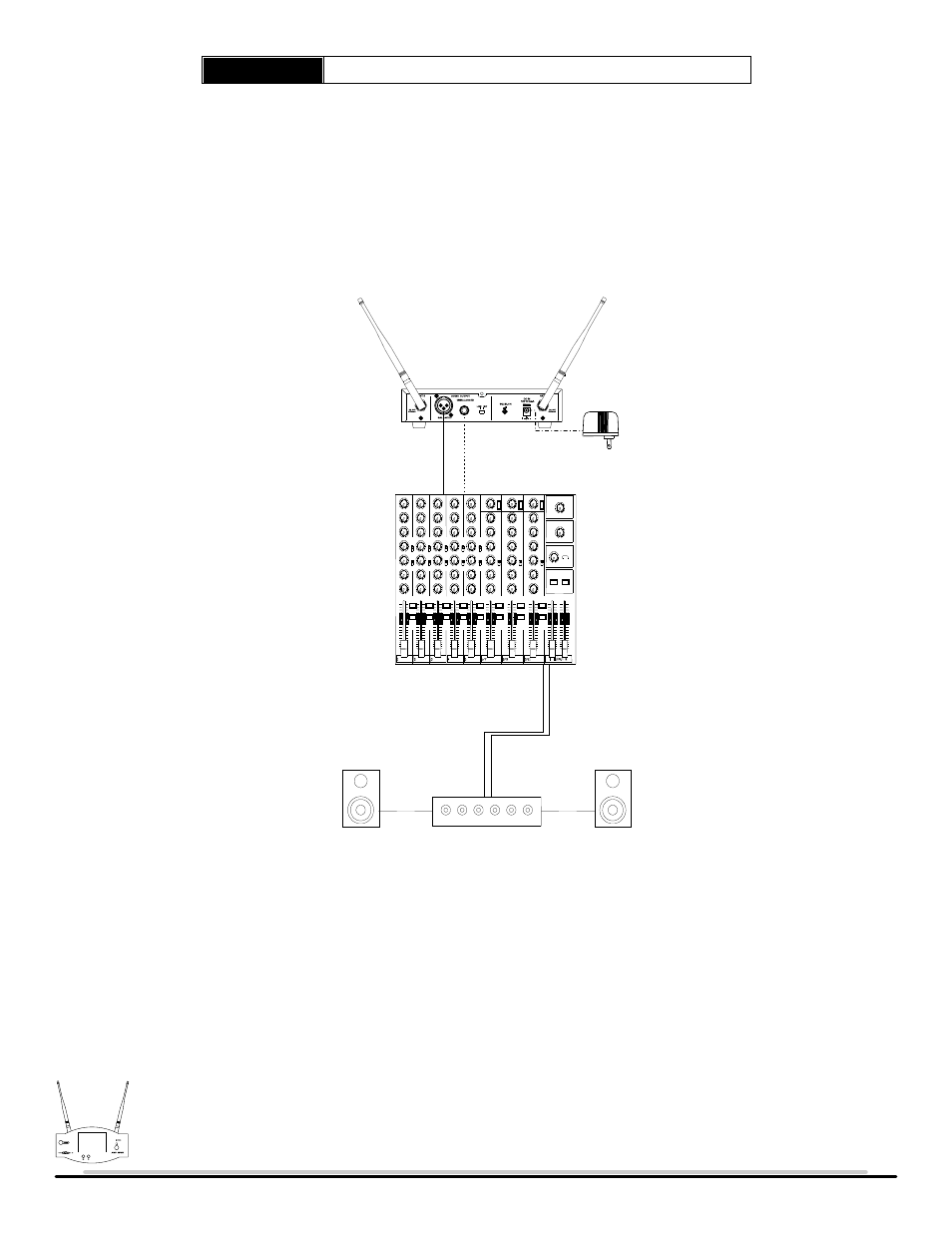

Connect the receiver output to the audio mixer or amplifier input, using a standard audio cables with 3-pin XLR
connectors or ¼” (6.3mm) phone plugs. Never use the balanced and unbalanced audio outputs at the same time!
This may cause signal loss or increased noise.
10
WIRELESS MICROPHONE
UHF
AUDIO MIXER
LOUDSPEAKER AMPLIFIER LOUDSPEAKER
