ESCRIPTION OF CONTROLS

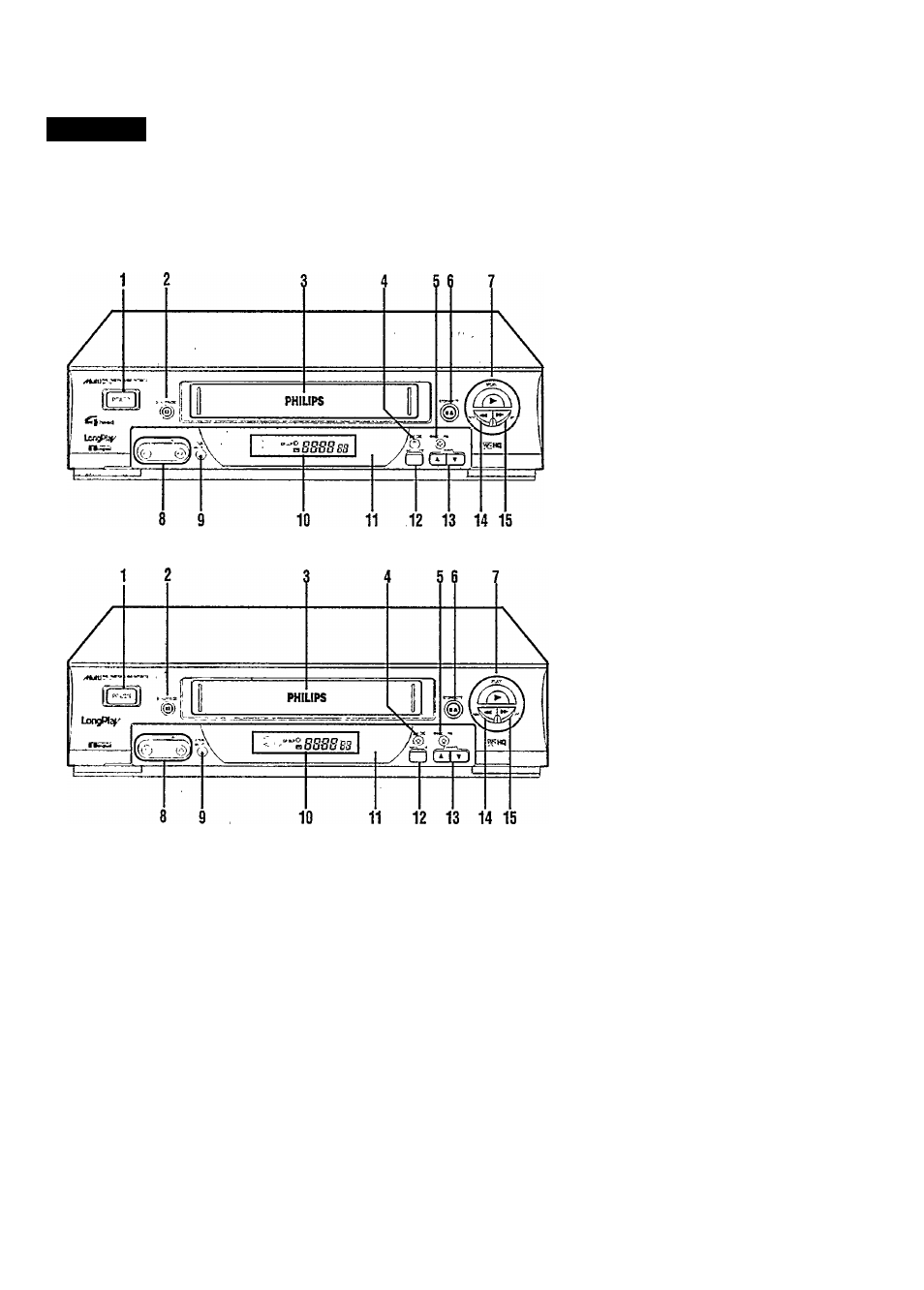

Front Panel
VR588/55
VR388/55
POWER button
• Turns the VCR on or off.
• Sets the VCR for an unattended
recording (timer recording) after
timer settings are completed. (>)-RlS)
STILL/PAUSE
II
button
Stops the tape during recording (pause)
or playback (still picture). (*)-R14, P.16)
Press again to resume normal recording.
Pre.ss PLAY ► to resume normal
playback. Activates slow motion picture
when pressed for more than 2 seconds
during playback.
3 Cassette Compartment
Where a video cassette is inserted.
4 ► /OK button
Changes the selection when using the
menus. (*>-P.ll)
5 REC (record)/OTR • button
• Starts recording when pressed once.
(>fP.14)
• Starts a recording for 30 minutes to 9
hours long for VR588/55 or 5 hours
long for VR388/55 when pressed
more than once. The shut-off time
increases in 30 minute intervals.
(>)-P.15)
6 STOP/EJECTa/i^ button
Stops the tape when the tape is running.
(•>-PJ4)
Press again to eject the cassette when
the tape is not running. (>)-P.14)
7 PLAY ► button
Starts normal playback. (>)-P,14)
8 AUDlO/ViDEO input jacks
For connecting another VCR or a
portable video camera. (A-P.19)-
9 COLOUR MODE button
.Selects the colour mode both for
playback and recording. (*>-F.13)
10 Display window
' See the next page.
11IR (infrared) remote sensor
Receives the signal from the (IR)
remote control.
12 MENU/EXIT button
Display the main menu.
Press again to exit from the menu
operations. (>)-P.ll)
13 CHANNEL ▼ /A buttons
• Changes the channels on the VCR.
Release at a desired channel.
• Moves the cursor up and down when
using the menus. (>)-P. 11)
'
• Adjusts the tracking during playback,
still picture, and slow motion picture.
(>)-P.17)
14 REW (Rewind
) «
button
• Rewinds the tape when the tape is not
tunning. (•FP.14)
• Starts reverse rapid visual search
during playback. (>FP.14)
15 FF (Fast forward) ► ► button
• Fast forv/ards the tape when the tape
is not running. (■)-P.14)
• Starts forward rapid visual search
during playback. (*)-P.14)
— 3 —
