D OO R LOCK TIM

ER

BEEP

GLED
RLED

INWD0
INWD1

GND

+12V

GND

+12V

485B
485A

GND

232T
232R

GND
WD1
WD0

RJ45-1
RJ45-2
RJ45-3
RJ45-4

NC2

COM2

NO2
NC1

COM1

NO1
BUT
GND

SEN

WIRES

Connects to the master

terminal and obtains

power supply

Back of a Master Terminal

BEEP

GLED

INWD0
INWD1

GND

+12V

DC 12V 3A

Power Supply

Pur

ple

Gre

y

Green

White

Black

Red

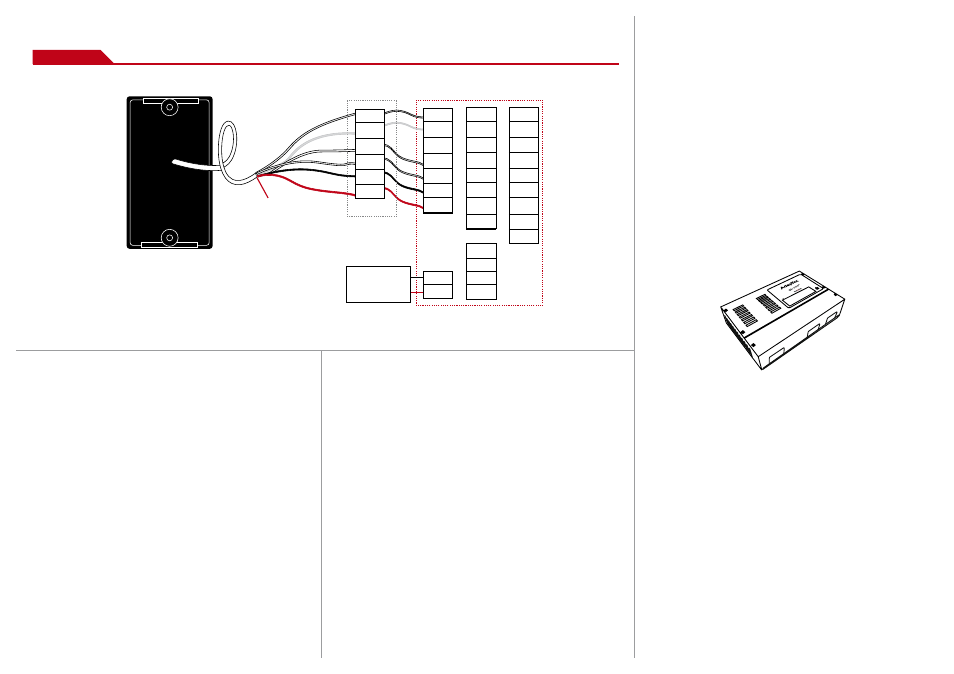

Connection of i-Kadex to Kadex

i-Kadex

Step 4

Setting Up Data Communications

(Skip this step if you are using USB flash disk to transfer data)

The data communication ports are positioned at the rear of the

terminals, please refer to the diagrams shown on Step 3 to deter-

mine the wiring. Plug the communication jacks (TCP/IP, RS232 or

RS485) to the corresponding ports.

TCP/IP – LAN Connection

For TCP/IP connection, plug the special RJ45 jack into the TCP/IP

(LAN) Port of the terminal. Connect the other end (normal RJ45

jack) to the local area network hub or a PC. Configure the device

ID, IP address, subnet mask and Gateway in the terminal (refer to

the hardware user manual for details).

RS232 – Serial Port Connection

Plug the communication jack that is provided in the package to

connect to the communication port of the terminal. Select wires

with label RX, TX and GND, and connect the other end of these

wires to a DB9 female connector. Configure the device ID and

Step 5

Finalizing the installation

1. Check that all cable connections are done correctly.

2. Attach the terminal to the corresponding back plates,

tighten the screws to secure the terminal on the wall

3. Switch on the power to the terminal.

4. Start using the terminal.

Other Accessories

Note:

All Accessories are offered at

http://accessory.fingertec.com

AdapTec

AdapTec AC

The AdapTec AC is a 12VDC power supply inclusive of a 110~240VAC
switching linear power. The AdapTec supplies 12VDC power to
the FingerTec terminal and door lock system as well as charges a
12VDC 7.0Ah backup battery simultaneously. During an event of
a power failure, the back up battery automatically provides power
to the terminal and maintains the door lock system. The AdapTec
AC also prevents a secured door from being opened if it has been
tampered with.

Enclosures

FingerTec offers enclosures to protect the terminals from being
meddled with by unauthorized persons.

Door Lock Accessories

FingerTec offers various door locks accessories to complement Fin-
gerTec door access product range.

baudrate of the terminal (refer to the hardware user manual for details).

Use the normal RS232 cable to plug into the RS232 port of the termi-

nal.

RS485 – Serial Port Connection

Plug the communication jack that is provided in the package to con-

nect to the communication port of the terminal. Select wires with label

RS485+, RS485- and GND, and connect the other end of these wires to

an RS232/485 data converter. Connect the other end of the data con-

verter to a DB9 female connector. Configure the device ID and baudrate

of the terminal (refer to the hardware user manual for details).
