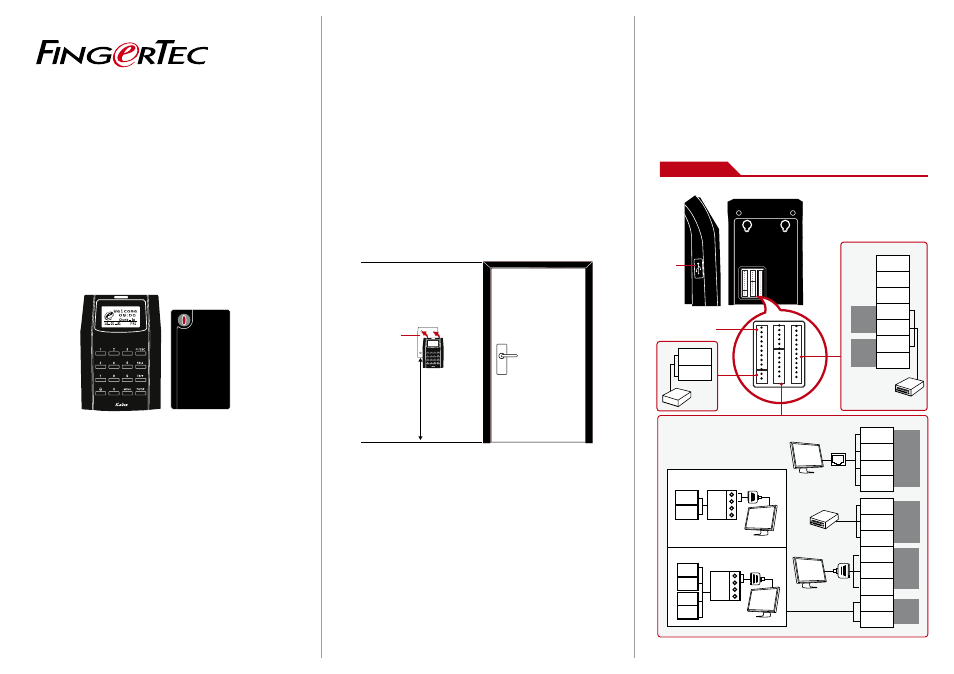

FingerTec i-Kadex Installation Guide - Manual

..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
Back Plate
4 feet / 1.2 meter
(recommended)
USB
Port
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
GND
+12V
DC12V 3A
Power
Supply
BEEP
GLED
RLED
INWD0
INWD1
GND
+12V
Wiegand
IN
Power
OUT
3rd party
controller with
26 bits wiegand
output
RJ45-1
RJ45-2
RJ45-3
RJ45-6
WD0
WD1
GND
RXD
TXD
GND
485+
485-
TCP/IP
Wiegand
OUT
RS232
RS485
3rd party controller
with 26 bits wiegand
input
RS232
cable
TCP/IP
RX+
RX-
1. RS485 Single Connection
RS232/RS485
Data Converter
485B
485A
RX+
RX-
RS232/RS485
Data
Converter
2. RS485 Network Connection
485B
485A
485B
485A
i-Kadex
Door Lock connector.
Refer to Appendix I
Step 1
Determine the Location and Positioning
of the Installation
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting of Terminals on A Wall
•
After determining the height of the terminal from the ground
level and have made the relevant marks on the wall, drill the
screws into the wall to hang the back plate.
Refer to Appendix II for dimensions and measurements of instal-
lation.
Installation Guide
We Make Things Easy
w w w . f i n g e r t e c . c o m
Kadex & i-Kadex
Card Reader for Time Attendance &
Door Access Control System
Step 3
Wiring for Power Supply
The power input ports for these models are located at the rear of
the terminals. There is no adapter plug supplied with the models,
instead you need to source for power cable (red and black cables)
to connect the power from the terminal to the AdapTec.
Kadex
