Installation
Note: Please read the instructions carefully before installing the i-Kadex.
i-Kadex is powered by the master terminal, therefore requiring no extra power supply. View the
details in the wiring diagram.

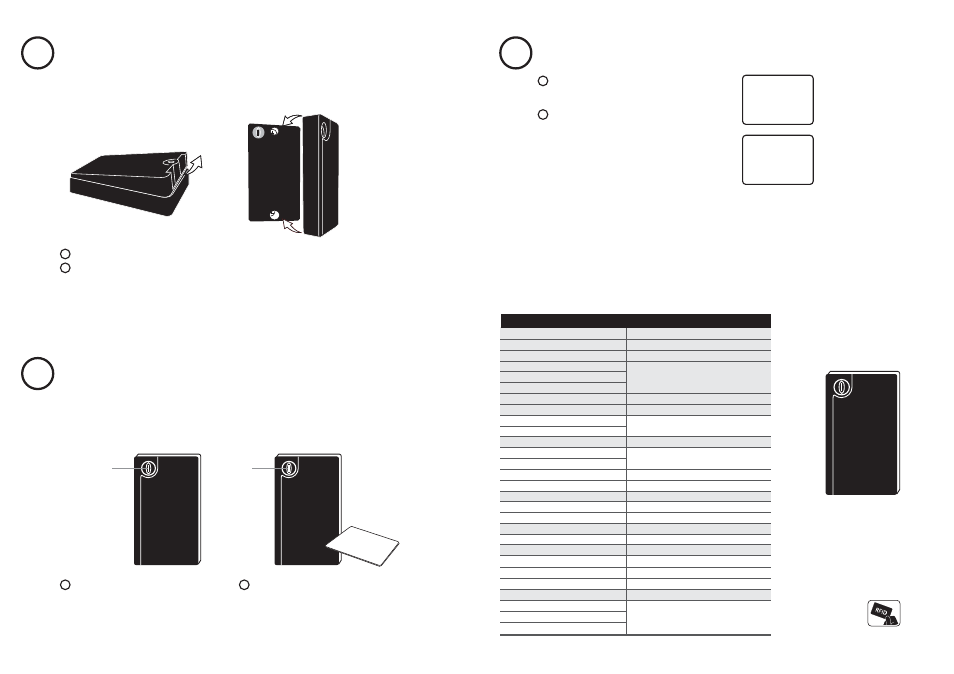

Remove the back piece of the i-Kadex.
Tighten the 2 screws to fix the back piece of the i-Kadex onto a wall. Place the front cover of
the i-Kadex into position. 1
1 2
2
Verification • Master terminal indication
Once the master terminal verifies the card,
the prompt “Verify” will be displayed.
If the card has not been enrolled or if there is
something wrong with the card, the master
terminal will prompt an “oo..oo..” sound
indicating verification failure.
Verification • Card
i-Kadex is a slave terminal for a card system. It reads card ID and sends the information to a
master terminal for verification. i-Kadex does not come with a memory, therefore it cannot
perform card registration. Kindly make sure that card information is enrolled into the master
terminal.
1
2
A Firm Access
with FingerTec
i-Kadex
SPECIFICATIONS
MODEL
SURFACE FINISHING
TYPE OF SCANNER
PROCESSOR
MEMORY
ALGORITHM
PRODUCT DIMENSION (L X W X H), mm
STORAGE
• Cards
• Transaction
ENROLLMENT & VERIFICATION
• Methods
• Card per user ID
• Reading distance, mm
• Verification time (sec)
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz
• MIFARE: MFIS50/S70, 13.56MHz
COMMUNICATIONS
• Method
OPERATING ENVIRONMENT
• Temperature (°C)
• Humidity (%)
• Power input
ACCESS CONTROL
• EM lock driving output
• Alarm output
• Antipassback
i-Kadex
Polycarbonate
RFID antenna
Managed by master
55 x 15 x 100
Storage in master
Card capturing station
40 ~ 80 (RFID), 30 ~ 50 (Mifare
Manage d by master
Yes
Made to order
Wiegand 26-bit output
-10 ~ 70
20 ~ 80
DC 12V 1A
Managed by master
Verify
CARD: 0003837885
USER ID: 00001
VERIFIED
Verify PIN Card
No enroll
3
4
5
Card
Red light Green
light
Make sure that the i-Kadex is in
standby mode and your card has
been enrolled into a master
terminal. Wave your card at the card induction
area. Once the i-Kadex reads the card
information, the LED will turn green and
send the information to the master
terminal for verification.
