USAGE
Dry Contact
(independ-ent power supply for door lock)
• NO type door lock (NO-COM)
• NC type door lock (NC-COM)
Power Contact
(using power from terminal to power on door lock)
• NO type door lock (NO-GND)
• NC type door lock (NC-GND)
Dry Contact
(independ-ent power supply for door lock)
• NO type door lock (NO-COM)
• NC type door lock (NC-COM)
Power Contact
(using power from terminal to power on door lock)
• COM1 - +12V
Door Sensor
(SEN-GND)
Release Button
(BUT-GND)
Door Bell
Alarm System
NO or NC Type – Check in
Advance Options
WIRING
PORT
NO
NC
COM
SEN
GND
BUT
Bell+
Bell-
AL+
AL-
Appendix I

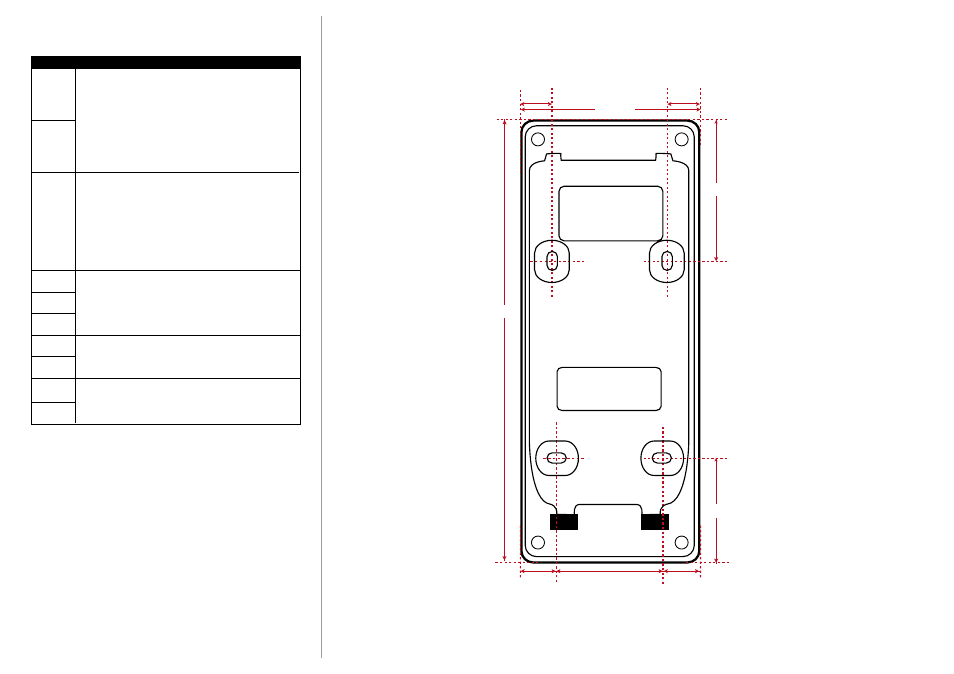

Terminal Dimensions and Measurements
Front View of Back Plate
Door Lock Connectors
The terminal will trigger the alarm output (NO or NC) in the following
situations:
• Door forced open (A door sensor must first be installed)
• Door open time out (A door sensor must first be installed)
• Terminal has been illegally dismantled.
78 mm
44mm
62mm
190 mm
44mm 17mm 17mm
17mm 17mm
