SHOCK CORD
MOUNT
SECTION
3
SECTION
2
SECTION
1
TUBE MARKING GUIDE
SHOCK CORD MOUNT
LARGE TANK
LARGE TANK
LARGE TANK
LARGE TANK
CUT OUT
CUT OUT
CUT OUT
CUT OUT
LEG HOUSING
LEG HOUSING
LEG HOUSING
LEG HOUSING
LEG HOUSING
LEG HOUSING
LEG HOUSING
LEG HOUSING
LAUNCH LUG
OVERLAP TAB

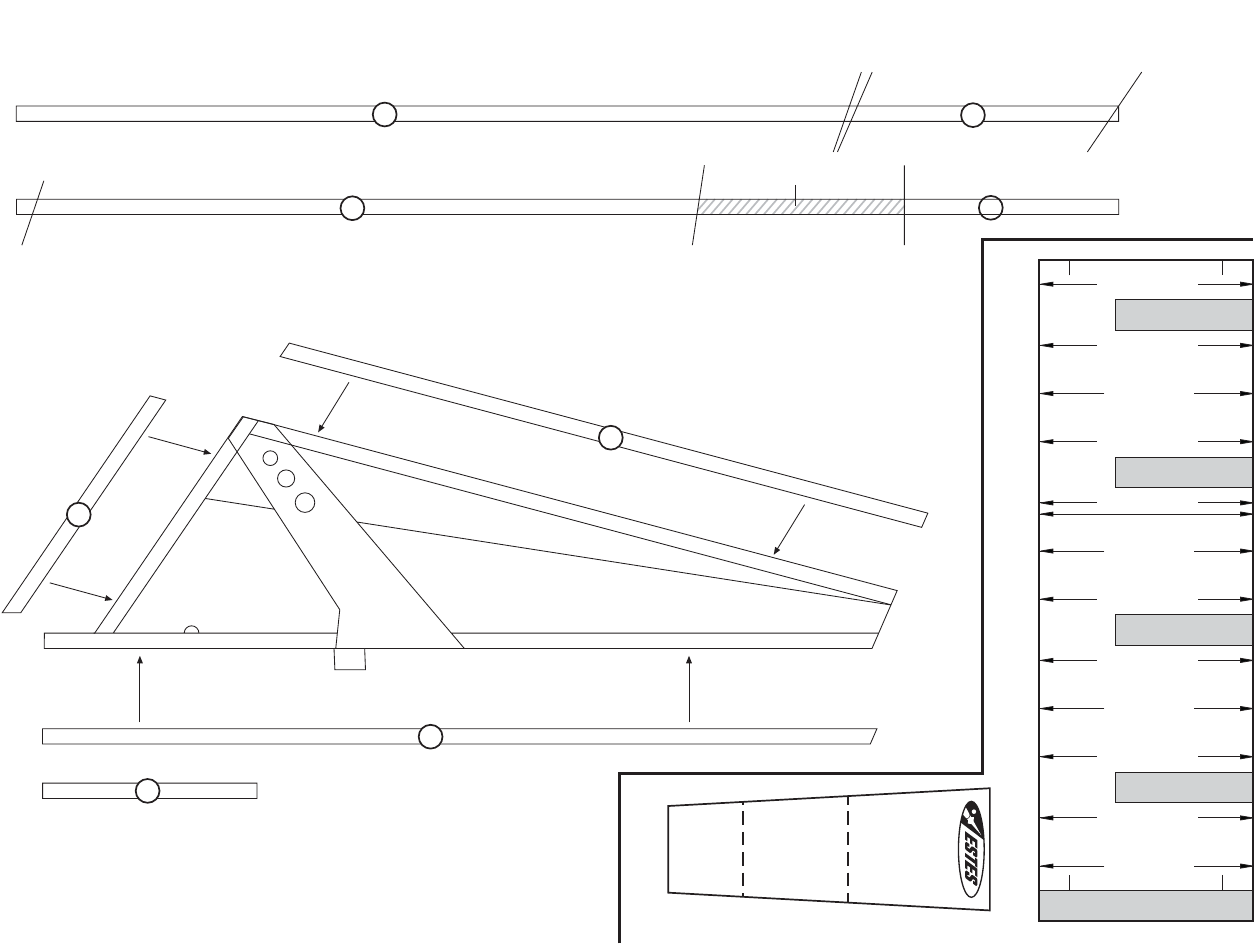

1/8" x 9" WOOD DOWEL CUTTING GUIDE
A
CUT 4 DOWELS TO PATTERN 1
PATTERN 1
CUT 4 DOWELS TO PATTERN 2
PATTERN 2
C
NOTE:
Lay dowels over pattern and carefully cut with razor saw. Lightly sand ends smooth. Cut the exact length and angles
shown above.
A
B
C
D
FITS INTO HINGE (STEP 2)
DISCARD THIS SECTION
D B
Drawing below shows the placement of the dowels on the leg assemblies. You will build four leg assemblies.
