Estes 2053 - Paveway - Manual

ESTES ® INDUSTRIES
1295 H Street
Penrose, CO 81240
PRINTED IN CHINA
www.estesrockets.com

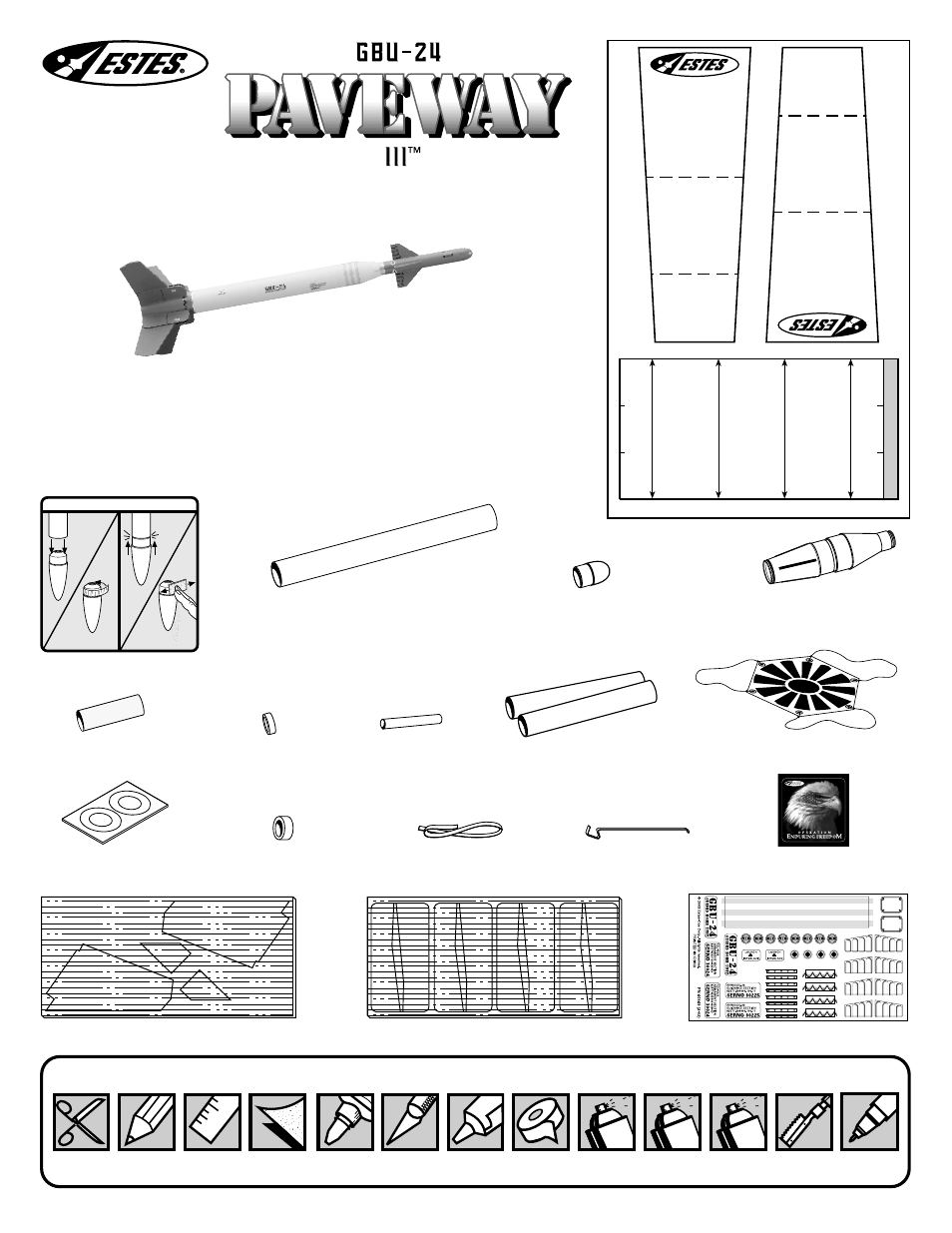

PARTS:
Locate the parts shown below and lay them out on the table in front of you. DO NOT
USE THIS DRAWING TO ASSEMBLE YOUR ROCKET.
ASSEMBLY TIP:
Read all instructions before beginning
work on your model. Make sure you have
all parts and supplies.
KEEP FOR FUTURE REFERENCE.
HELPFUL HINT: IF NOSE CONE/COUPLER FIT IS. . .
TOO
TIGHT TOO
LOOSE
ADD
MASKING TAPE.
SAND FOR FIT.
FLYING MODEL ROCKET KIT INSTRUCTIONS
EST 1247/2053
TEST-FIT ALL PARTS TOGETHER
BEFORE APPLYING ANY GLUE!
If any parts don’t fit properly, sand as required
for precision assembly.
Body Tube BT-55 (1)
(30374)
Die Cut Balsa Sheet (2)
(32218)
Centering Ring Card (1)
(30126)
Mylar Retainer
Ring (1)
(30168)
Green Engine
Block (1)
(30162-2)
Shock Cord (1)
1/8" x 18"
(38374)
Assembled 12” (30 cm) Parachute
(35801)
Plastic Tail Cone and
Adapter (1)
(60568)
Decal Sheet (1)
(60569)
Die Cut Balsa Sheet (1)
(32219)
SHOCK CORD
MOUNT
SECTION
3
SECTION
2
SECTION
1
SHOCK CORD
MOUNT
SECTION
3
SECTION
2
SECTION
1
FIN FIN FIN FIN
TUBE MARKING GUIDE
MA
TCH LINES
UPPER TUBE MARKING GUIDE
GBU-24 PAVEWAYIII EST 2053
Operation Enduring Freedom
sticker (1)
(60586)
Nose Cone (1)
(60567)
Yellow Spacer Tool (1)
(35003)
Launch Lug (1)
(38178)
Body Tube BT-20 (2)
(30329)
Engine Hook (1)
(35021)
SUPPLIES In addition to the parts included in the kit you will also need:
SCISSORS PENCIL RULER FINE
SAND PAPER
(#400-600 GRIT)
CARPENTER’S
GLUE
MASKING
TAPE
SPRAY
PRIMER
WHITE
SPRAY PAINT:
WHITE, OLIVE
DRAB, RED
PLASTIC
CEMENT MODELING
KNIFE
SPRAY
DULL
COAT
RAZOR SAW SILVER PAINT
PEN
