38VYX050/38VYX080
GB - 6

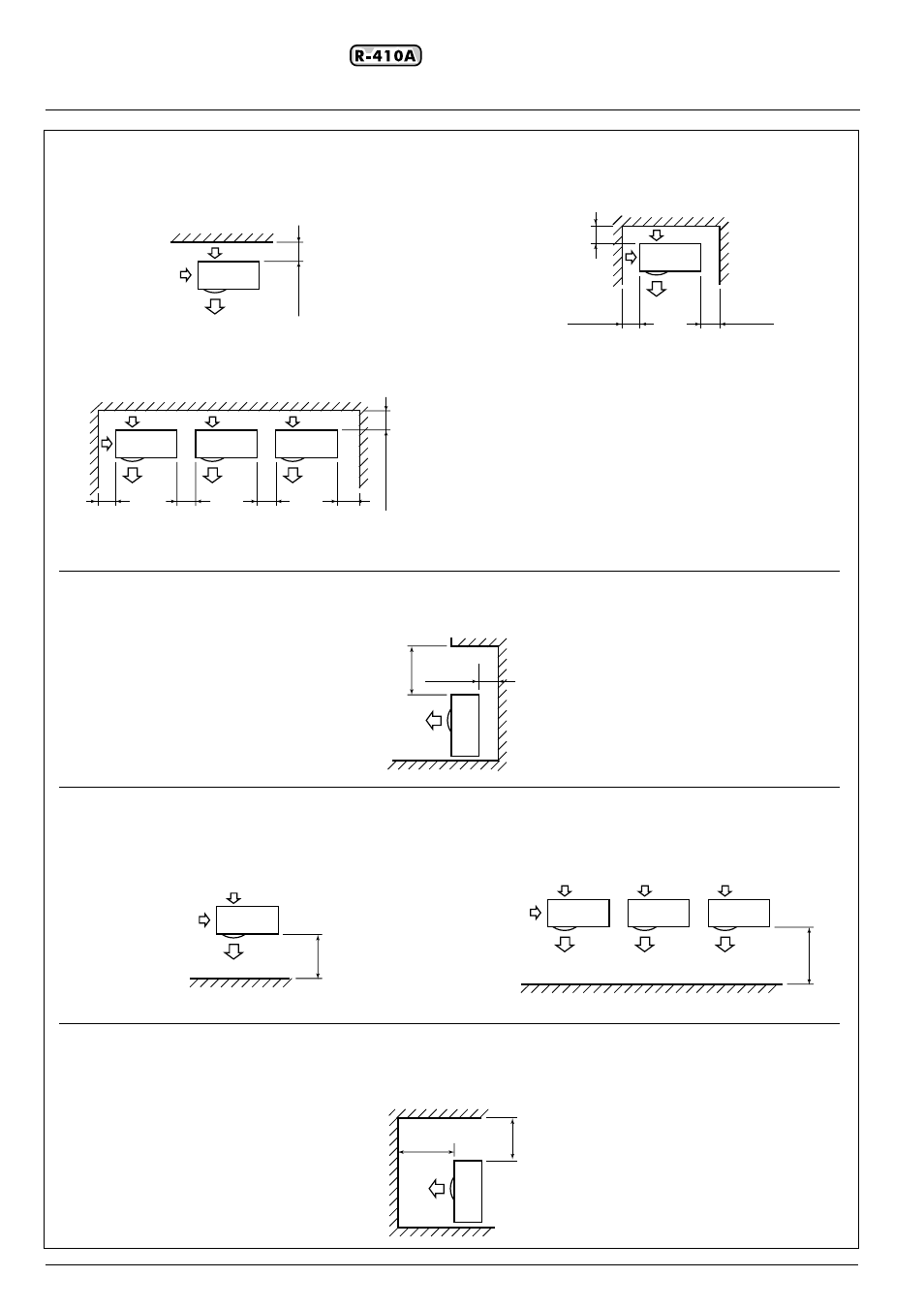

Minimum clearances
Single unit installation Obstacles at both right and left sides.
Serial installation of two or more units
Single unit installation Obstacles at both right and left sides.
1000
or more
1000
or more
• The height of the obstacle should be lower than the height of the outdoor unit.
• The height of the obstacle should be lower than the height of the outdoor unit. 150
or more
300
or more
300
or more
300
or more
200 or more
150
or more
500
or more
500
or more
1000
or more
Obstacle at rear side
Upper side is free
150
or more
200
or more
150
or more
300
or more
Obstacle at rear side
Obstacle also at the upper side
Obstacle at front side
Upper side is free
Obstacle at front side
Obstacle also at the upper side
