DLE 30 - Manual (Page 6)

6
three pin connector with pig tail. Use one of the included three pin
securing clips to secure the connection.
4. Connect the ignition module battery to the kill switch. Any 4.8-
6.0V, 1000mAh and above capacity battery will work well for this.
Use heat shrink tubing to secure this connection.
5. Install the ignition kill switch on the aircraft so that it is easily
accessible through the cowling or the fuselage.

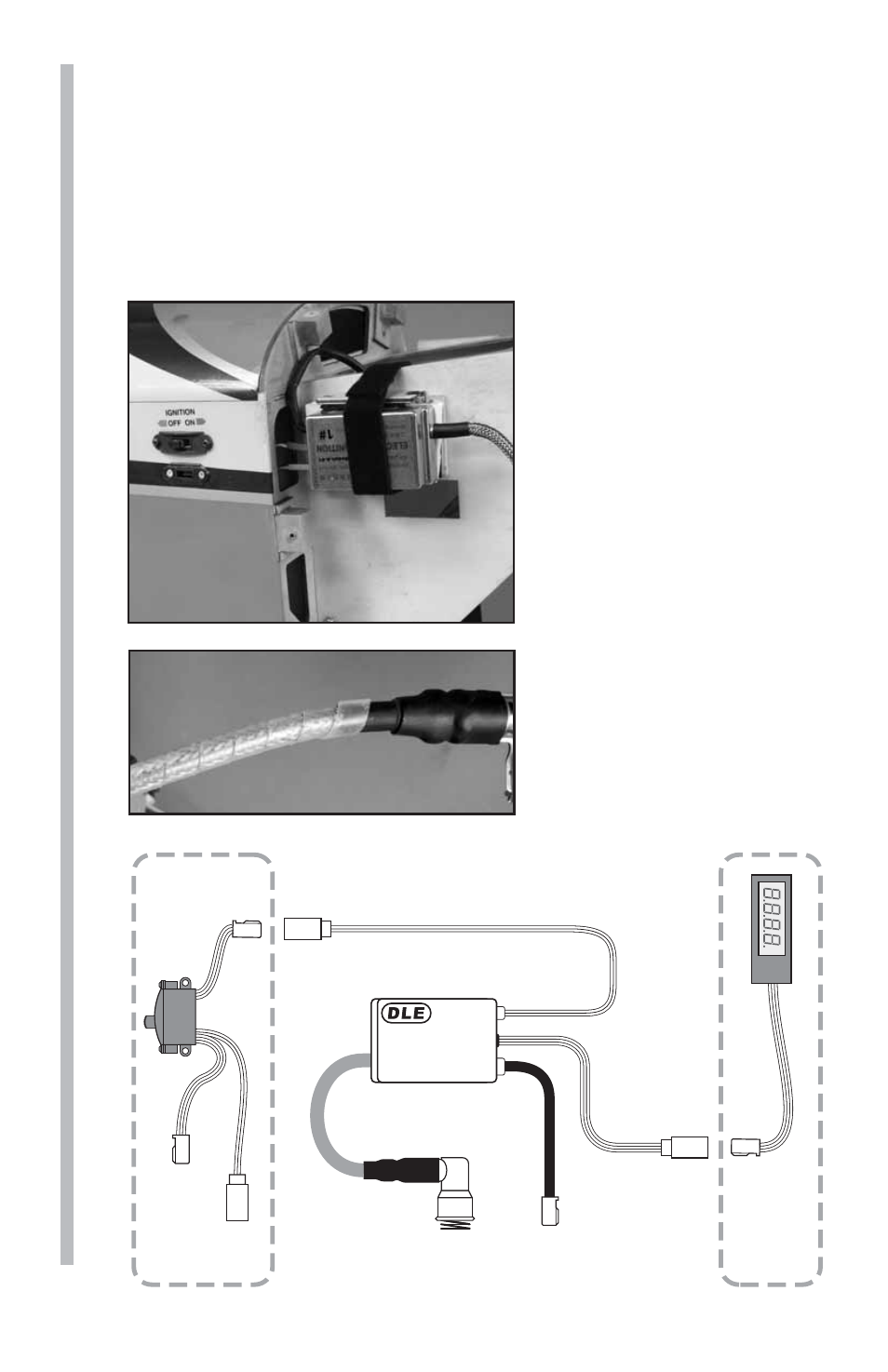

6. Install the ignition module
and battery securely in the
airplane forward area. It is
recommended that a thin
piece of foam rubber is
placed between the module
and the mounting surface
and that Velcro® is used to
hold the module in place.
7. Secure all connections
with heat shrink tubing. (not
supplied)
8. Install the silicone ignition
wire cover over the ignition
wire to the spark plug.
9. Install the spark plug into
the engine cylinder (7-8lbs
Torque).
Ignition Wire
(To Spark Plug)
Ignition Control Switch Wire
(To On/Off Switch)
Pick-Up
Sensor Wire
(To Sensor On Engine)
Tachometer
Lead/
RPM
Signal
Out-Put
ELECTRONIC IGNITION
SYSTEM
Battery
Lead
Charge
Lead
Switch
(Not included)
Optional
Tachometer
(Not included)
