9 Manual de Colgado / convert 15A series / Rigging Manual

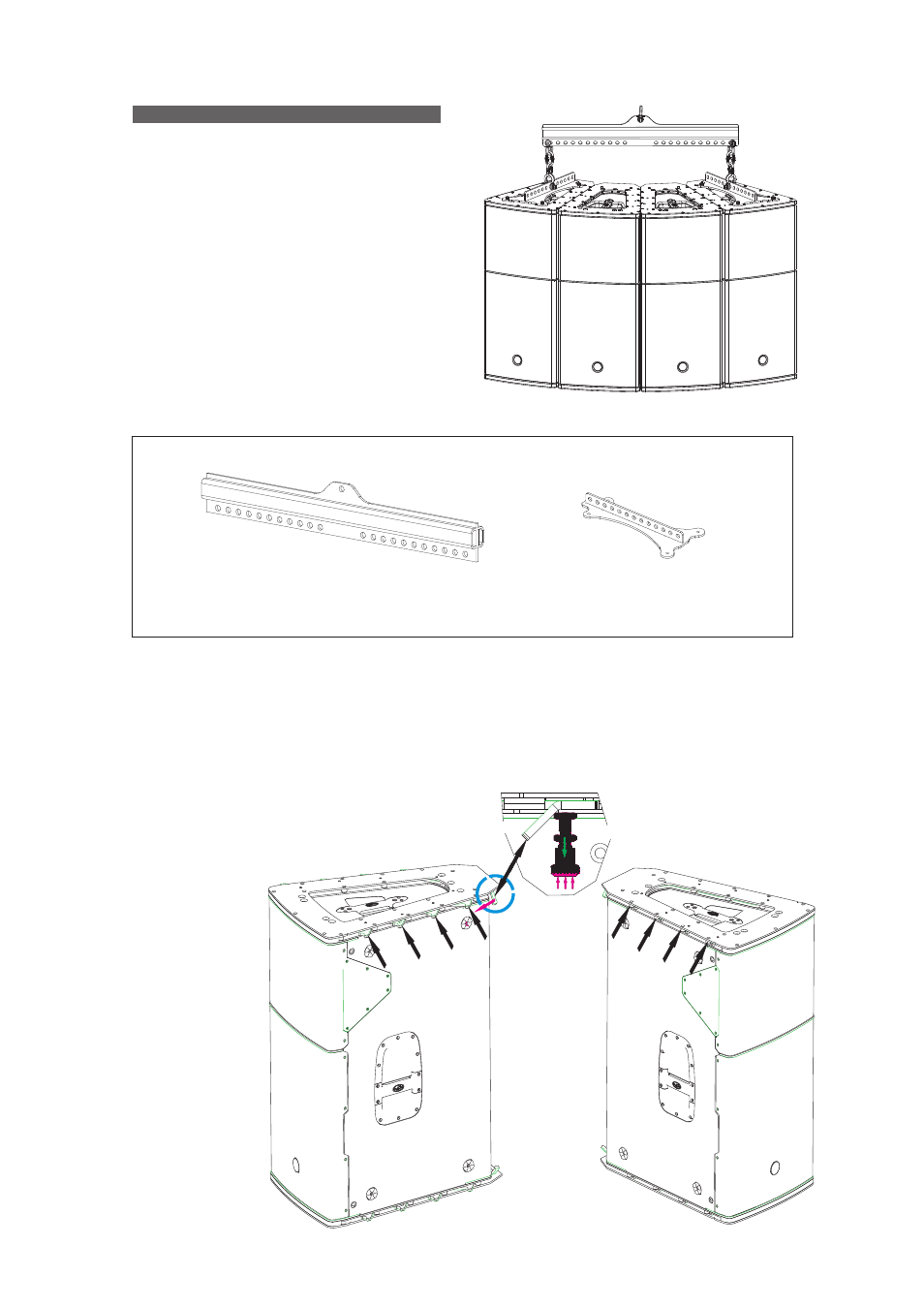

HORIZONTAL ARRAY (‘-RA’ versions)
Cog
Bla
de
Sys
tem
Pin
Handled
Mounting type
UFB
(WLL =
525 kg)
Mounting type accessories required
AXA-CV15H
(4 screws included)
For this mounting type convert1560RA or
convert1590RA are required. It is very simple
because only
UFB and AXA-CV15H rigging
accessories are required for just one lift motor. In
case of using two lift motors, another
UFB will be
needed.
Be conscious that rigging must be performed
by highly skilled workers, with an adequate
knowledge of the equipment and fittings to use.
Workers must also know the local safety
regulations. User is responsible to ensure that
sound
rigging systems (including rigging
accessories) meet state and local regulations in
force.
Firstly, lets see how a rigging system, which is
built into the enclosure, works.
At the rear you will find a safety pin which is
not removable.
If we push the red button and pull it down, a
cog blade system is exposed. This piece will slide
out if we push a handle near the pin (see figure).
Caps
for
the
adja
cent
enclosu
re
to ac
comm
odat
e the
sys
tem
